AsRock Rack B550D4ID-2L2T Deep mini-ITX Server Motherboard AMD Ryzen 5000 Series AM4 (PGA 1331) B550 Dual 1GbE+10GbE – Pappy Mall

SKU: 24433A84

$491.92

11 People watching this product now!

Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

Additional information
brand

AsRock Rack

model

B550D4ID-2L2T

cpu-socket-type

Socket AM4

cpu-type

Supports:AMD Ryzen 5000 and 4000 G-Series Desktop Processors with Radeon GraphicsAMD Ryzen 5000 and 3000 Series Desktop ProcessorsAMD Ryzen PRO 5000

,

4000 and 3000* Series Desktop Processors* Not compatible with AMD Ryzen PRO 3000 Series Desktop Processors with Radeon Graphics

number-of-ddr4-slots

4 x 288-pin

ddr4-standard

DDR4 3200

ecc-supported

Yes

pci-express-4-0-x16

SLOT7: PCIe4.0 x16 [CPU]

sata

4 x SATA 6.0Gb/s

sata-raid

0/1/10

m-2

1 M-key (PCIe4.0 x4 or SATA 6Gb/s)

,

supports 22110 (BTO)*/2280 form factor [CPU]1 M-key (PCIe3.0 x2 or SATA 6Gb/s)

,

supports 2280 form factor (BTO)** [FCH]* M2_1 22110 form factor support is possible by depopulating BMC_SMB and IPMB header and other BOM change** M2_2 support is possible by depopulating BMC_SMB and IPMB header and other BOM change

onboard-video-chipset

Aspeed AST2500

lan-chipset

1 Intel X710-AT2: 2 RJ45 (10GbE)

second-lan-chipset

2 Intel I210: 2 RJ45 (1GbE)

max-lan-speed

1Gbps

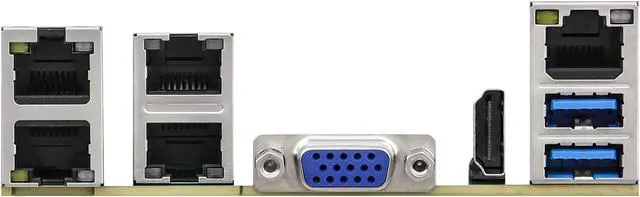

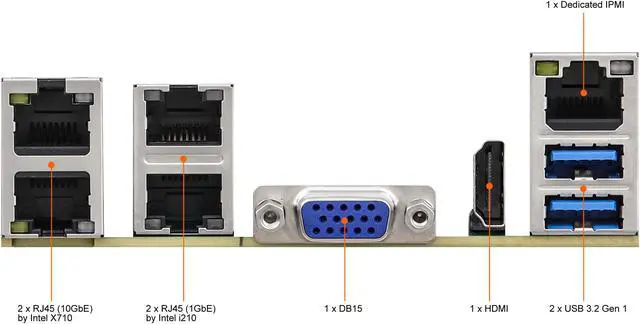

back-i-o-ports

HDMI: 1VGA Port: 1 DB15USB 3.2 Gen1 Port: 2 Type-A (USB3.2 Gen1)Lan Port: 2 RJ45 (10GbE)

,

2 RJ45 (1GbE)Dedicate LAN: 1 dedicated IPMIUID Button/UID LED: 1

other-connectors

COM Header: 1Auxiliary Panel Header: 1 (9-pin): chassis intrusion

,

system fault LED

,

LAN activity LEDTPM Header: 1 (17-pin

,

LPC)

,

1 (13-pin

,

SPI)Thermal Sensor Header: 1IPMB Header: 1PMBus CONN: 1Fan Header: 3 (4-pin)Other Power Connectors: 1 (4-pin) for HDD power when using 12V DC-in power sourceUSB 3.2 (Gen1) Header: 1 (19-pin

,

2 USB3.2 Gen1)NMI Header: 1System Panel: 1 (9-pin): power switch

,

reset switch

,

system power LED

,

HDD activity LEDSpeaker Header: 1BMC_SMB Header: 1Power Connector: 1 (4-pin

,

ATX PSU signal) w

,

ATX 24-pin adapter cable

,

2 (8-pin

,

ATX 12V) support 12V DC-inClear CMOS: 1NC-SI: 1

form-factor

Deep mini-ITX

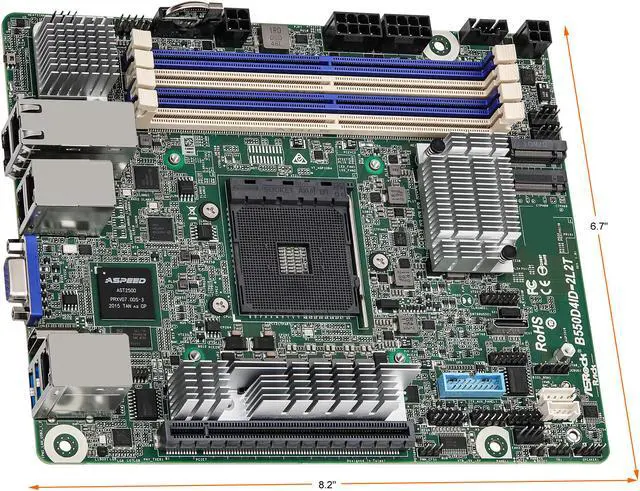

dimensions-w-x-l

6.7" x 8.2"

first-listed-on-newegg

January 19

,

2022
