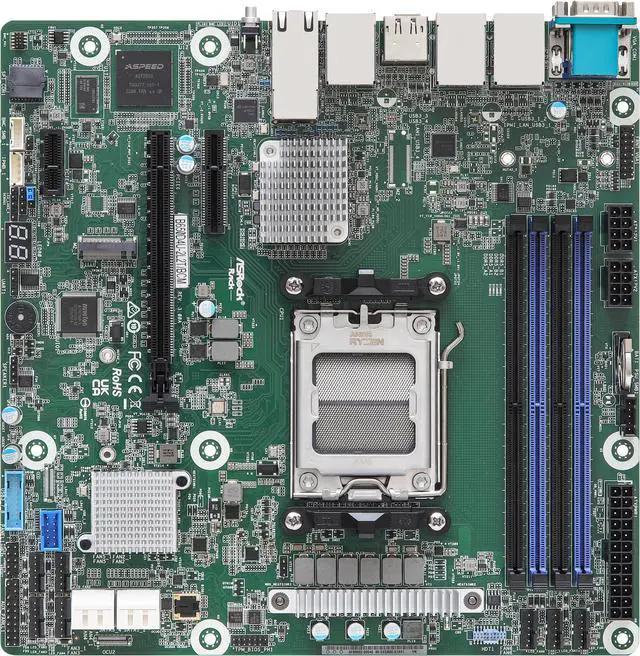

AsRock Rack B650D4U-2L2T/BCM Micro-ATX Server Motherboard Single Socket AMD Ryzen 7000 series Processors (LGA 1718) B650E PCIe 5.0 Dual 10G Lan – Pappy Mall
Original price was: $602.87.$335.34Current price is: $335.34.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| best-seller-ranking |
#88 in Server Motherboards |
|---|---|
| brand |
AsRock Rack |
| model |
B650D4U-2L2T/BCM |
| cpu-socket-type |
Single Socket AM5 (LGA 1718) |
| cpu-type |
Supports AMD EPYC 4004 and AMD Ryzen 8000/7000 Series Processors |
| number-of-processor-support |
1 |
| cpu-features |
Thermal Design Power: Up to 170W by proper cooling solution |
| north-bridge |
AMD B650E |
| memory-slots |
4 DIMM slots (2DPC)DDR5 288-pin ECC/non-ECC UDIMM |
| memory-standard |
5200 MHz (1DPC) ,3600 MHz (2DPC) |
| maximum-memory-supported |
Max. Capacity per DIMM: 48GB |
| ecc-supported |
Yes |
| pci-express-5-0-x16 |
SLOT6: PCIe5.0 x16 [CPU] |
| pci-express-x4 |
SLOT7: PCIe5.0 x4 [CPU] |
| pci-express-x1 |
SLOT4: PCIe4.0 x1 [FCH] |
| sata |
4 x SATA 6.0Gb/s |
| m-2 |
1 M-key (PCIe5.0 x4) ,supports 2280/2242 form factor [CPU] |
| onboard-video-chipset |
Aspeed AST2600 |
| lan-chipset |
Broadcom BCM57416: 2 RJ45 (10GbE) |
| lan-speed |
10Gbps |
| second-lan-chipset |
Intel i210: 2 RJ45 (1GbE) |
| second-lan-speed |
10/100/1000Mbps |
| max-lan-speed |
10Gbps |

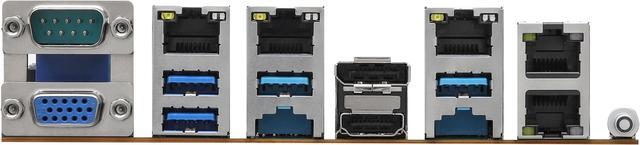

| back-i-o-ports |
UID Button/LED: 1 UID button w ,LEDVGA Port: 1 DB15 (VGA) ,1 DisplayPort ,1 HDMISerial Port: 1 DB9 (COM)USB 3.2 Gen1 Port: 4 Type-A (USB3.2 Gen1)RJ45: 2 RJ45 (10GbE) ,2 RJ45 (1GbE) ,1 dedicated IPMI |
| other-connectors |
Power Connector: 1 (24-pin ,ATX main power) ,2 (8-pin ,ATX 12V)Auxiliary Panel Header: 1 (18-pin): chassis intrusion ,system fault LED ,LAN activity LEDSystem Panel: 1 (9-pin): power switch ,reset switch ,system power LED ,HDD activity LEDVGA header: 1Speaker Header: 1Buzzer: 1Fan Header: 7 (6-pin)TPM Header: 1 (13-pin ,SPI)SMBus header: 1PMBus header: 1IPMB Header: 1Clear CMOS: 1Others: 1 (3-pin ,80 debug port header)Front Lan LED Connector: 1 |
| form-factor |
Micro ATX |
| dimensions-w-x-l |
9.6" x 9.6" |
| first-listed-on-newegg |
March 23 ,2024 |
Reviews
Clear filtersThere are no reviews yet.
