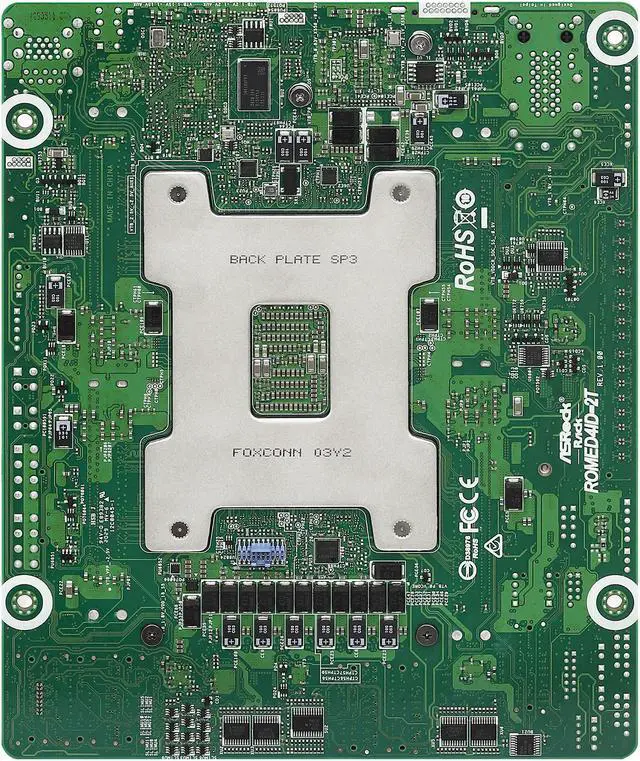

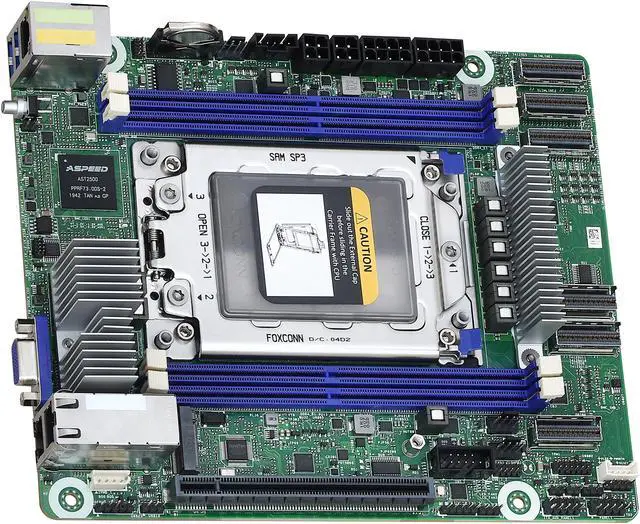

AsRock Rack ROMED4ID-2T Proprietary (Deep mini-ITX) Server Motherboard – Pappy Mall

SKU: 6BADFB75

Original price was: $805.19.Current price is: $624.34.

18 People watching this product now!

Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

Additional information
best-seller-ranking

#43 in Server Motherboards

brand

AsRock Rack

model

ROMED4ID-2T

cpu-socket-type

Socket SP3

cpu-type

Supports AMD EPYC 7003 (with AMD 3D V-Cache Technology*)

,

7002 Series Processors*A BIOS update is required to support AMD EPYC 7003 series processors with AMD 3D V-Cache Technology

number-of-ddr4-slots

4 x 288-pin

ddr4-standard

DDR4 3200

registered

Yes

pci-express-4-0-x16

SLOT 7: PCIe 4.0 x16

m-2

1 x M-key (PCIe4.0 x4/SATA)

,

Form factor: 2280

onboard-video-chipset

Aspeed AST2500

lan-chipset

Intel X550-AT2

lan-speed

10Gbps

max-lan-speed

2 x 10Gbps

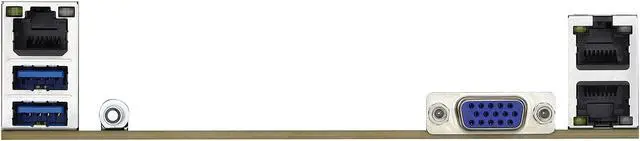

video-ports

D-Sub

rj45

2 x RJ45 (10 GbE)1 x RJ45 Dedicated IPMI LAN port

usb-3-2

2 x USB 3.2 Gen 1

other-connectors

COM Header: 1Auxiliary Panel Header: 1 (9-pin): chassis intrusion

,

system fault LED

,

LAN activity LEDTPM Header: 1 (13-pin

,

LPC)Thermal Sensor Header: 1IPMB Header: 1PMBus CONN: 1Fan Header: 3 (4-pin)HDD PWR: 1 (4-pin

,

12V and 5V) for using 12V DC-in PSUUSB 2.0 Header: 1 (support 2 USB2.0)NMI Header: 1System Panel: 1 (9-pin): power switch

,

reset switch

,

system power LED

,

HDD activity LEDSpeaker Header: 1BMC_SMB Header: 1Power Connector: 1 (4-pin

,

ATX PSU signal and 5Vsb)

,

2 (8-pin

,

ATX 12V) support 12V DC-inClear CMOS: 1 (contact pads)

features

Proprietary

,

6.7" x 8.2"Single Socket SP3 AMD EPYC 7002 series Processors4 DIMMs1 PCIe4.0 x 162 Slimline (PCIe 4.0 x8 or 8 SATA 6Gb/s)

,

4 Slimline (PCIe 4.0 x8)1 M-key (PCIe4.0 x4/SATA)

form-factor

Proprietary (Deep mini-ITX)

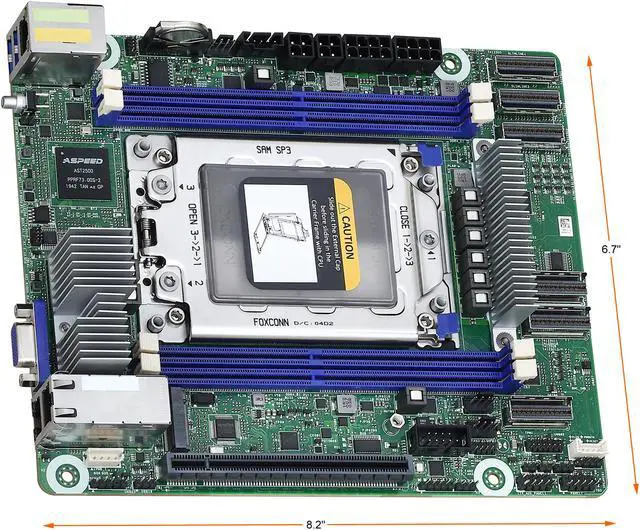

dimensions-w-x-l

6.7" x 8.2"
