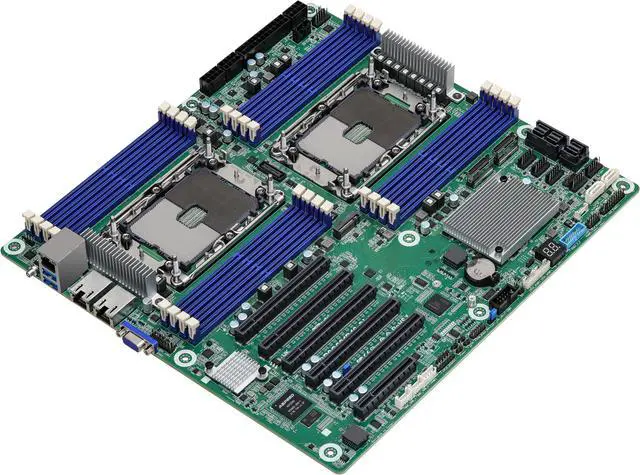

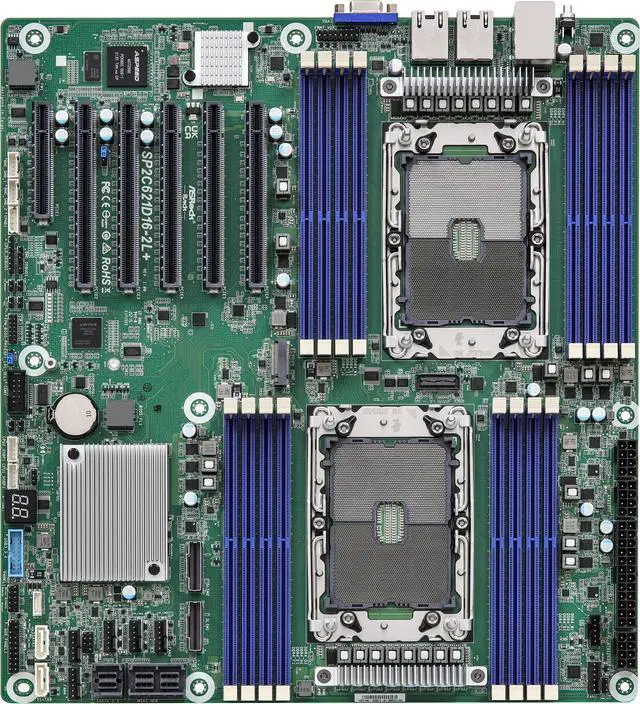

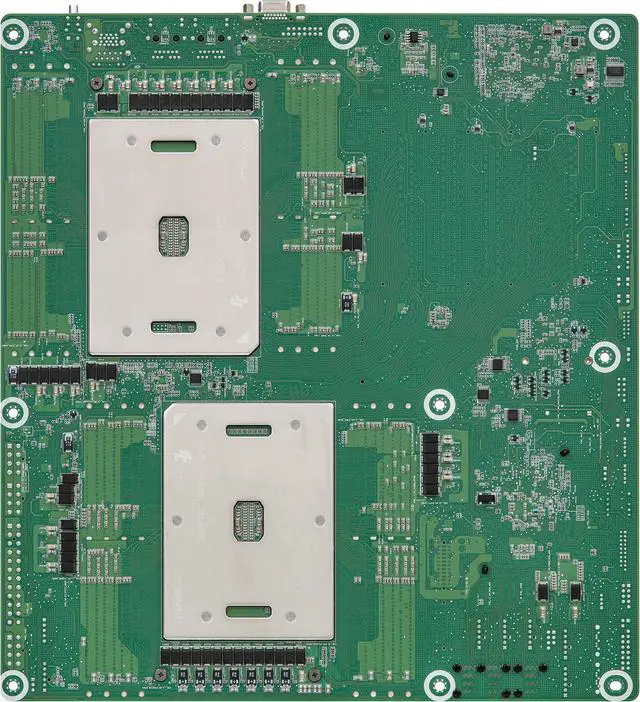

Asrock Rack SP2C621D16-2L+ EEB Server Motherboard Dual Socket 3rd Gen Intel  Xeon Scalable processors P+ (LGA 4189) Dual 1GbE – Pappy Mall

SKU: 0E7D1272

$985.07

17 People watching this product now!

Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

Additional information
best-seller-ranking

#66 in Server Motherboards

brand

ASRock

model

SP2C621D16-2L+

cpu-socket-type

LGA 4189

cpu-type

Intel Xeon

number-of-processor-support

2

north-bridge

Intel C621A

number-of-ddr4-slots

16 x 288-pin

ddr4-standard

DDR4 3200

pci-express-4-0-x16

SLOT6: PCIe4.0 x16 [CPU1]SLOT5: PCIe4.0 x16 [CPU1]SLOT4: PCIe4.0 x16 [CPU1]SLOT3: PCIe4.0 x16 [CPU0]SLOT2: PCIe4.0 x16 [CPU0]

pci-express-x8

SLOT1: PCIe4.0 x8 [CPU0]

sata

14 x SATA 6.0Gb/s

sata-raid

0/1/5/10

sas

2 SlimSAS (PCIe4.0 x8) [CPU0]

m-2

1 M-key (PCIe4.0 x4)

,

Support 22110/2280 form factor [CPU0]

onboard-video-chipset

Aspeed AST2500

lan-chipset

Intel I350-AM2

lan-speed

10/100/1000Mbps

max-lan-speed

1Gbps

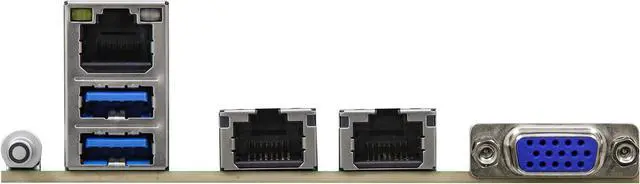

back-i-o-ports

1 x D-Sub

,

2 x LAN (RJ45)

,

2 x USB 3.2 Gen 1 Type-A

other-connectors

Power Connector: 1 (24-pin

,

ATX main power)

,

3 ( 8-pin

,

ATX 12V)Auxiliary Panel Header: 1 (18-pin): chassis intrusion

,

system fault LED

,

LAN1/LAN2 activity LED

,

locate

,

SMBusSystem Panel: 1 (9-pin): power switch

,

reset switch

,

system power LED

,

HDD activity LEDCOM Header: 1VGA header: 1Fan Header: 6 (6-pin)TPM Header: 1 (13-pin

,

SPI)VROC header: 1SGPIO Header: 1HSBP: 2SMBus header: 2PMBus header: 1IPMB Header: 1Clear CMOS: 1 (contact pads)ME/SPS Recovery: 1USB 3.2 (Gen1) Header: 1 (19-pin

,

2 USB3.2 Gen1)NMI Header: 1

form-factor

EEB

dimensions-w-x-l

12" x 13"

first-listed-on-newegg

October 26

,

2022
