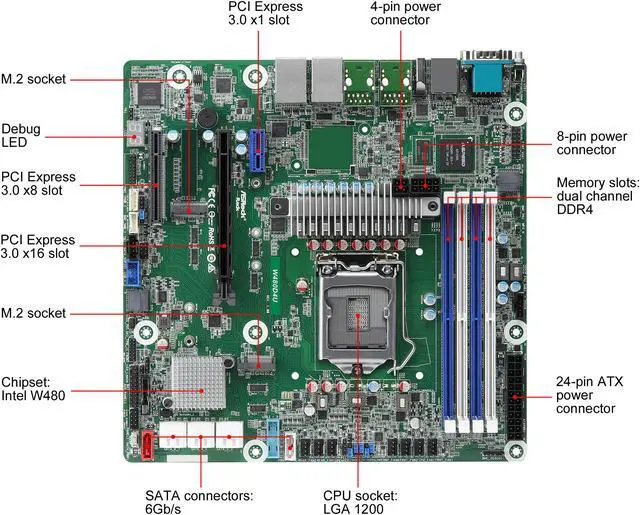

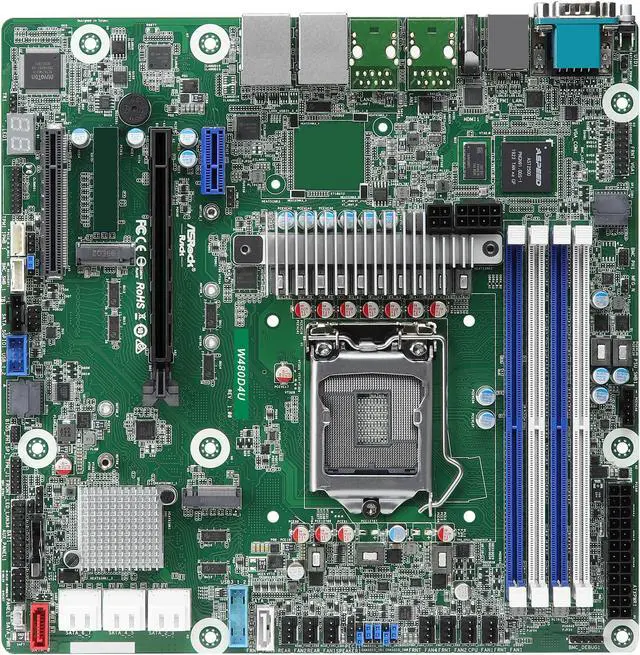

AsRock Rack W480D4U mATX Server Motherboard Intel LGA 1200 Xeon W-1200 00 W480 – Pappy Mall
$314.74
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| best-seller-ranking |
#94 in Server Motherboards |
|---|---|
| brand |
AsRock Rack |
| model |
W480D4U |
| cpu-socket-type |
LGA 1200 |
| cpu-type |
Supports Intel Xeon W-1200 ,Intel 10th Gen Intel Core Processors |
| north-bridge |
Intel W480 |
| number-of-ddr4-slots |
4 x 288-pin |
| ddr4-standard |
2933*/2666/2400 MHz*2933 MHz support varies by CPU. |
| channel-supported |
Dual Channel |
| ecc-supported |
ECC Memory (ECC mode) support varies by CPU. |
| pci-express-3-0-x16 |
Slot 6: Gen3 x16 link ,auto switch to x8 link if Slot 4 is occupied (Physical x16 ,EE x16/x8 (from CPU) ,shared with Slot 4) |
| pci-express-x8 |
Slot 4: Gen3 x8 link (Physical x8 ,EE x0/x8 (from CPU) ,shared with Slot 6) |
| pci-express-x1 |
Slot 7: Gen3 x1 link (Physical x1 ,EEx1 (from PCH)) |
| sata |
8 x SATA 6Gb/s (SATA0-7 ,SATA_0 supports SATA DOM) |
| m-2 |
2 (M2_1: 22110/2280/2260 ,Supports PCIe 3.0(x4) ,M2_2:2280/2260 ,Supports PCIe 3.0(x4)) |
| onboard-video-chipset |
Aspeed AST2500 |
| lan-chipset |
Intel I210 |
| lan-speed |
10/100/1000Mbps |
| second-lan-chipset |
RTL8211E |
| second-lan-speed |
10/100/1000Mbps |

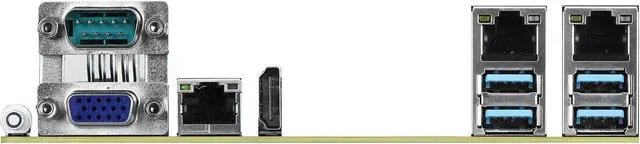

| video-ports |
1 x HDMI ,1 x D-Sub |
| rj45 |
3 x RJ45 |
| usb-3-1 |
2 x USB 3.1 Gen1 Port Type-A (5Gbps)2 x USB 3.1 Gen2 Port Type-A (10Gbps) |
| other-connectors |
SATA DOM: 1Auxiliary Panel Header: 1 (18-pin): chassis intrusion ,system fault LED ,LAN1/LAN2 activity LED ,locate ,SMBusTPM Header: 1 (17-pin ,LPC)* ,1 (13-pin ,SPI)*support LPC interface TPM module by default. Please contact ASRock Rack sales for SPI interface TPM module support.Thermal Sensor Header: 1IPMB Header: 1VGA Header: 1PMBus CONN: 1Buzzer: 1Fan Header: 7 (4-pin)USB 3.1 (Gen1) Header: 1 (supports 2 USB 3.2 Gen1 ports)USB 2.0 Header: 1 (supports 2 USB 2.0 ports)Thunderbolt AIC Connector: 1 (BTO)System Panel: 1 (9-pin): power switch ,reset switch ,system power LED ,HDD activity LEDSpeaker Header: 1BMC_SMB Header: 1SGPIO Header: 1Power Connector: 24-pin (ATX) ,8-pin (12V) ,4pin (12V)ME/SPS Recovery: 1Clear CMOS: 1 (contact pads) |
| form-factor |
Micro ATX |
| dimensions-w-x-l |
9.6" x 9.6" |
| first-listed-on-newegg |
July 16 ,2020 |
