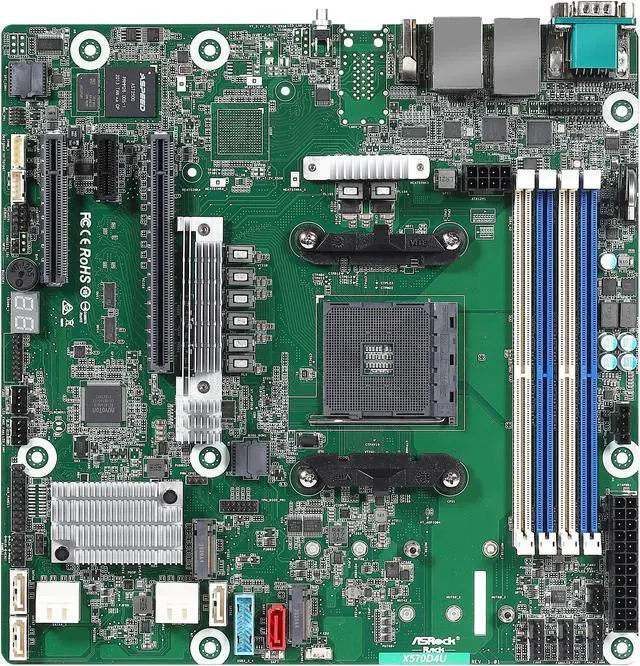

AsRock Rack X570D4U micro-ATX Server Motherboard AMD AM4 PGA 1331 Dual GLAN – Pappy Mall
$376.58
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| best-seller-ranking |
#11 in Server Motherboards |
|---|---|
| brand |
AsRock Rack |
| model |
X570D4U |

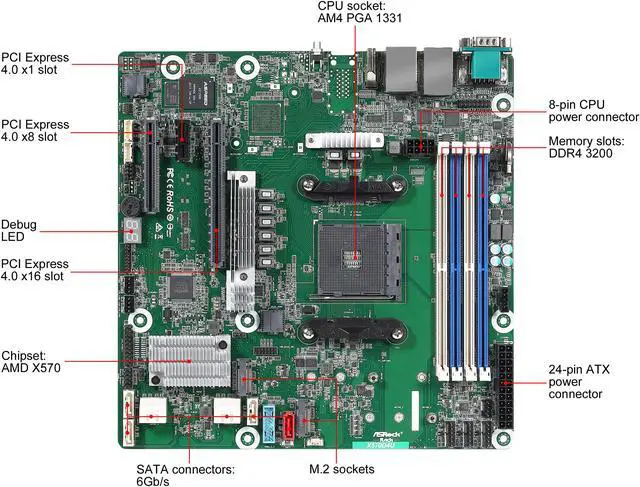

| cpu-socket-type |
Socket AM4 |
| cpu-type |
Supports:AMD Ryzen 5000 ,4000 and 3000 G-Series Desktop Processors with Radeon GraphicsAMD Ryzen 5000 and 3000 Series Desktop ProcessorsAMD Ryzen PRO 5000 ,4000 and 3000 Series Desktop Processors |
| north-bridge |
AMD X570 |
| number-of-ddr4-slots |
4 x 288-pin |
| ddr4-standard |
DDR4 3200 |
| ecc-supported |
Yes |
| pci-express-4-0-x16 |
SLOT6: Latch PCIe x16 (PCIe 4.0 x16)* [CPU] ,auto switch to PCIe4.0 x8 when SLOT4 is occupied*Supports PCIe3.0 x8 when using 2nd Gen AMD Ryzen Processors with Radeon Graphics |
| pci-express-x8 |
SLOT4: Open-end PCIe x8 (PCIe 4.0 x8)* [CPU]*Disabled when using 2nd Gen AMD Ryzen Processors with Radeon Graphics |
| pci-express-x1 |
SLOT5: PCIe 4.0 x1**Supports PCIe3.0 when using 2nd Gen AMD Ryzen Processors with Radeon Graphics |
| sata |
12 x SATA 6.0Gb/s |
| sata-raid |
0/1/10 |
| additional-raid-controller |
X570 (12 SATA 6Gb/s ,support RAID 0/1/10):8 SATA 7-pin connectors ,including 1 support SATA DOM4 SATA via optional M2-HD M.2 device |
| m-2 |
1 M-key (PCIe4.0* x4 or SATA 6Gb/s) ,Form factor: 22110/2280/2260/2242 [CPU]1 M-key (PCIe4.0* x4 or SATA 6Gb/s) ,Form factor: 2280/2260/2242 [X570]*Supports PCIe3.0 when using 2nd Gen AMD Ryzen Processors with Radeon Graphics |
| onboard-video-chipset |
Aspeed AST2500 |
| lan-chipset |
Intel I210 |
| lan-speed |
10/100/1000Mbps |
| max-lan-speed |
10Gbps |
| com |
1 |

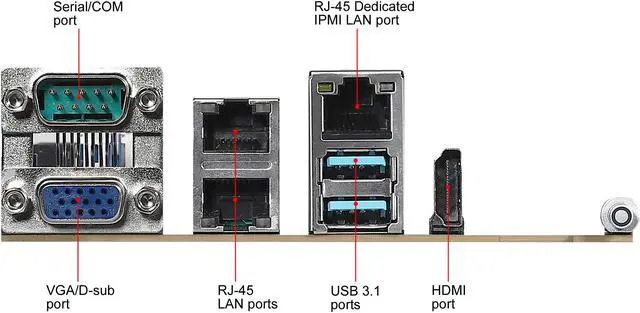

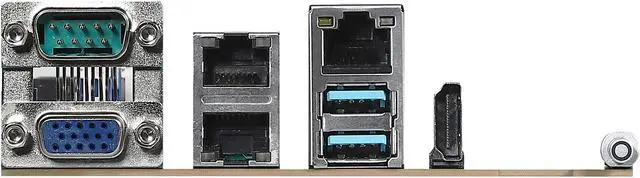

| video-ports |
1 x HDMI + 1 x VGA |
| rj45 |
2 x RJ45 |
| usb-3-1 |
2 x USB 3.1 |
| other-connectors |
Front Lan LED Connector: 1 for LAN3/LAN4Auxiliary Panel Header: 1 (18-pin): chassis intrusion ,system fault LED ,LAN1/LAN2 activity LED ,locate ,SMBusTR1 Header: 1TPM Header: 1 (17-pin ,LPC) ,1 (13-pin ,SPI)IPMB Header: 1VGA Header: 1PMBus CONN: 1Buzzer: 1Fan Header: 3 (6-pin) ,3 (4-pin)Front Panel: 1 (9-pin): power switch ,reset switch ,system power LED ,HDD activity LEDSpeaker Header: 1BMC_SMB Header: 1Power Connector: 1 ATX main power (24-pin) ,1 ATX 12V (8-pin)Clear CMOS: 1 contact pads |
| form-factor |
Micro ATX |

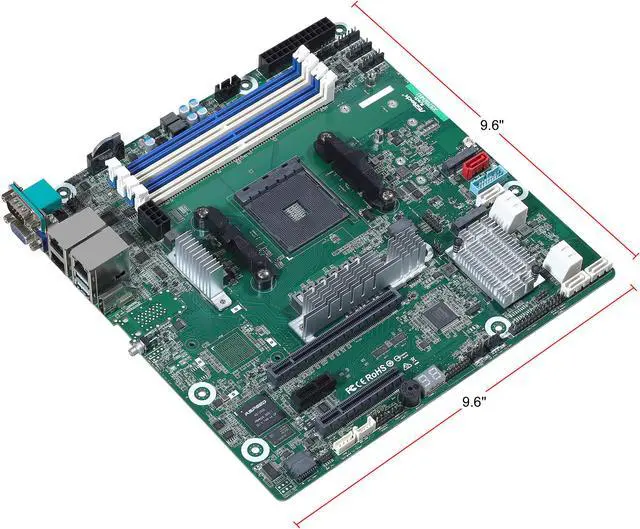

| dimensions-w-x-l |
9.6" x 9.6" |
| first-listed-on-newegg |
September 29 ,2020 |
