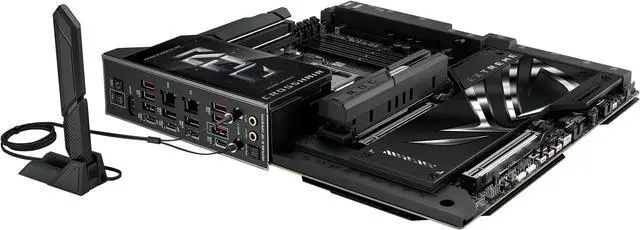

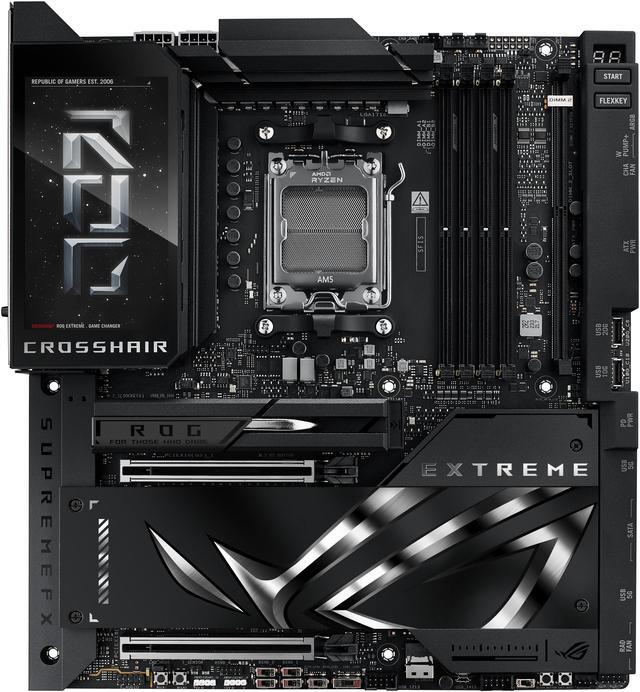

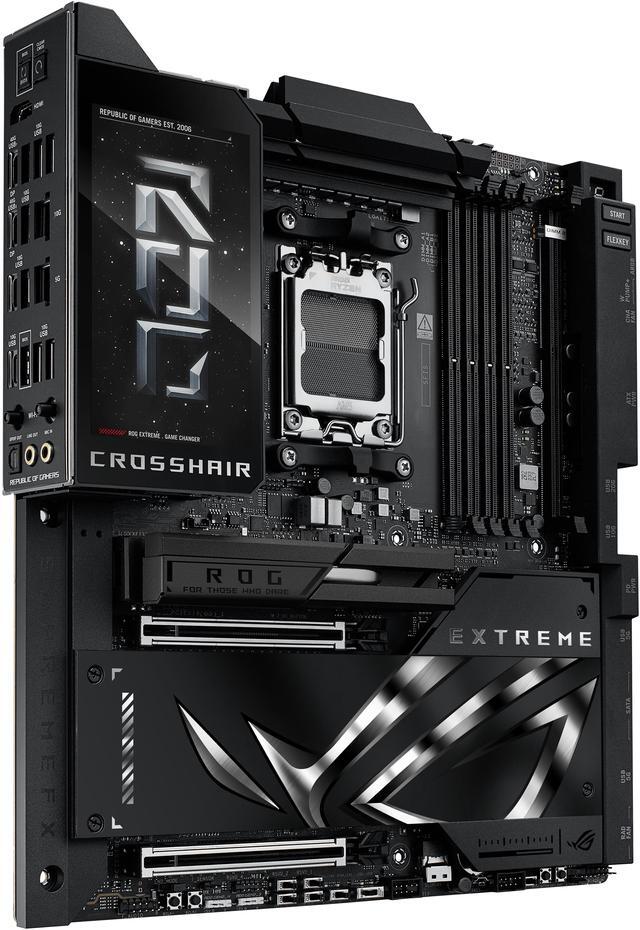

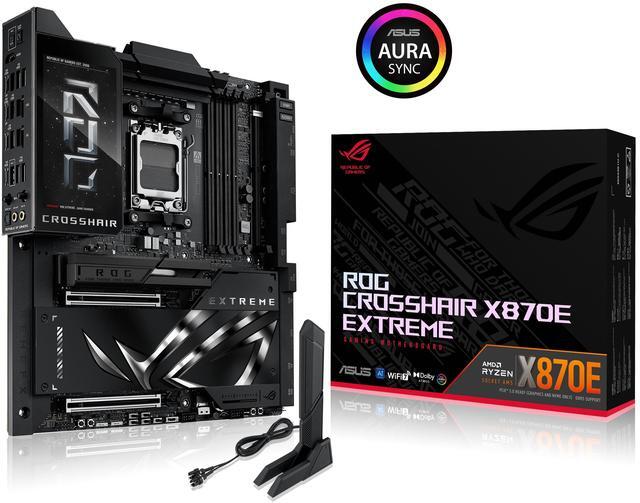

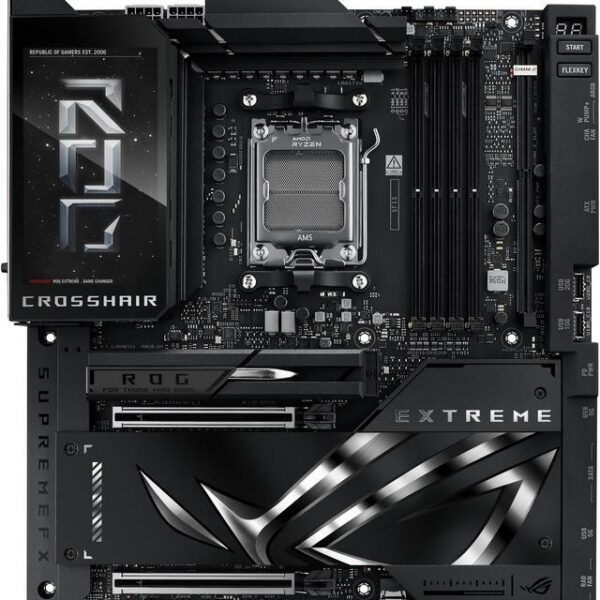

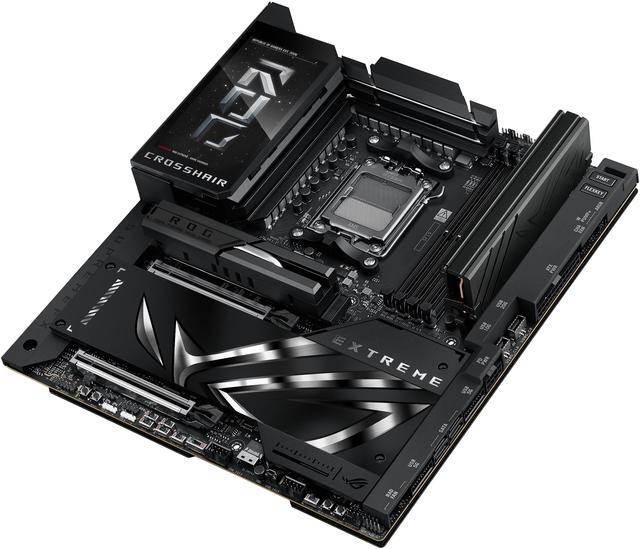

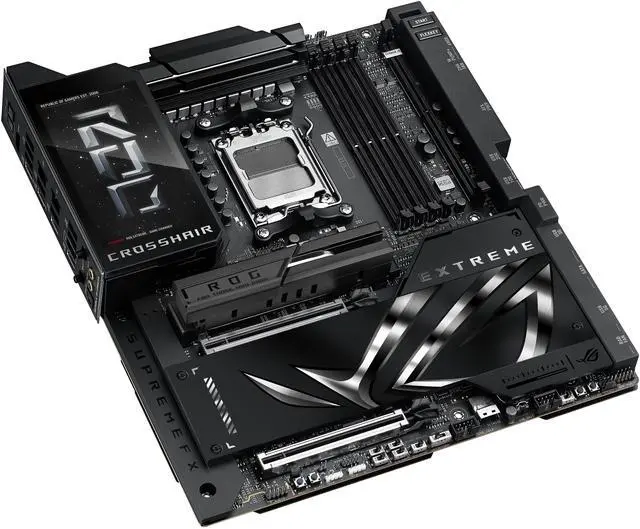

ASUS CROSSHAIR X870E EXTREME Extended ATX Motherboard – Pappy Mall
Original price was: $1,238.76.$1,113.67Current price is: $1,113.67.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| best-seller-ranking |
#27 in AMD Motherboards |
|---|---|
| brand |
ASUS |
| series |
ROG |
| model |
CROSSHAIR X870E EXTREME |
| part-number |
90MB1LB0-MVAAY0 |
| cpu-socket-type |
AM5 |
| cpu-type |
Supports up to8200+MT/s(OC) with Ryzen 9000 Series Processors8600+MT/s(OC) with Ryzen 8000 Series Processors8000+MT/s(OC) with Ryzen 7000 Series Processors |
| chipset |
AMD X870E |
| number-of-memory-slots |
4x288pin (DDR5) |
| memory-standard |
DDR5 4400 ,DDR5 4800 ,DDR5 5000 ,DDR5 5200 ,DDR5 5400 ,DDR5 5600 ,DDR5 5800 ,DDR5 6000 ,DDR5 6200 ,DDR5 6400 ,DDR5 6600 ,DDR5 6666 ,DDR5 6800 ,DDR5 7000 ,DDR5 7200 ,DDR5 7400 ,DDR5 7600 ,DDR5 7800 ,DDR5 7900 ,DDR5 7950 ,DDR5 8000 ,DDR5 8200 ,DDR5 8266 ,DDR5 8333 ,DDR5 8400 ,DDR5 8600 |
| maximum-memory-supported |
256GB |
| channel-supported |
Dual Channel |
| ecc-supported |
Non-ECC |
| memory-feature |
ASUS Enhanced Memory Profile (AEMP)NitroPath DRAM Technology |
| pci-express-5-0-x16 |
AMD Ryzen 9000 & 7000 Series Desktop Processors*2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2 ,PCIEX16(G5)_1 and PCIEX16(G5)_2 will run x8. ***When M.2_3 is enabled ,PCIEX16(G5)_1 will run x8 ,and PCIEX16(G5)_2 will run x4.**** When M.2_2 and M.2_3 are enabled simultaneously ,PCIEX16(G5)_2 will be disabled. |
| pci-express-4-0-x16 |
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8 ,PCIEx16(G5)_2 will be disabled)AMD Ryzen 8500 & 8300 Series Desktop Processors*2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x4 ,PCIEx16(G5)_2 will be disabled) |
| serial-ata-sata |
4 x SATA 6Gb/s |
| m-2 |
AMD Ryzen 9000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M) ,type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M) ,type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*M.2_3 slot (Key M) ,type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**AMD Ryzen 8000 Series Desktop ProcessorsM.2_1 slot (Key M) ,type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)M.2_2 slot (Key M) ,type 2242/2260/2280 (Not supports)M.2_3 slot (Key M) ,type 2242/2260/2280/22110 (Not supports)AMD X870E ChipsetDIMM.2_1 slot (Key M) via ROG Q-DIMM.2 ,type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG Q-DIMM.2 ,type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately. * When M.2_2 and M.2_3 are enabled simultaneously ,PCIEX16(G5)_2 will be disabled. ** When M.2_3 is enabled ,PCIEX16(G5)_1 will run x8 ,and PCIEX16(G5)_2 will run x4 ,M.2_2 will be disabled. |
| sata-raid |
0/1/5/10 |
| audio-channels |
Audio Features – SupremeFX Shielding Technology- ESS ES9219 QUAD DAC- LED-illuminated audio jacks- Rear optical S/PDIF out port- Premium audio capacitors* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio ,make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
| lan-chipset |
1 x Realtek 5Gb Ethernet |
| second-lan-chipset |
1 x Marvell AQtion 10Gb Ethernet |
| max-lan-speed |
10Gbps |
| wireless-lan |
Wi-Fi 802.11 be |
| bluetooth |
Bluetooth 5.4 |

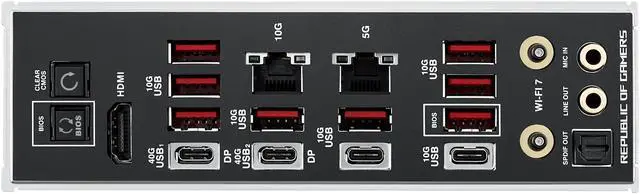

| back-i-o-ports |
2 x USB4 (40Gbps) ports (2 x USB Type-C)10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C)1 x HDMI port1 x Wi-Fi Module1 x Realtek 5Gb Ethernet port1 x Marvell AQtion 10Gb Ethernet port2 x LED-illuminated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack button 1 x Clear CMOS button |
| onboard-usb |
1 x USB 20Gbps connector (supports USB Type-C)1 x USB 10Gbps connector (supports USB Type-C)2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| other-connectors |
Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header2 x 4-pin Chassis Fan headers2 x 4-pin Radiator Fan headers2 x W_PUMP+ headers1 x VRM Heatsink Fan headerMiscellaneous1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers2 x Addressable Gen 2 header1 x Alteration PCIe mode switch2 x BCLK button1 x BIOS Switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO)1 x LN2 Mode jumper 12 x ProbeIt Measurement Points1 x ReTry button2 x RSVD switchs1 x RSVD header1 x Safe Boot button1 x Slow Mode switch 1 x Start button1 x 10-1 pin System Panel header1 x Thermal Sensor header1 x Pause switch |
| form-factor |
Extended ATX |
| dimensions-w-x-l |
12.0" x 10.9" |
| power-pin |
1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connector1 x 8-pin PCIe Power connector |
| bios-feature |
2 x 256 Mb Flash ROM ,UEFI AMI BIOS |
| software |
ROG Exclusive Software- ROG CPU-Z- Dolby Atmos- Internet Security (1-year full version)ASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (1 year full version)- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- GameFirst- HWiNFO- Power Saving- LCD DisplayASUS AI AdvisorASUS DriverHubTurbo VcoreASUS GlideXUSB Wattage WatcherWinRAR (40 Days Free Trial)Adobe Creative Cloud (Free Trial)UEFI BIOSAI Overclocking GuideASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyFlexKey |
| windows-11 |
Supported |
| first-listed-on-newegg |
May 08 ,2025 |
