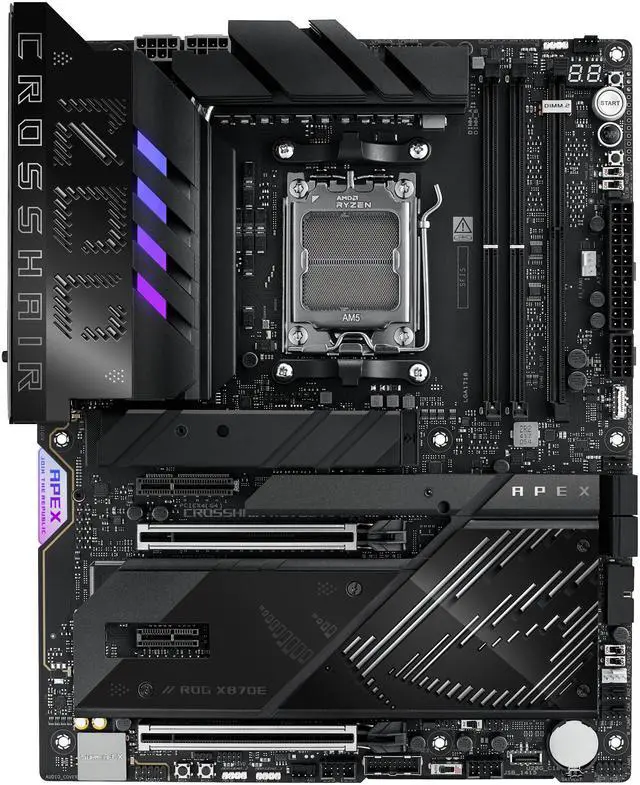

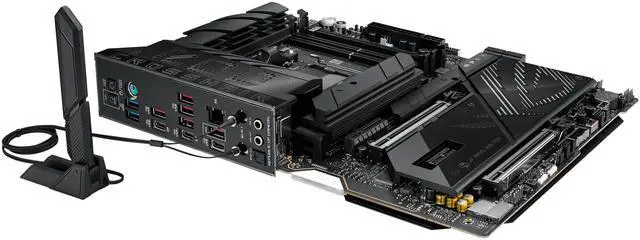

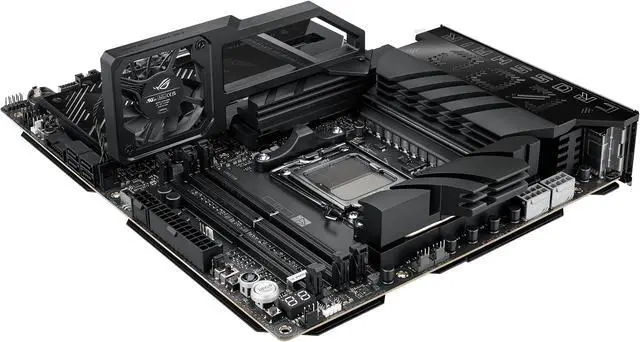

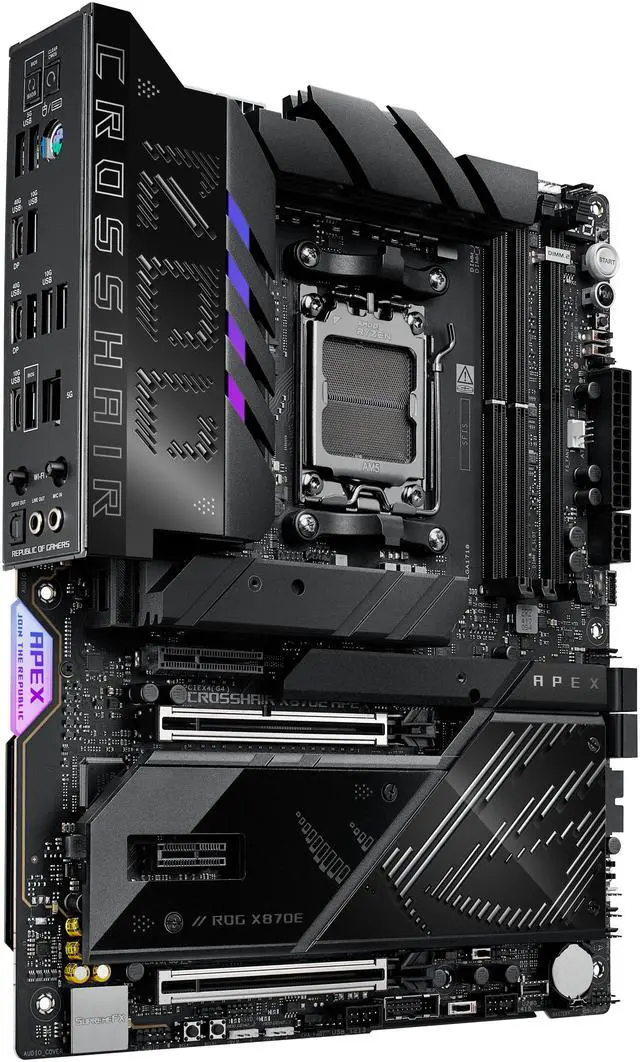

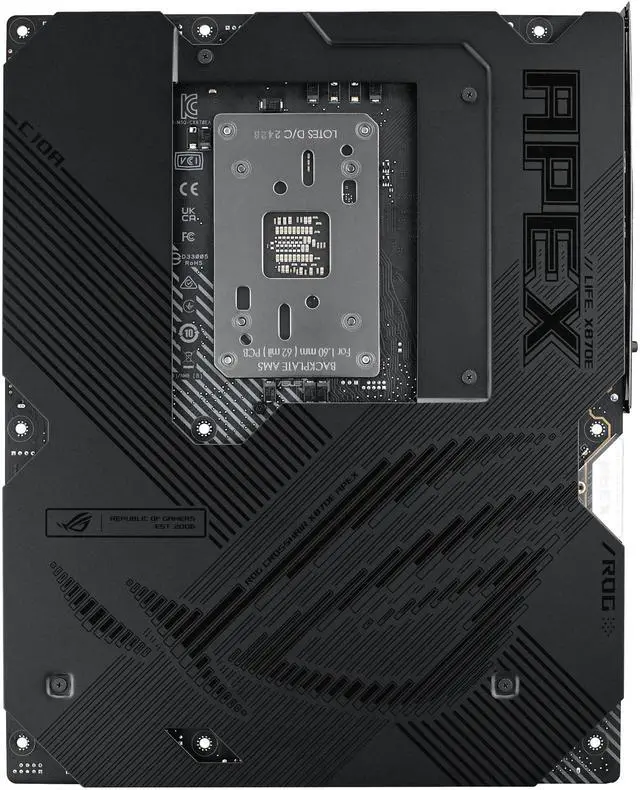

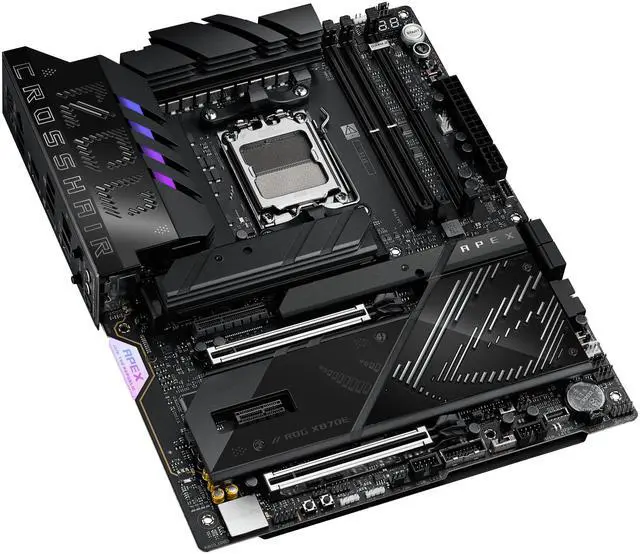

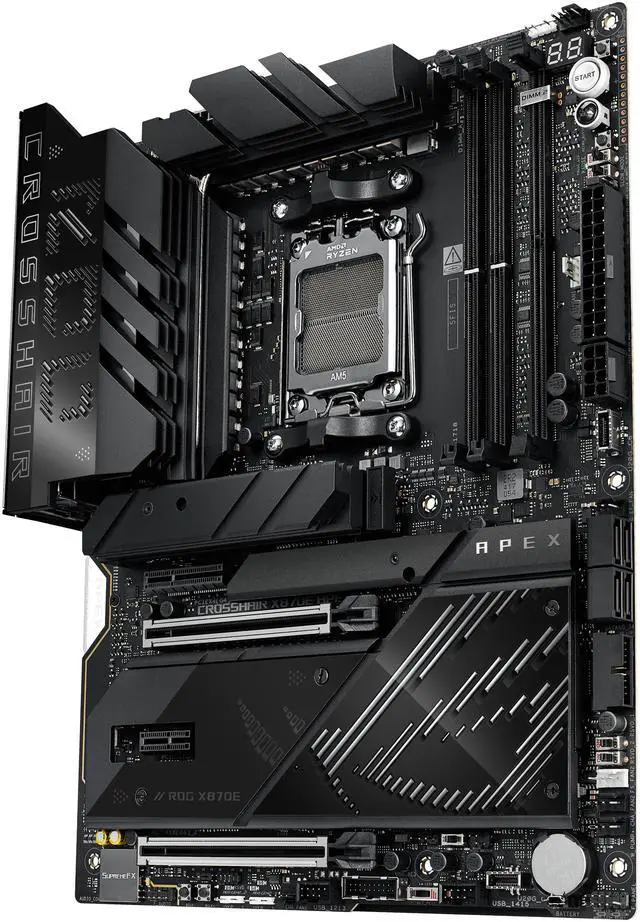

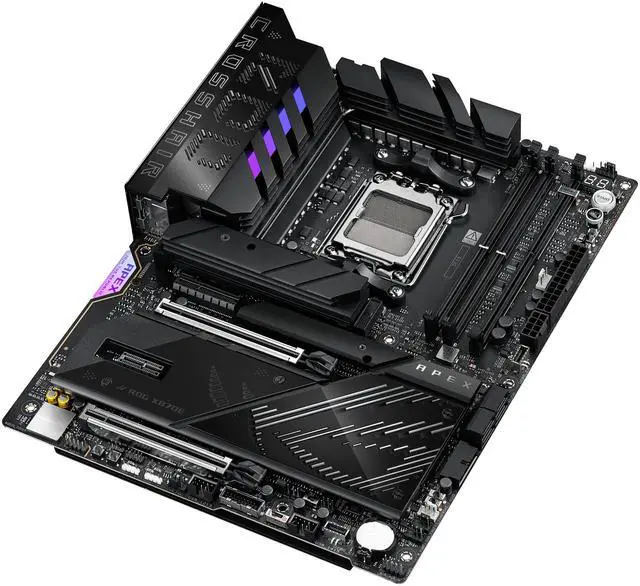

ASUS ROG CROSSHAIR X870E APEX – Pappy Mall
Original price was: $929.08.$865.91Current price is: $865.91.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| best-seller-ranking |
#63 in AMD Motherboards |
|---|---|
| brand |
ASUS |
| series |
ROG |
| model |
ROG CROSSHAIR X870E APEX |
| part-number |
90MB1KR0-MVAAY0 |
| cpu-socket-type |
AM5 |
| cpu-type |
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors** Refer to https://www.asus.com/support/download-center ,for CPU support list. |
| chipset |
AMD X870E |
| number-of-memory-slots |
2x288pin (DDR5) |
| memory-standard |
2 x DIMM slots ,max. 128GB ,DDR5 Supports up to8200+MT/s(OC) with Ryzen™ 9000 Series Processors,9600+MT/s(OC) with Ryzen™ 8000 Series Processors8000+MT/s(OC) with Ryzen™ 7000 Series Processors,ECC and Non-ECC ,Un-buffered DIMM*Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™)ASUS Enhanced Memory Profile (AEMP)* Supported memory types ,data rate (speed) ,and number of DRAM modules vary depending on the CPU and memory configuration ,for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.* Non-ECC ,un-buffered DDR5 memory supports On-Die ECC function. |
| maximum-memory-supported |
128GB |
| ecc-supported |
Non-ECC |
| pci-express-5-0-x16 |
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)** When you use both PCIEX16_1 and PCIEX16_2 ,PCIEX16_1 and PCIEX16_2 will run x8. ***When M.2_3 are enabled ,PCIEX16_1 will run x8 ,and PCIEX16_2 will run x4.**** When M.2_2 and M.2_3 are enabled simultaneously ,PCIEX16_2 will be disabled. |
| pci-express-4-0-x16 |
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8 ,PCIEx16_2 will be disabled)AMD Ryzen™ 8500 & 8300 Series Desktop Processors*2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4 ,PCIEx16_2 will be disabled)AMD X870E Chipset1 x PCIe 4.0 x4 slot1 x PCIe 3.0 x1 slot* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).- To ensure compatibility of the device installed ,please refer to https://www.asus.com/support ,for the list of supported |
| serial-ata-sata |
4 x SATA 6Gb/s |
| m-2 |
Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*AMD Ryzen™ 9000 & 7000 Series Desktop Processors***M.2_1 slot (Key M) ,type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M) ,type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_3 slot (Key M) ,type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD Ryzen™ 8000 Series Desktop ProcessorsM.2_1 slot (Key M) ,type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_2 slot (Key M) ,type 2242/2260/2280 (Not supports)M.2_3 slot (Key M) ,type 2242/2260/2280 (Not supports)AMD X870E ChipsetDIMM.2_1 slot (Key M) ,type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)DIMM.2_2 slot (Key M) ,type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports** When M.2_2 and M.2_3 are enabled simultaneously ,PCIEX16_2 will be disabled. ***When M.2_3 are enabled ,PCIEX16_1 will run x8 ,and PCIEX16_2 will run x4 ,M.2_2 will be disabled.AMD RAIDXpert2 TechnologyRyzen™ 9000 Series Processors: RAID 0/1/5/10Ryzen™ 8000 Series Processors: RAID 0/1Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| sata-raid |
0/1/5/10 |
| audio-channels |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*- Impedance sense for front and rear headphone outputs- Supports: Jack-detection ,Multi-streaming ,Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panelAudio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Gold-plated audio jacks- Rear optical S/PDIF out port- Premium audio capacitors- Audio cover* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio ,make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
| second-lan-chipset |
1 x Realtek 5Gb EthernetASUS LANGuard |
| max-lan-speed |
5Gbps |
| wireless-lan |
Wi-Fi 7*2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band**Supports Wi-Fi 7 320MHz bandwidth ,up to 6.5Gbps transfer rate.Bluetooth® v5.4****Wi-Fi features may vary depending on the operating systemFor Windows 11 ,Wi-Fi 7 will require 24H2 or later version for full functions ,Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.For Windows 10 ,please note that no driver is available ,refer to the Wi-Fi chipset vendor's website for details.** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.*** The Bluetooth® version may vary ,please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| bluetooth |
Yes |

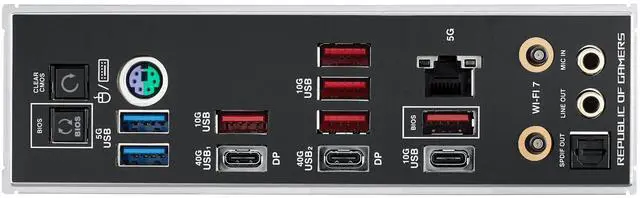

| back-i-o-ports |
2 x USB4® (40Gbps) ports (2 x USB Type-C®)6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A)1 x Wi-Fi module1 x Realtek 5Gb Ethernet port1 x PS/2 keyboard/mouse combo port 2 x Gold-plated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| other-connectors |
Fan and Cooling Related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header2 x 4-pin Chassis Fan headers2 x 4-pin Full Speed Fan headers1 x W_PUMP+ header1 x Extra Flow Fan headerPower Related 1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectors1 x 8-pin PCIe Power connectorStorage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 2 x USB 20Gbps connectors (support USB Type-C® ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous1 x 80 Light Bar jumper3 x Addressable Gen2 headers1 x Alteration PCIe mode switch2 x BCLK button1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO)1 x LN2 Mode jumper 1 x Pause switch12 x ProbeIt Measurement Points1 x ReTry button2 x RSVD switches1 x RSVD_4 header1 x Safe Boot button1 x Slow Mode switch 1 x Start button1 x 10-1 pin System Panel header1 x Thermal Sensor header |
| form-factor |
ATX |
| dimensions-w-x-l |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| windows-11 |
Supported |
| first-listed-on-newegg |
March 12 ,2025 |
