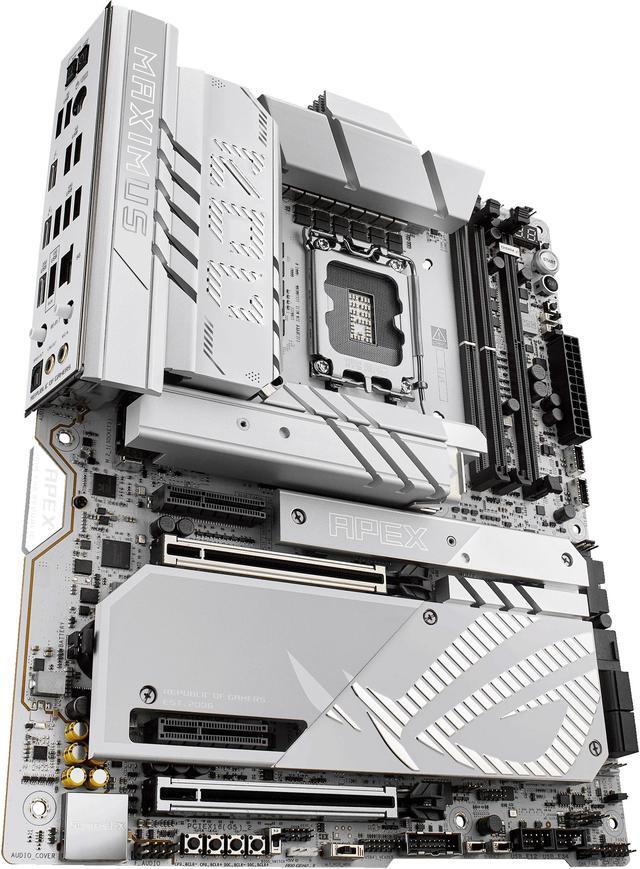

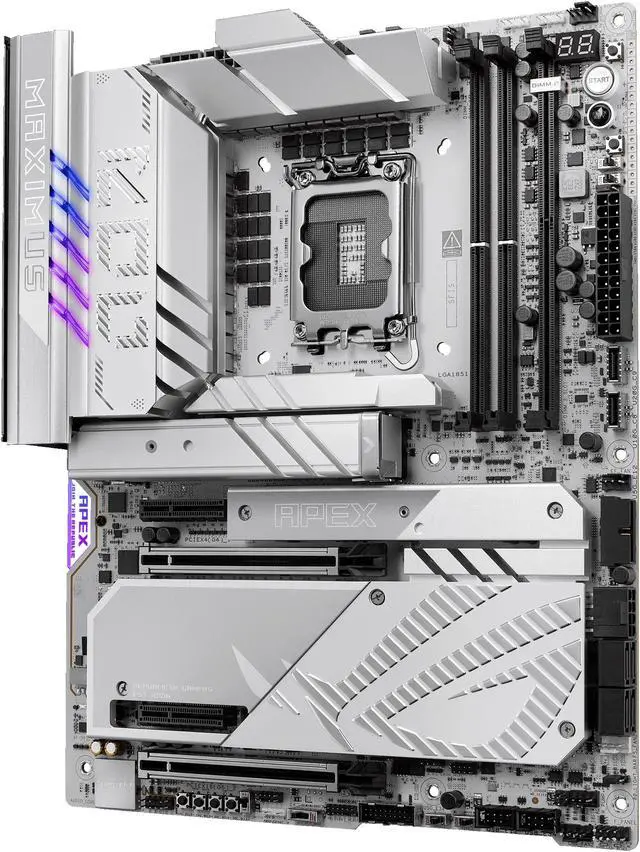

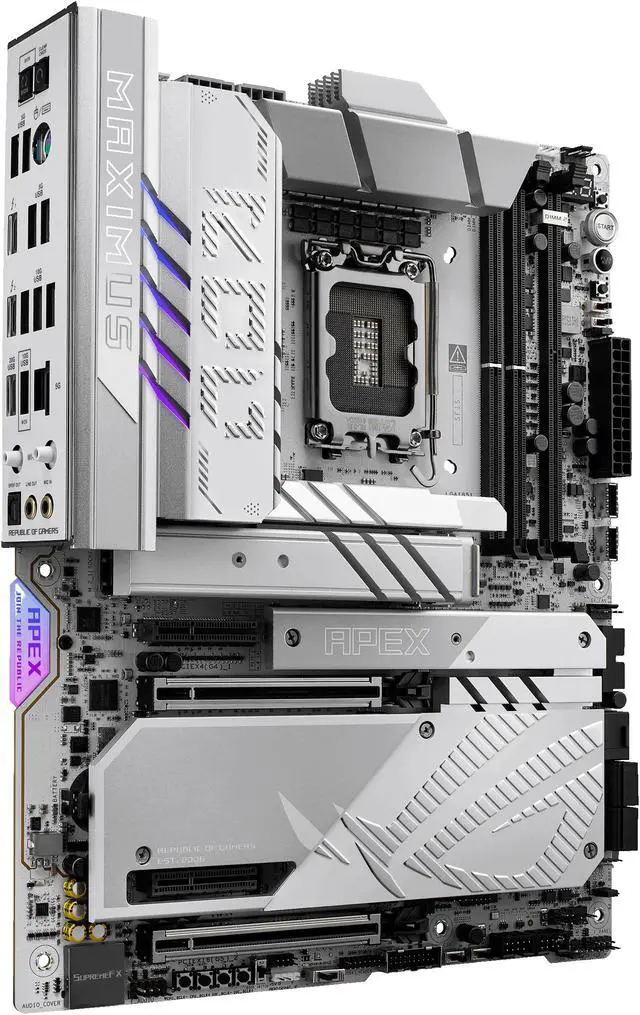

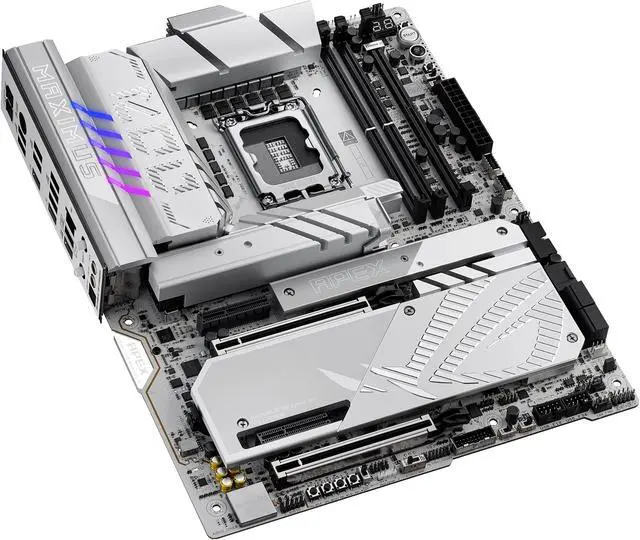

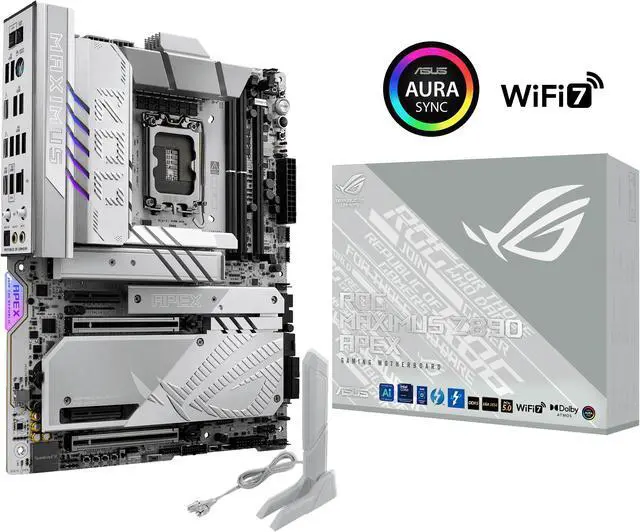

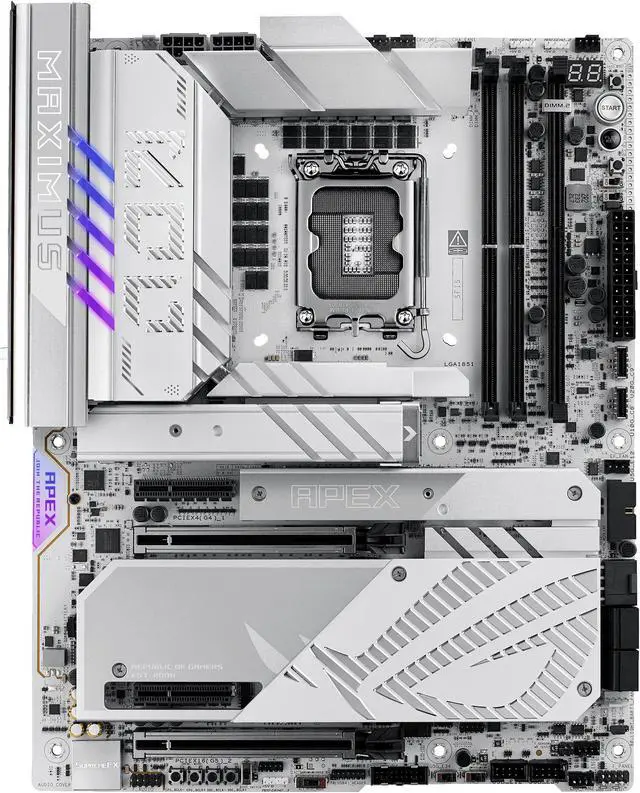

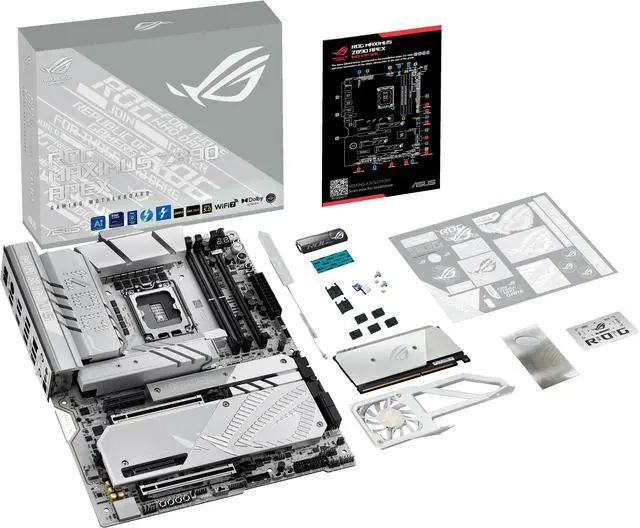

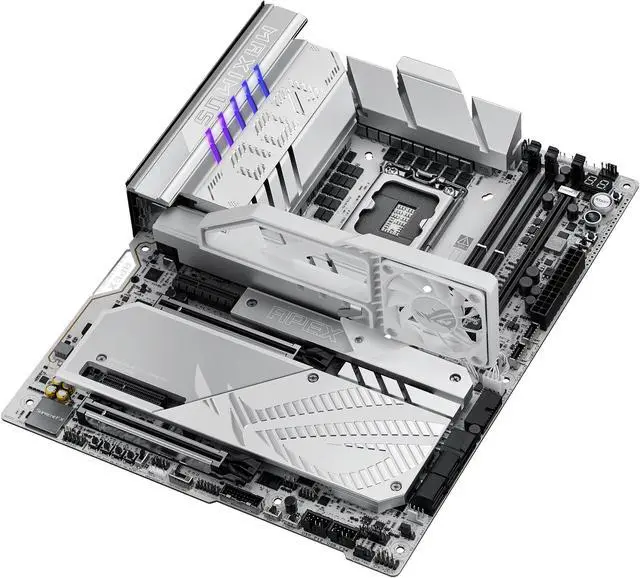

ASUS ROG MAXIMUS Z890 APEX Intel® Z890 LGA 1851 ATX motherboard, Advanced AI PC-ready, 22+2+1+2 stages, DDR5, WiFi 7, 5G LAN, 3x PCIe® 5.0 M.2, – Pappy Mall
Original price was: $891.91.$791.59Current price is: $791.59.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| best-seller-ranking |
#54 in Intel Motherboards |
|---|---|
| brand |
ASUS |
| model |
ROG MAXIMUS Z890 APEX |
| cpu-socket-type |
LGA 1851 |
| cpu-type |
Intel Core Ultra Processors (Series 2) |
| chipset |
Intel Z890 |
| number-of-memory-slots |
2x288pin (DDR5) |
| memory-standard |
DDR5 4400 ,DDR5 4800 ,DDR5 5000 ,DDR5 5200 ,DDR5 5400 ,DDR5 5600 ,DDR5 5800 ,DDR5 6000 ,DDR5 6200 ,DDR5 6400 ,DDR5 6600 ,DDR5 6800 ,DDR5 7000 ,DDR5 7200 ,DDR5 7400 ,DDR5 7600 ,DDR5 7800 ,DDR5 7900 ,DDR5 7950 ,DDR5 8000 ,DDR5 8200 ,DDR5 8266 ,DDR5 8400 ,DDR5 8600 ,DDR5 8666 ,DDR5 8800 ,DDR5 8933 ,DDR5 9000 ,DDR5 9066 ,DDR5 9200 ,DDR5 9466 ,DDR5 9500 ,DDR5 9600 |
| maximum-memory-supported |
96GB |
| channel-supported |
Dual Channel |
| memory-feature |
Supports up to 9600+ MT/s (OC) ,Non-ECC ,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*Dual Channel Memory ArchitectureDIMM FitSupports Intel Extreme Memory Profile (XMP) memory moduleSupports DIMM FlexASUS Enhanced Memory Profile III (AEMP III)* Non-ECC ,un-buffered DDR5 memory supports On-Die ECC function. |
| pci-express-5-0-x16 |
Support Intel Core Ultra Processors(series 2)*2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)** |
| pci-express-x4 |
2 x PCIe 4.0 x4 slots** M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled ,PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled ,PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled. |
| serial-ata-sata |
4 x SATA 6Gb/s |
| m-2 |
Support Intel Core Ultra Processors(series 2) *M.2_1 slot (Key M) ,type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M) ,type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M) ,type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**M.2_4 slot (Key M) ,type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**Intel Z890 ChipsetDIMM.2_1 slot (Key M) via ROG DIMM.2 ,type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG DIMM.2 ,type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled ,PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled ,PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled. |
| audio-channels |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*- Impedance sense for front and rear headphone outputs- Supports: Jack-detection ,Multi-streaming ,Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panelAudio Features – SupremeFX Shielding Technology- Savitech SV3H712 AMP – Gold-plated audio jacks- Rear optical S/PDIF out port- Premium audio capacitors- Audio cover* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio ,make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
| max-lan-speed |
5Gbps |
| wireless-lan |
Wi-Fi 802.11 be |
| bluetooth |
Bluetooth 5.4 |

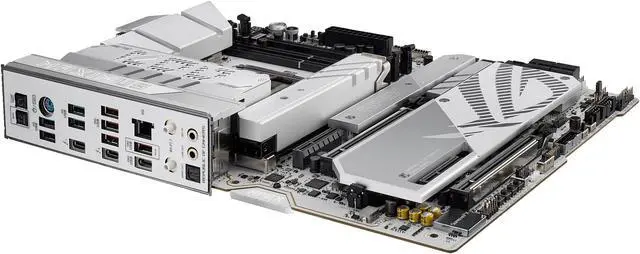

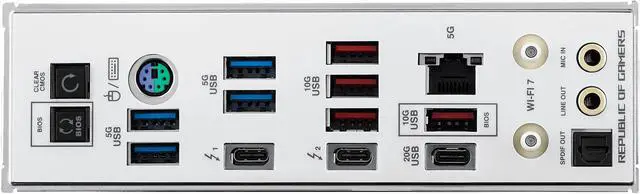

| back-i-o-ports |
2 x Thunderbolt 4 ports (USB Type-C)1 x USB 20Gbps port (1 x USB Type-C)4 x USB 10Gbps ports (4 x Type-A)4 x USB 5Gbps ports (4 x Type-A)1 x Wi-Fi Module1 x Realtek 5Gb Ethernet port2 x Gold-plated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack button 1 x Clear CMOS button 1 x PS/2 keyboard/mouse combo port |
| onboard-usb |
1 x USB 20Gbps connector (supports USB Type-C)1 x USB 10Gbps connector (supports USB Type-C)2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| other-connectors |
Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header2 x 4-pin Chassis Fan headers2 x 4-pin Full Speed Fan headers1 x W_PUMP+ header1 x Extra Flow Fan headerMiscellaneous1 x 80 Light Bar jumper3 x Addressable Gen 2 headers1 x Alteration PCIe mode switch4 x BCLK button1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO)1 x LN2 Mode jumper 1 x Pause switch18 x ProbeIt Measurement Points1 x ReTry button2 x RSVD switches1 x RSVD header1 x Safe Boot button1 x Slow Mode switch 1 x Start button1 x 10-1 pin System Panel header1 x Thermal Sensor header1 x Thunderbolt (USB4) header |
| bios-feature |
2 x 256 Mb Flash ROM ,UEFI AMI BIOS |
| software |
ROG Exclusive Software- ROG CPU-Z- Dolby Atmos- Internet Security (1-year full version)ASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (1 year full version)- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- GameFirst- Power Saving- HWiNFOASUS AI AdvisorASUS Driver HubASUS GlideXTurbo VcoreAdobe Creative Cloud (Free Trial)Thunderbolt ShareUSB Wattage WatcherWinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyNPU Boost |
| windows-11 |
Windows 11 (22H2 & later) ,Windows 10 64-bit (21H2 & later) |
| form-factor |
ATX |
| dimensions-w-x-l |
12.0" x 9.6" |
| power-pin |
1 x 24-pin Main Power connector2 x 8-pin +12V Power connector1 x 8-pin PCIe Power connector |
| features |
Extreme OC Kit- FlexKey button- LN2 Mode- ProbeIt- ReTry button- Safe boot button- Start button- Slow ModeExtreme Engine Digi+- SMD Capacitor- MicroFine Alloy Choke ASUS Q-Design – M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- PCIe Slot Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Code- Q-Dashboard- Q-Connector- Q-DIMM- Q-LED (CPU [red] ,DRAM [yellow] ,VGA [white] ,Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack button- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen 2 headersDual BIOSFront Panel USB 20Gbps with Quick Charge 4+ Support- Support: up to 60W fast charging and USB Wattage Watcher*- Output: 5/9/15/20V max. 3A ,PPS:3.3–21V max. 3A- Compatible with PD3.0 and PPS* To support 60W ,please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported. |
| first-listed-on-newegg |
October 10 ,2024 |
