Asus ROG Strix B550-F Gaming WiFi II AMD AM4 (3rd Gen Ryzen) ATX Gaming Motherboard (PCIe 4.0,WiFi 6E, 2.5Gb LAN, BIOS Flashback, HDMI 2.1, – Pappy Mall
Original price was: $222.97.$196.97Current price is: $196.97.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| best-seller-ranking |
#50 in AMD Motherboards |
|---|---|
| brand |
ASUS |
| series |
ROG |
| model |
STRIX B550-F GAMING WIFI II |
| cpu-socket-type |
AM4 |
| cpu-type |
Supports AMD Ryzen 5000 ,3000 Series Processors*Supports AMD Ryzen 5000 ,4000 G-Series Processors** Refer to http://www.asus.com for CPU support list. |
| chipset |
AMD B550 |
| number-of-memory-slots |
4x288pin (DDR4) |
| memory-standard |
DDR4 5100(OC) ,4866(OC) ,4600(OC) ,4466(OC) ,4400(OC) ,4266(OC) ,4133(OC) ,4000(OC) ,3866(OC) ,3600(OC) ,3466(OC) ,3200 ,3000 ,2800 ,2666 ,2400 ,2133 (AMD Ryzen 5000 and 4000 G-Series Processors) *DDR4 4800(OC) ,4666(OC) ,4600(OC) ,4400(OC) ,4266(OC) ,4133(OC) ,4000(OC) ,3866(OC) ,3733(OC) ,3600(OC) ,3466(OC) ,3400(OC) ,3200 ,3000 ,2933 ,2800 ,2666 ,2400 ,2133 (AMD Ryzen 5000 and 3000 Series Processors) ** Refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| maximum-memory-supported |
128GB |
| channel-supported |
Dual Channel |
| ecc-supported |
ECC Memory (ECC mode) support varies by CPU. |
| buffer-supported |
Un-buffered |
| pci-express-4-0-x16 |
1 x PCI Express 4.0 x16 |
| pci-express-3-0-x16 |
1 x PCI Express 3.0 x16** Supports x4 mode.* Share bandwidth with PCIe3.0 x1_1 ,PCIe3.0 x1_2 ,PCIe3.0 x1_3. |
| pci-express-x1 |
3 x PCIe 3.0 x1 |
| serial-ata-sata |
6 x SATA 6Gb/s |
| m-2 |

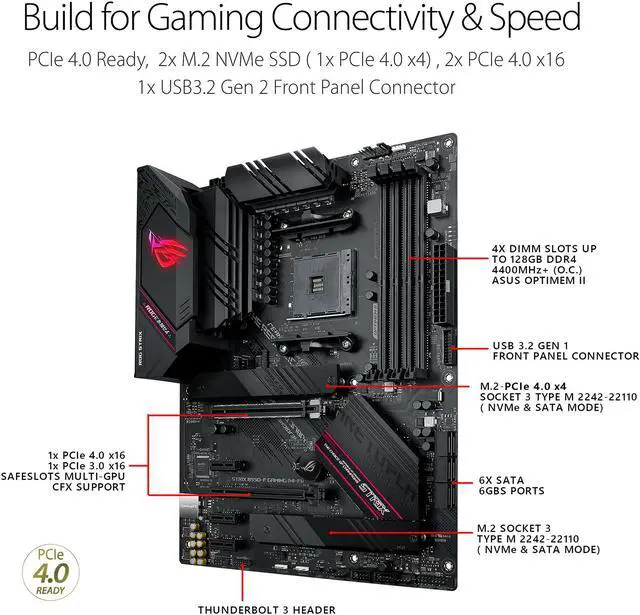

AMD Ryzen 5000 and 3000 Series ,5000 and 4000 G-Series Desktop Processors:M.2_1 slot (Key M) ,type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)AMD B550 Chipset:M.2_2 slot (Key M) ,type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** When the M.2_2 Slot is populated ,SATA6G_5/6 ports will be disabled. |
| sata-raid |
0/1/10 |
| onboard-video-chipset |
Supported only by CPU with integrated graphic |
| audio-chipset |
ROG SupremeFX High Definition Audio CODEC S1220A |
| audio-channels |
7.1 Channels |
| lan-chipset |
Intel I225-V |
| max-lan-speed |
2.5Gbps |
| wireless-lan |
Wi-Fi 6E802.11a/b/g/n/ac/ax |
| bluetooth |
Bluetooth 5.2 |
| back-i-o-ports |

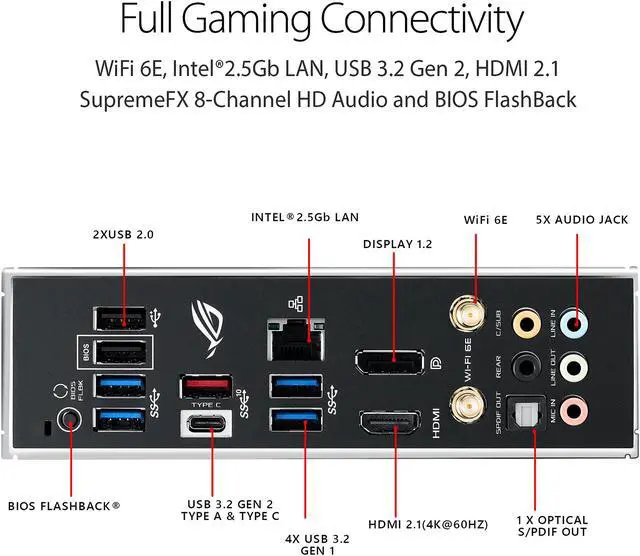

2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports1 x Wi-Fi Module1 x DisplayPort1 x HDMI port1 x Intel I225-V 2.5G Ethernet 1 x Optical S/PDIF out5 x Audio jacks 1 x BIOS FlashBack button |
| onboard-usb |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| other-connectors |

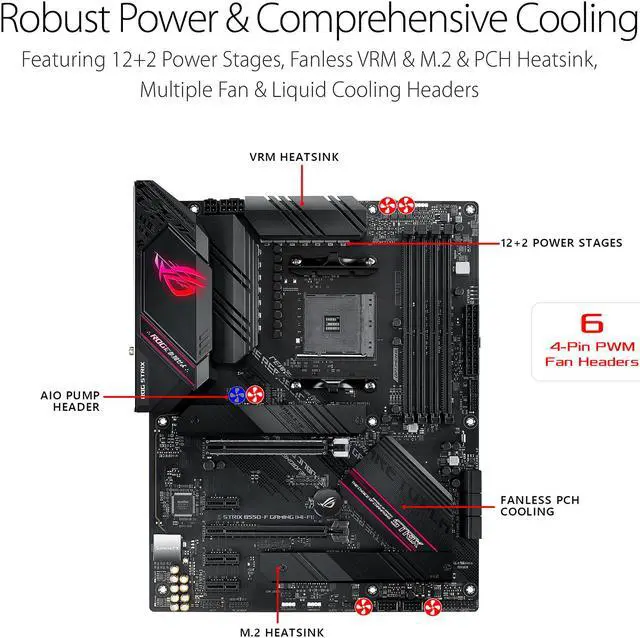

Fan and cooling related 1 x 4-Pin AIO_Pump header1 x 4-Pin CPU fan header1 x 4-Pin CPU_OPT fan header 3 x 4-Pin Chassis fan headers Miscellaneous1 x Addressable Gen 2 header2 x AURA RGB headers1 x Clear CMOS header1 x Front panel audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function1 x Thermal sensor header1 x Thunderbolt header |
| form-factor |
ATX |
| led-lighting |
RGB |
| dimensions-w-x-l |
12.0" x 9.6" |
| power-pin |
1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s) |
| windows-11 |
Supported |
| features |

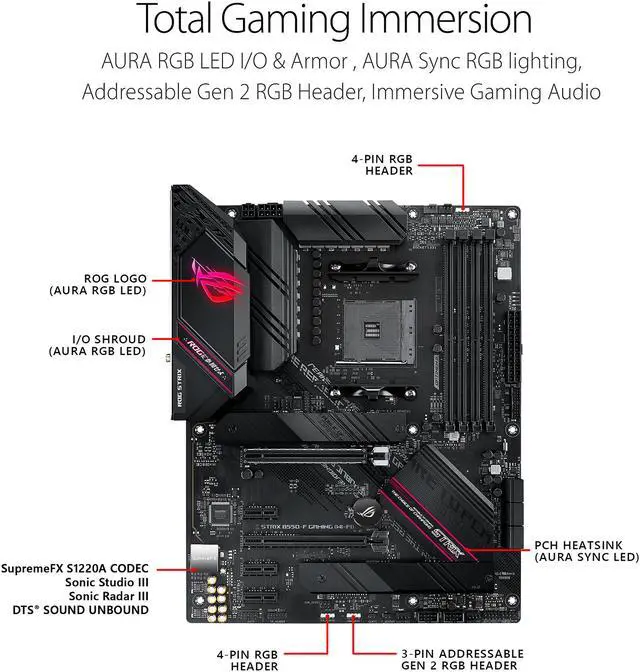

Special Features:ASUS Q-Design – ASUS Q-DIMM- ASUS Q-LED (DRAM [yellow],CPU [red] ,VGA [white] ,Boot Device [yellow green)- ASUS Q-SlotASUS Thermal Solution- M.2 heatsinkAURA Sync- AURA RGB headers- Addressable Gen 2 RGB headersASUS EZ DIY- BIOS FlashBack button- BIOS FlashBack LED- Clear CMOS header- ProCool- Pre-mounted I/O shield- SafeSlotSoftware Features:ROG Exclusive Software- RAMCache III- ROG CPU-Z- GameFirst VI- Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III- DTS Sound Unbound – Overwolf – Anti-virus softwareASUS Exclusive Software FeaturesArmoury Crate- AIDA64 Extreme (60 days free trial)- Aura Creator- Aura Sync- Two-Way AI Noise CancelationAI Suite 3:- Performance And Power Saving UtilityEPUDIGI+ VRMFan Xpert 4TurboV EVO- EZ updateWinRARDAEMON ToolsNorton Anti-virus software (Free Trial version) UEFI BIOSASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ ModeBIOS:256 Mb Flash ROM ,UEFI AMI BIOSManageability:WOL by PME ,PXE Operating System:Windows 10 64-bit ,Windows 11 64-bit |
| package-contents |

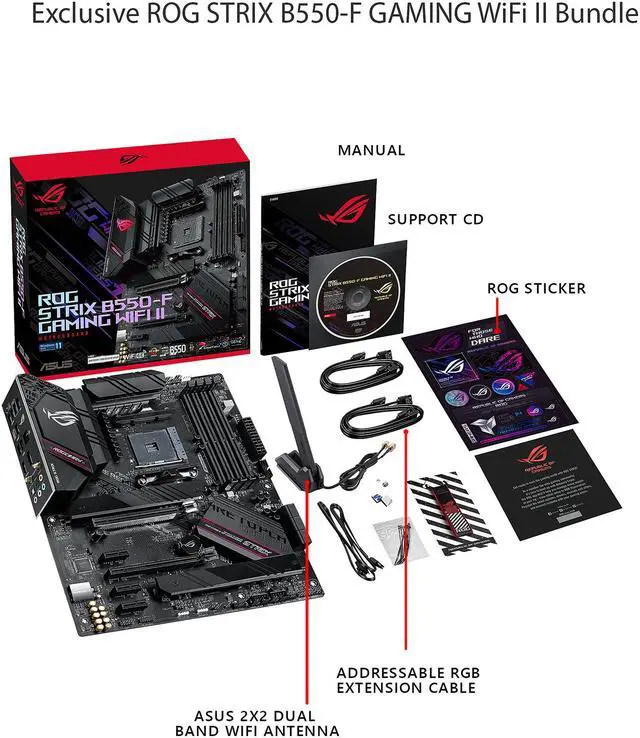

Cables1 x Addressable RGB extension cable4 x SATA 6Gb/s cables Miscellaneous1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack1 x M.2 Rubber Package1 x M.2 SSD screw package1 x ROG key chain1 x ROG Strix stickers1 x ROG Strix thank you cardInstallation Media1 x Support DVDDocumentation1 x User manual |
| first-listed-on-newegg |
December 17 ,2021 |
