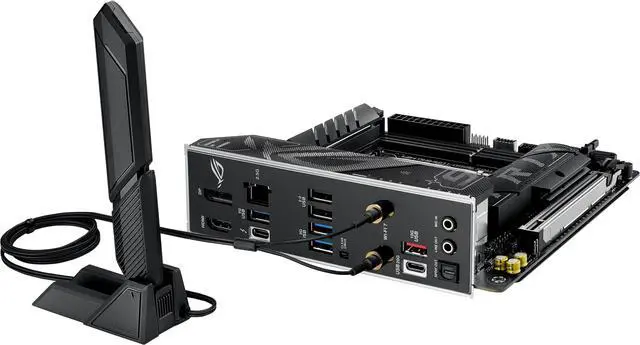

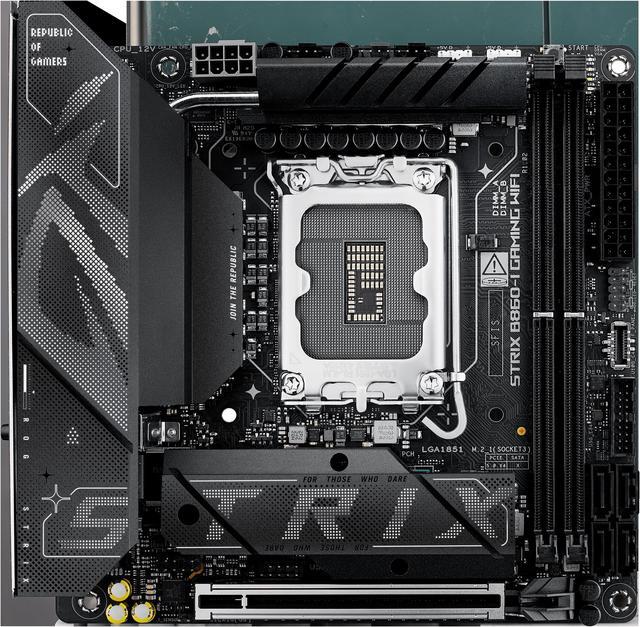

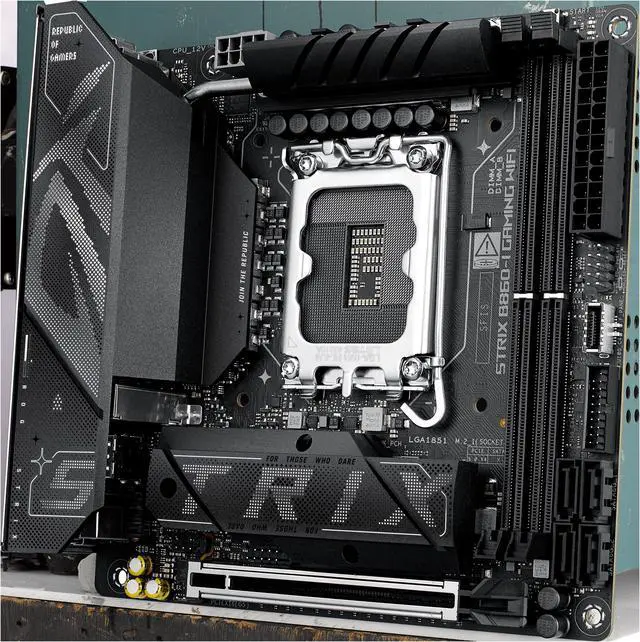

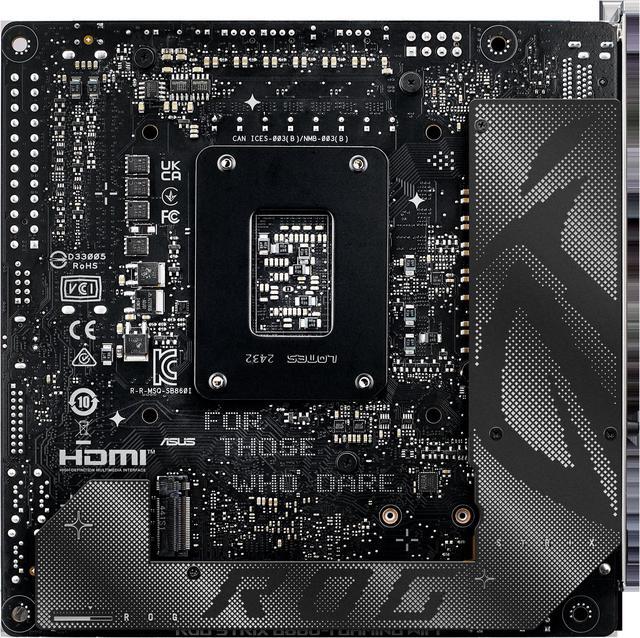

ASUS ROG STRIX B860-I GAMING WIFI B860 LGA 1851 mITX Mini-ITX motherboard, Intel Core Ultra Series 2 Ready, Advanced AI ready, 10+1+2+1 stage, DDR5, – Pappy Mall
$258.91
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| best-seller-ranking |
#39 in Intel Motherboards |
|---|---|
| brand |
ASUS |
| model |
ROG STRIX B860-I GAMING WIFI |
| part-number |
90MB1JB0-M0AAY0 |
| cpu-socket-type |
LGA 1851 |
| cpu-type |
Intel Core Ultra Processors (Series 2) |
| chipset |
Intel B860 |
| number-of-memory-slots |
2x288pin (DDR5) |
| memory-standard |
Up to 9066+MT/s (OC) |
| maximum-memory-supported |
96GB |
| channel-supported |
Dual Channel |
| memory-feature |
Dual channel memory architectureDIMM FitSupports Intel Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile III (AEMPIII) |
| pci-express-5-0-x16 |
Intel Core Ultra Processors (Series 2)1 x PCIe 5.0 x16 slot |
| pci-express-4-0-x16 |
Intel B860 ChipsetM.2_2 slot (Key M) ,type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| serial-ata-sata |
4 x SATA 6Gb/s |
| m-2 |
Intel Core Ultra Processors (Series 2)M.2_1 slot (Key M) ,type 2260/2280 (supports PCIe 5.0 x4 mode)Intel B860 Chipset**M.2_2 slot (Key M) ,type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| sata-raid |
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| audio-chipset |
Realtek ALC1220P |
| audio-channels |
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection ,Multi-streaming ,Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHz playback*Audio Features – SupremeFX Shielding Technology- Savitech SV3H712 AMP – Rear optical S/PDIF out port- Premium audio capacitors- Dedicated audio PCB layers* Due to limitations in HDA bandwidth ,32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| max-lan-speed |
2.5Gbps |
| wireless-lan |
Wi-Fi 802.11 be |
| bluetooth |
Bluetooth 5.4 |

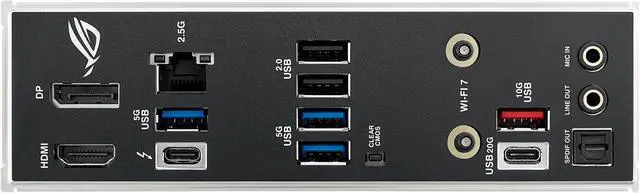

| back-i-o-ports |
1 x Thunderbolt 4 port (1 x USB Type-C)1 x USB 20Gbps port (1 x USB Type-C)1 x USB 10Gbps ports (1 x Type-A)3 x USB 5Gbps ports (3 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI port1 x Wi-Fi module1 x Intel 2.5Gb Ethernet port2 x Audio jacks 1 x Optical S/PDIF out port1 x Clear CMOS button |
| onboard-usb |
1 x USB 10Gbps connector (supports USB Type-C)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| other-connectors |
Fan and Cooling Related 1 x 4-pin CPU Fan header1 x 4-pin AIO Pump header1 x 4-pin Chassis Fan headersMiscellaneous2 x Addressable Gen2 headers1 x Front Panel Audio header (F_AUDIO)1 x 10-1 pin Front System Panel header1 x Thermal Sensor header |
| bios-feature |
256 Mb Flash ROM ,UEFI AMI BIOS |
| software |
ROG Exclusive Software- ROG CPU-Z- Dolby AtmosASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 4- GameFirst- Power SavingAIDA64 Extreme (60 days free trial) HWiNFOASUS AI AdvisorASUS DriverHubASUS GlideXTurboV Core Adobe Creative Cloud (Free Trial)Norton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash- ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyNPU Boost |
| windows-11 |
Windows 11 (22H2 & later) |
| form-factor |
Mini ITX |
| dimensions-w-x-l |
6.7" x 6.7" |
| power-pin |
1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connector |
| features |
Extreme Engine Digi+- 5K Black metallic capacitors ASUS Q-Design – PCIe Slot Q-Release Slim (with PCIe SafeSlot)- M.2 Q-Latch- Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED (CPU [red] ,DRAM [yellow] ,VGA [white] ,Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- VRM heatsink designASUS EZ DIY- Clear CMOS button- CPU Socket lever protector- ProCool- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen2 headers |
| package-contents |
Cables2 x SATA 6Gb/s cables Miscellaneous1 x ASUS WiFi Q-Antenna1 x Cable ties package2 x Screw packages for M.2 SSD1 x Fan Bracket1 x ROG key chain1 x ROG Strix stickersDocumentation1 x Quick start guide |
| first-listed-on-newegg |
January 08 ,2025 |
