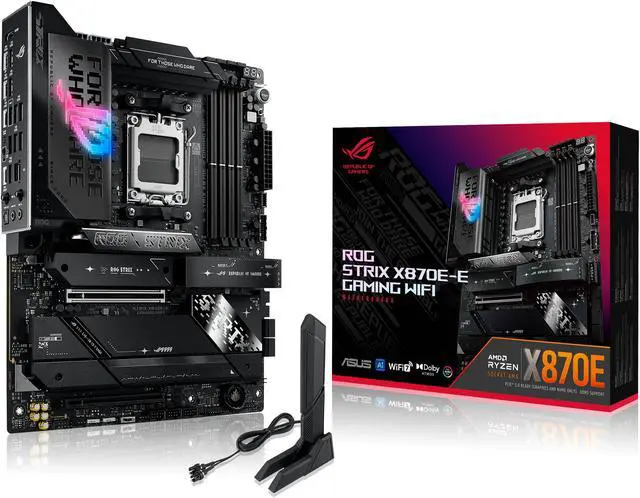

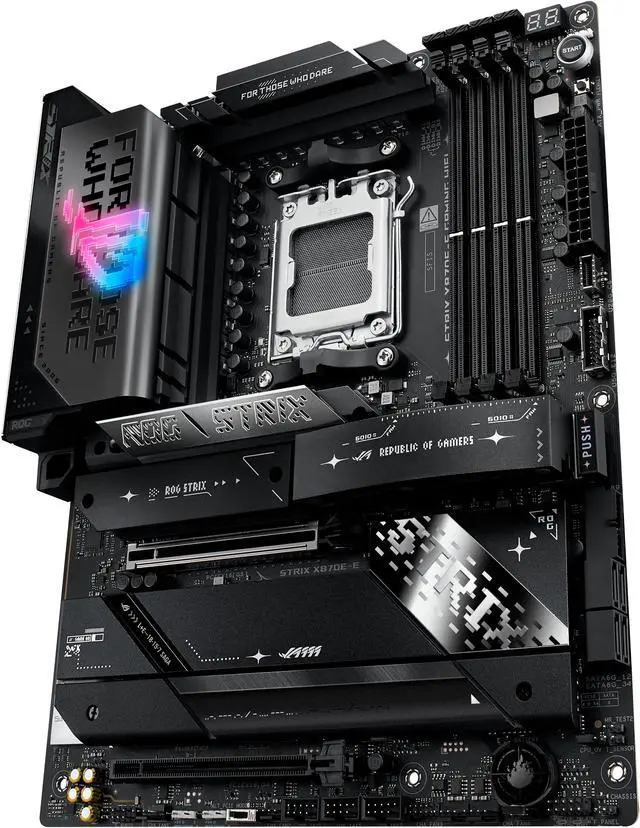

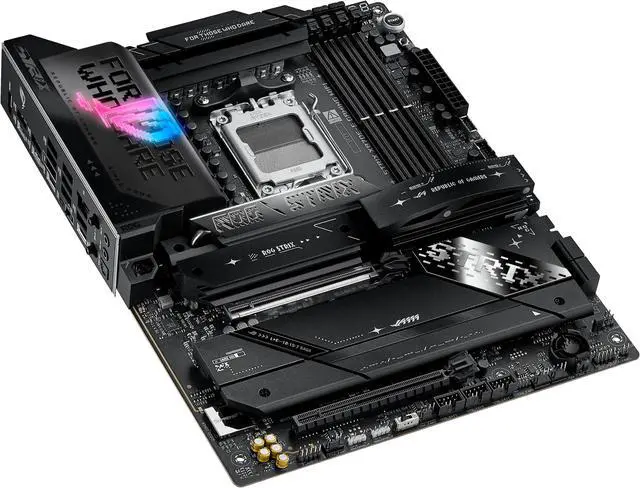

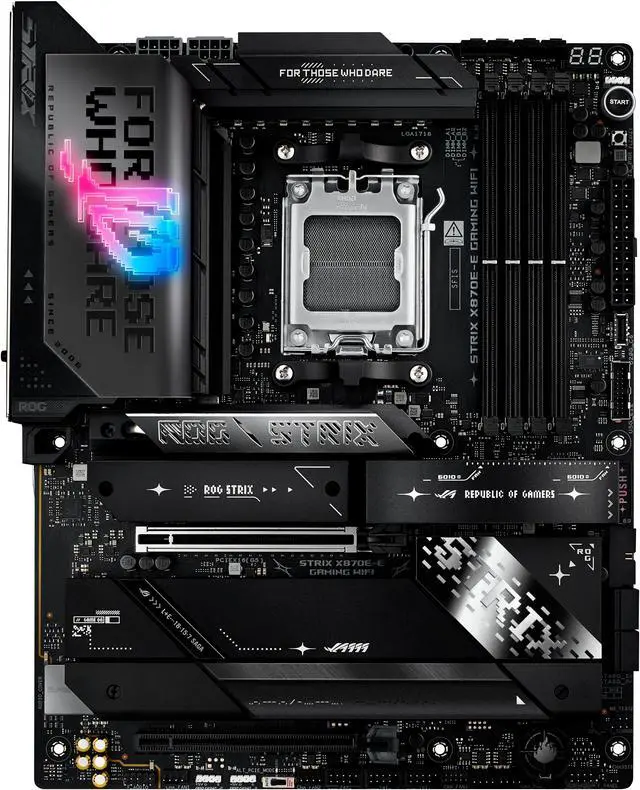

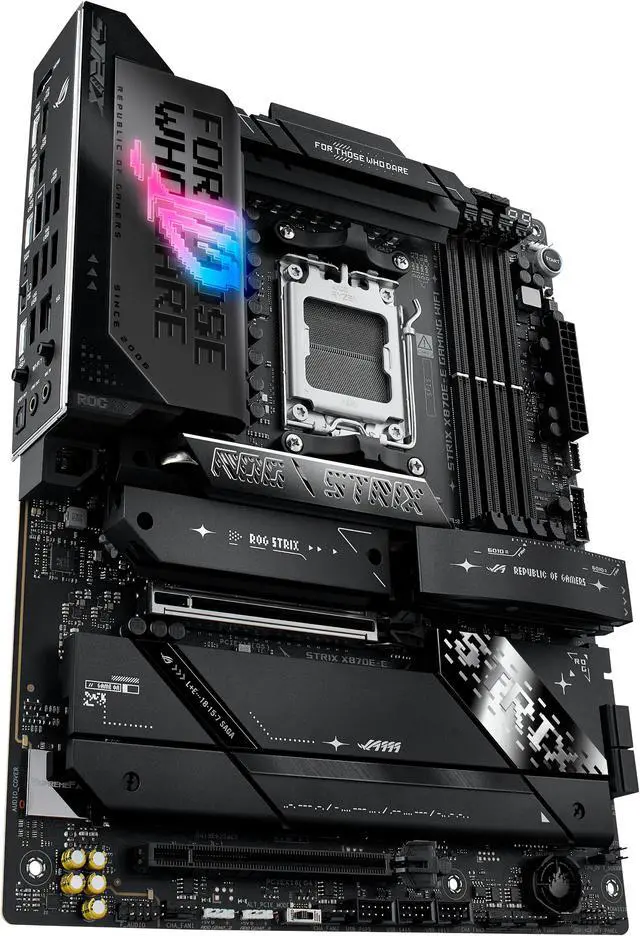

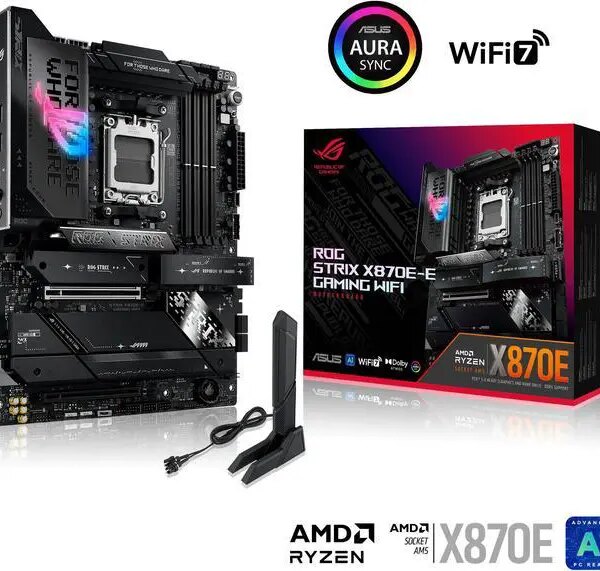

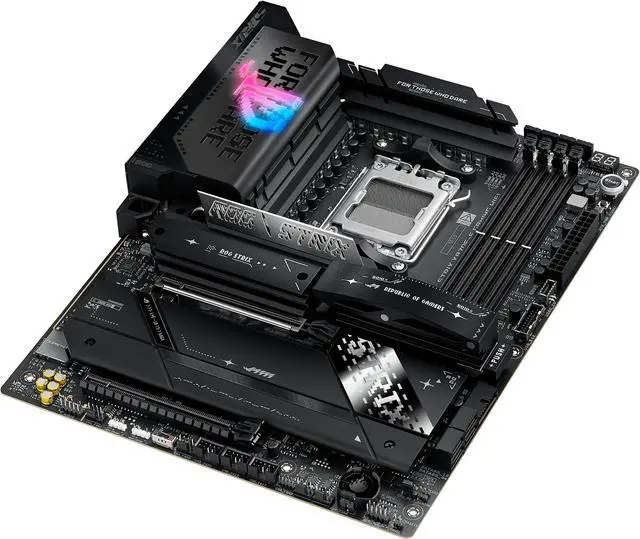

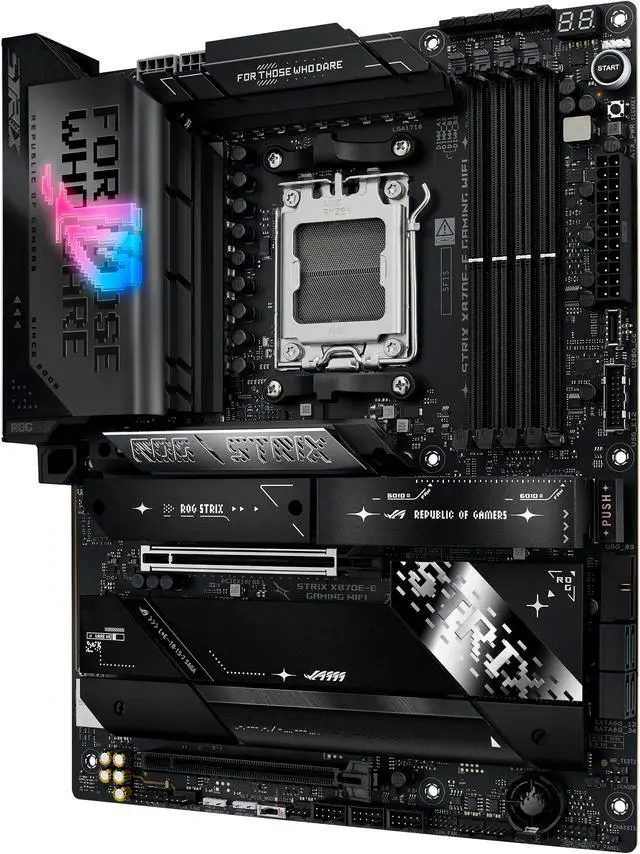

ASUS ROG STRIX X870E-E GAMING WIFI – Pappy Mall
$589.31
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| best-seller-ranking |
#9 in AMD Motherboards |
|---|---|
| brand |
ASUS |
| model |
ROG STRIX X870E-E GAMING WIFI |
| part-number |
90MB1IB0-M0AAY0 |
| cpu-socket-type |
AM5 |
| cpu-type |
Ryzen 7000 Series ,Ryzen 8000 Series ,Ryzen 9000 Series |
| chipset |
AMD X870E |
| number-of-memory-slots |
4x288pin (DDR5) |
| memory-standard |
DDR5 4400 |
| maximum-memory-supported |
192GB |
| channel-supported |
Dual Channel |
| ecc-supported |
Yes |
| buffer-supported |
Un-buffered |
| memory-feature |
Supports up to8000+MT/s(OC) with Ryzen 9000 Series Processors,8400+MT/s(OC) with Ryzen 8000 Series Processors,8000+MT/s(OC) with Ryzen 7000 Series Processors,ECC and Non-ECC Un-buffered DIMM*Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO)NitroPath DRAM TechnologyASUS Enhanced Memory Profile (AEMP)* Non-ECC ,Un-buffered DDR5 Memory supports On-Die ECC function |
| pci-express-5-0-x16 |
AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors1 x PCIe 5.0 x16 slots (supports x16 mode) |
| pci-express-4-0-x16 |
AMD X870E Chipset1 x PCIe 4.0 x16 slot (supports x4 mode) |
| serial-ata-sata |
4 x SATA 6Gb/s |
| m-2 |
AMD Ryzen 9000 & 8000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M) ,type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M) ,type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**M.2_3 slot (Key M) ,type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**AMD X870E ChipsetM.2_4 slot (Key M) ,type 2280 (supports PCIe 4.0 x4 mode)M.2_5 slot (Key M) ,type 2280 (supports PCIe 4.0 x4 mode)** M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices ,PCIEX16(G5) will run x8 only. |
| sata-raid |
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen 9000 series CPU. |
| audio-chipset |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*- Impedance sense for front and rear headphone outputs- Supports: Jack-detection ,Multi-streaming ,Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playbackAudio Features – Audio Shielding- Savitech SV3H712 AMP – Gold-plated audio jacks- Rear optical S/PDIF out port – Premium audio capacitors- Audio cover* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio ,make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
| audio-channels |
7.1 Channels |
| max-lan-speed |
5Gbps |
| wireless-lan |
Wi-Fi 802.11 be |
| bluetooth |
Bluetooth 5.4 |

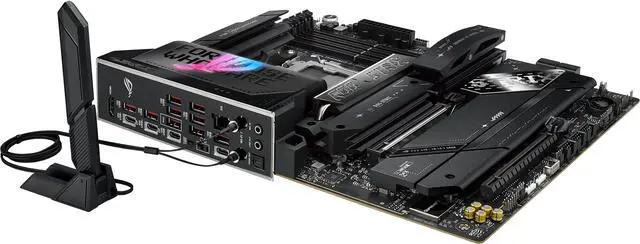

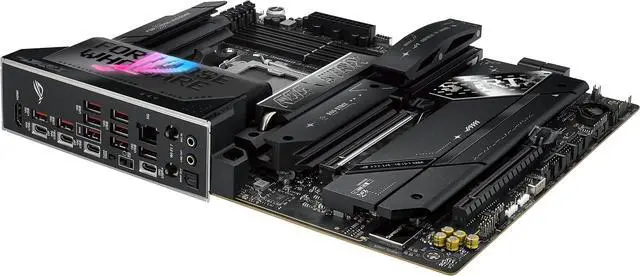

| back-i-o-ports |
2 x USB4 (40Gbps) ports (2 x USB Type-C)1 x USB 20Gbps port (1 x USB Type-C with up to 30W PD Fast-charge)10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C)1 x HDMI port1 x Wi-Fi Module1 x Realtek 5Gb Ethernet2 x Gold-plated audio jacks 1 x Optical S/PDIF out port1 x BIOS FlashBack button 1 x Clear CMOS button |
| onboard-usb |
1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports3 x USB 2.0 headers support additional 6 USB 2.0 ports |
| other-connectors |
Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headersMiscellaneous3 x Addressable Gen 2 headers1 x CPU Over Voltage jumper1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO)1 x Start button1 x 10-1 pin System Panel header1 x Thermal Sensor header |
| form-factor |
ATX |
| dimensions-w-x-l |
12.0" x 9.6" |
| power-pin |
1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectors |
| bios-feature |
256 Mb Flash ROM ,UEFI AMI BIOS |
| windows-11 |
Supported |
| features |
Extreme Engine Digi+- 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- PCIe Slot Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Code- Q-Dashboard- Q-DIMM- Q-LED (CPU [red] ,DRAM [yellow] ,VGA [white] ,Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsinks- M.2 heatsink backplate- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen 2 headers |
| package-contents |

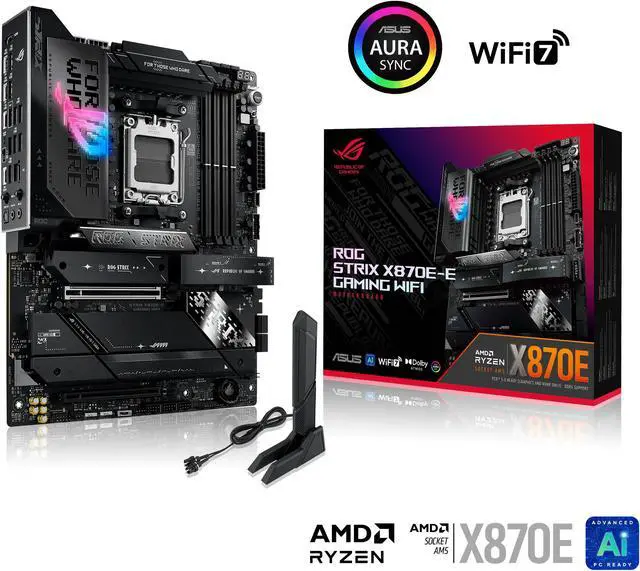

Cables2 x SATA 6Gb/s cables Additional Cooling Kit1 x Thermal pad for M.2 22110Miscellaneous1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack1 x M.2 Q-Latch package2 x M.2 Q-Slides1 x ROG key chain1 x ROG Strix stickers5 x M.2 RubbersDocumentation1 x Quick start guide |
| first-listed-on-newegg |
September 30 ,2024 |
