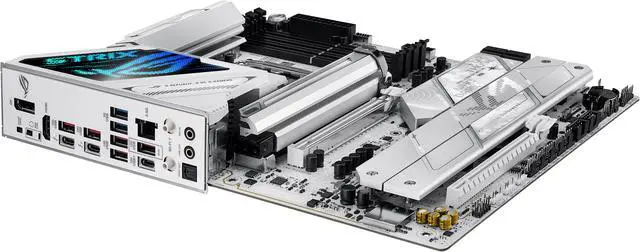

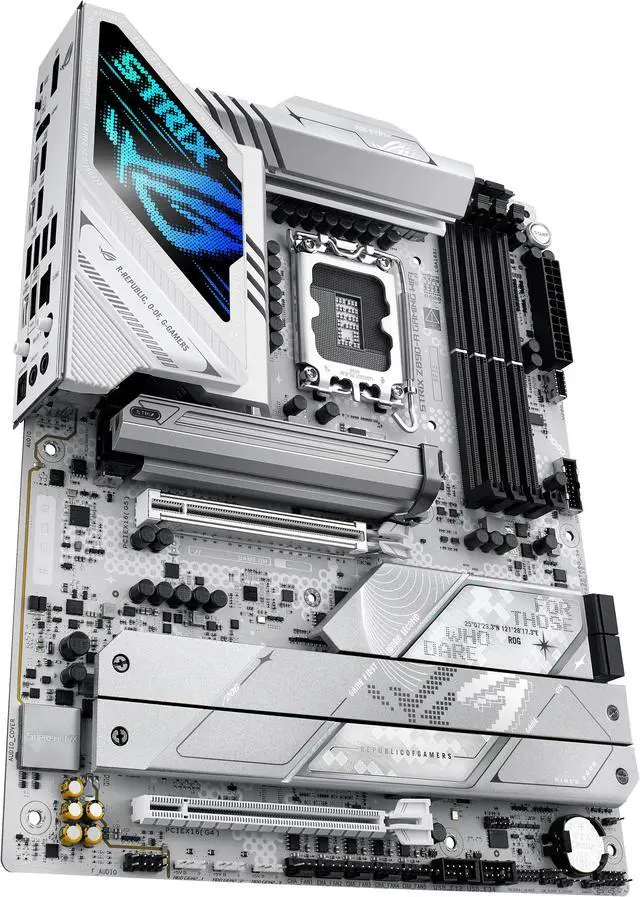

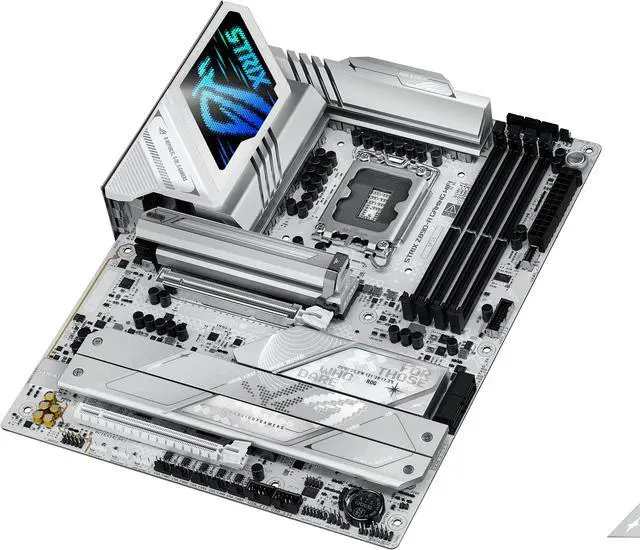

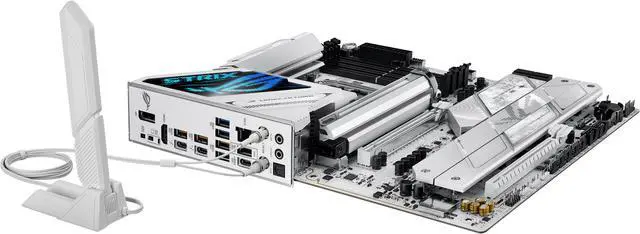

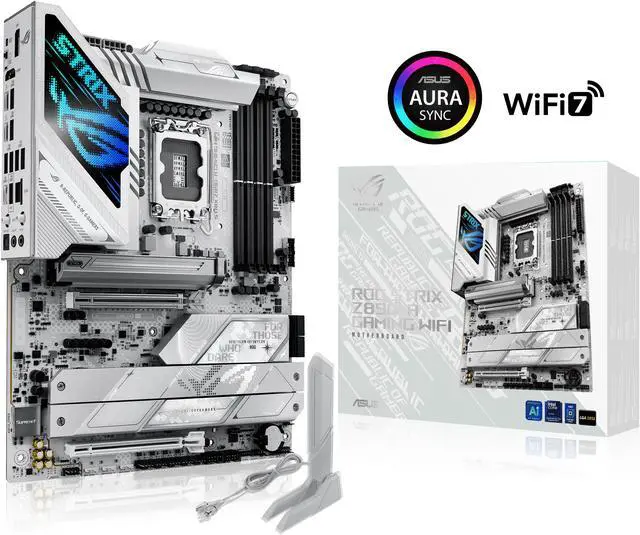

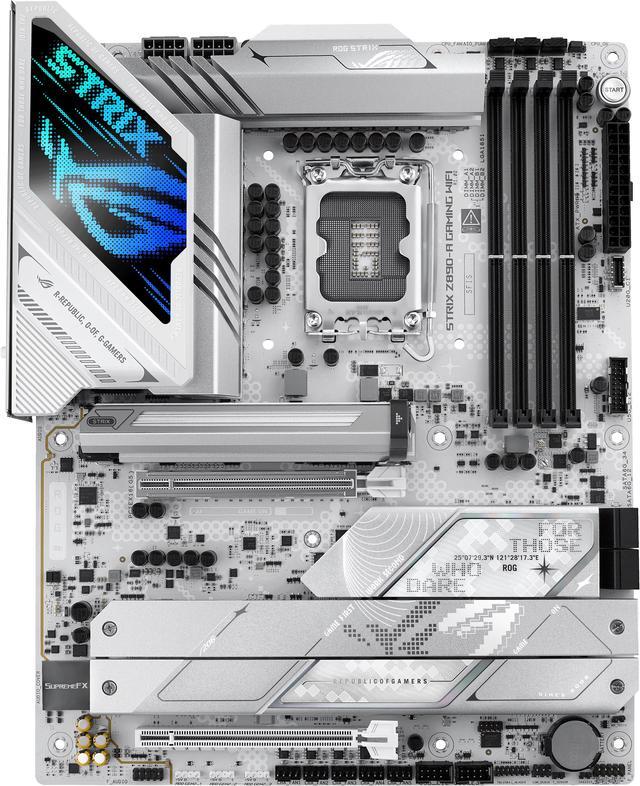

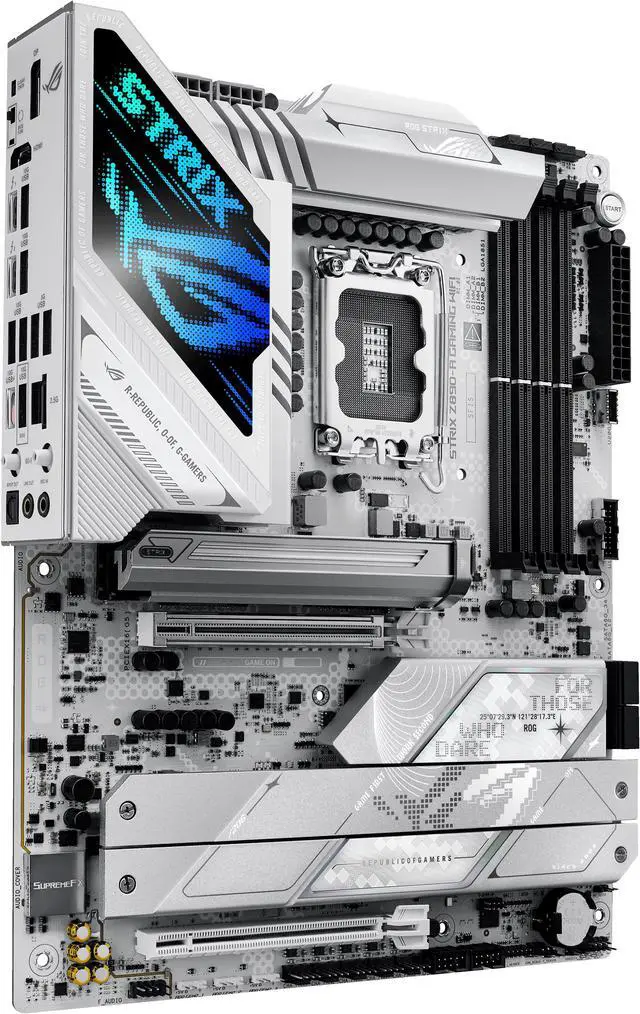

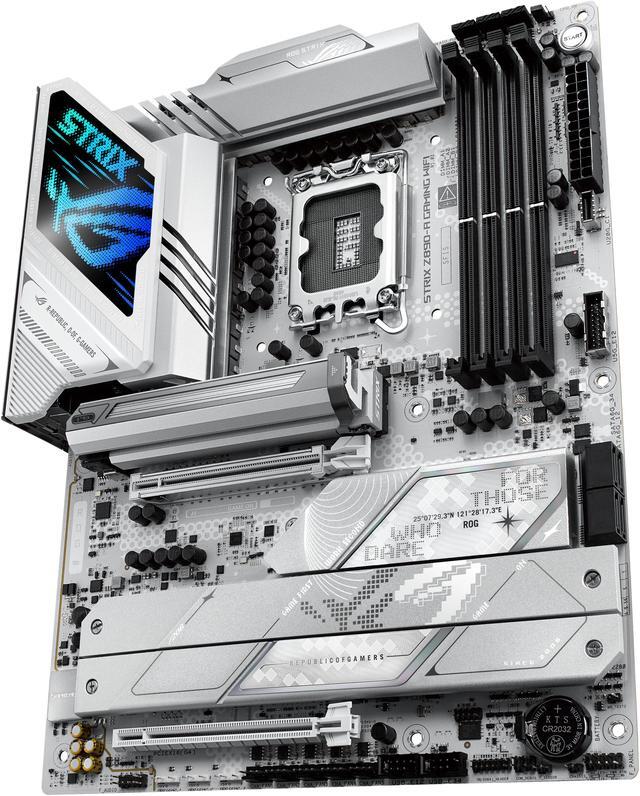

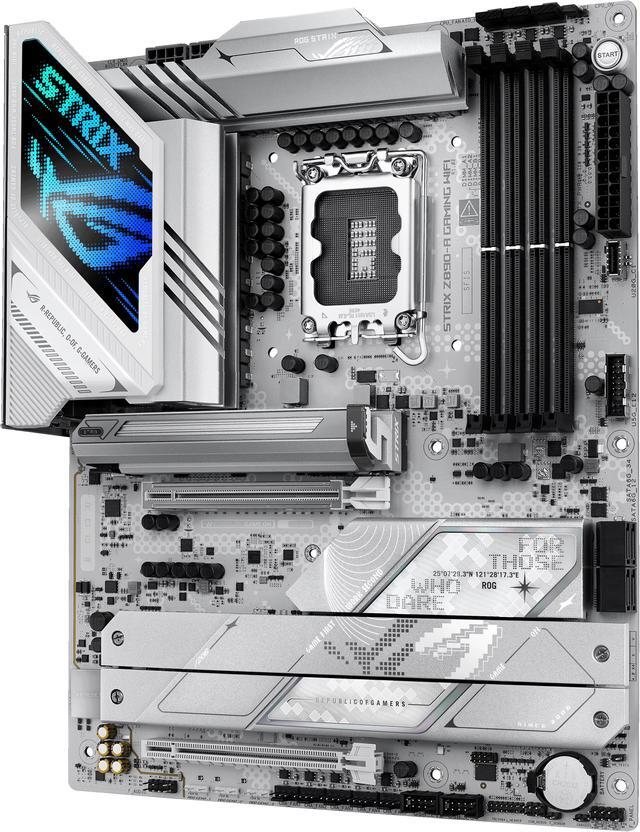

ASUS ROG STRIX Z890-A GAMING WIFI Z890 LGA 1851 ATX motherboard, Intel® Core™ Ultra Series 2 Ready, Advanced AI PC-ready, 16+2+1+2 stages, DDR5, WiFi – Pappy Mall
Original price was: $495.50.$457.11Current price is: $457.11.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| best-seller-ranking |
#28 in Intel Motherboards |
|---|---|
| brand |
ASUS |
| model |
ROG STRIX Z890-A GAMING WIFI |
| cpu-socket-type |
LGA 1851 |
| cpu-type |
Intel Core Ultra Processors (Series 2) |
| chipset |
Intel Z890 |
| number-of-memory-slots |
4x288pin (DDR5) |
| memory-standard |
DDR5 4400 ,DDR5 4800 ,DDR5 5000 ,DDR5 5200 ,DDR5 5400 ,DDR5 5600 ,DDR5 5800 ,DDR5 6000 ,DDR5 6200 ,DDR5 6400 ,DDR5 6600 ,DDR5 6800 ,DDR5 7000 ,DDR5 7200 ,DDR5 7400 ,DDR5 7600 ,DDR5 7800 ,DDR5 7900 ,DDR5 7950 ,DDR5 8000 ,DDR5 8200 ,DDR5 8266 ,DDR5 8400 ,DDR5 8600 ,DDR5 8666 ,DDR5 8800 ,DDR5 8933 ,DDR5 9000 ,DDR5 9066 |
| maximum-memory-supported |
192GB |
| channel-supported |
Dual Channel |
| memory-feature |
Support up to 9066+MT/s (OC) ,Non-ECC ,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*Dual channel memory architectureSupports Intel Extreme Memory Profile (XMP) memory moduleSupports DIMM FlexSupports DIMM FITASUS Enhanced Memory Profile III (AEMPIII)* Non-ECC ,un-buffered DDR5 memory supports On-Die ECC function. |
| pci-express-5-0-x16 |
Intel Core Ultra Processors (Series 2)1 x PCIe 5.0 x16 slot |
| pci-express-4-0-x16 |
Intel Z890 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode) |
| serial-ata-sata |
4 x SATA 6Gb/s |
| m-2 |
Intel Core Ultra Processors(Series 2)*M.2_1 slot (Key M) ,type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M) ,type 2280 (supports PCIe 4.0 x4 mode)Intel Z890 ChipsetM.2_3 slot (Key M) ,type 2280 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M) ,type 2280/22110 (supports PCIe 4.0 x4 mode)M.2_5 slot (Key M) ,type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
| sata-raid |
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10 ,SATA RAID 0/1/5/10 ,M.2 slot from CPU only supports RAID 0/1/5. |
| audio-channels |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*- Impedance sense for front and rear headphone outputs- Supports: Jack-detection ,Multi-streaming ,Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panelAudio Features – SupremeFX Shielding Technology- Savitech SV3H712 AMP – Rear optical S/PDIF out port- Premium audio capacitors- Audio cover* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio ,make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
| max-lan-speed |
2.5Gbps |
| wireless-lan |
Wi-Fi 802.11 be |
| bluetooth |
Bluetooth 5.4 |
| back-i-o-ports |
2 x Thunderbolt 4 ports (2 x USB Type-C)*6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-Cwith up to 30W PD/PPD Fast-charge)2 x USB 5Gbps ports (2 x Type-A)1 x DisplayPort1 x HDMI port1 x Wi-Fi module1 x Intel 2.5Gb Ethernet port2 x Audio jacks 1 x Optical S/PDIF out port1 x BIOS FlashBack button 1 x Clear CMOS button |
| onboard-usb |
1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| other-connectors |
Fan and Cooling Related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headersMiscellaneous3 x Addressable Gen 2 headers1 x Chassis Intrusion header1 x CPU Over voltage jumper1 x Front Panel Audio header (F_AUDIO)1 x Start button1 x 10-1 pin Front System Panel header1 x Thermal Sensor header1 x Thunderbolt (USB4) header |
| bios-feature |
256 Mb UEFI AMI BIOS |
| software |
ROG Exclusive Software- ROG CPU-Z- Dolby AtmosASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (60 days free trial) – Aura Creator- Aura Sync- Xpert 4 (with AI Cooling II)- GameFirst- HWiNFO- Power SavingASUS AI AdvisorASUS DriverHubASUS GlideXMyAsusUSB Wattage WatcherTurboV Core Adobe Creative Cloud (30 Days Free Trial)Norton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideNPU BoostASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyFlexKeyMemTest86 |
| windows-11 |
Windows 11 (22H2 later) |
| form-factor |
ATX |
| dimensions-w-x-l |
12.0" x 9.6" |
| power-pin |
1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectors |
| features |
Extreme Engine Digi+- 5K Black metallic capacitors ASUS Q-Design – M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- PCIe Slot Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED (CPU [red] ,DRAM [yellow] ,VGA [white] ,Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsinkASUS EZ DIY- BIOS FlashBack button- BIOS FlashBack LED- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen 2 headers |
| package-contents |
Cables2 x SATA 6Gb/s cables Additional Cooling Kit1 x Thermal pad for M.2 22110Miscellaneous1 x ASUS WiFi Q-Antenna1 x Cable ties package1 x M.2 Q-Latch package1 x ROG key chain1 x ROG Strix stickers2 x M.2 rubber packagesDocumentation1 x Quick start guide |
| first-listed-on-newegg |
October 10 ,2024 |
