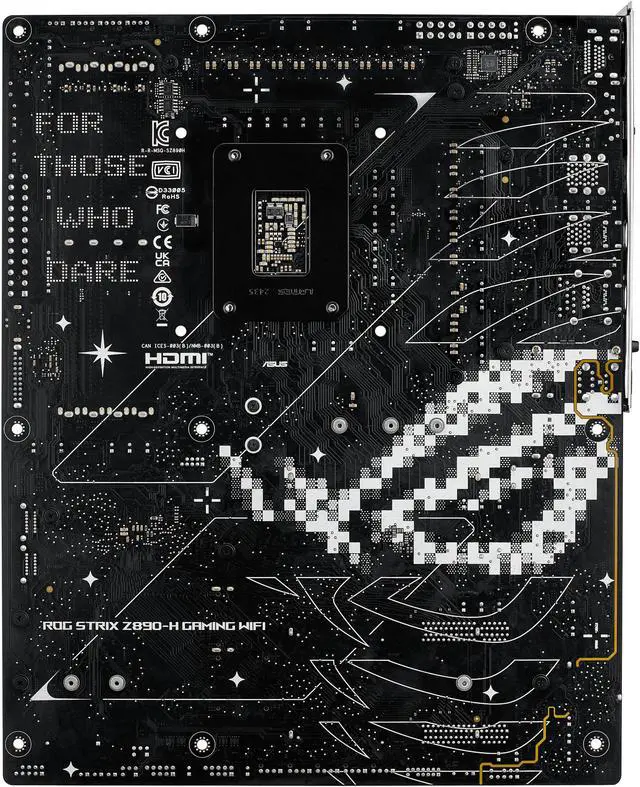

Powered advanced AI technologies and compatible with Intel processors featuring a Neural Processing Unit, the ROG STRIX Z890-H Gaming WiFi enables advanced AI PC applications. It features a USB 20Gbps Type-C® rear I/O port with up to 30-watt Power Delivery for fast charging, PCIe® 5.0 support, and Aura lighting. These capabilities provide ultra-fast data transfers, exceptional connectivity and customizable lighting that can be understated or striking.
ASUS ROG STRIX Z890-A GAMING WIFI Z890 LGA 1851 ATX motherboard, Intel® Core™ Ultra Series 2 Ready, Advanced AI PC-ready, 16+2+1+2 stages, DDR5, WiFi - Pappy Mall
Original price was: $495.50.$457.11Current price is: $457.11.

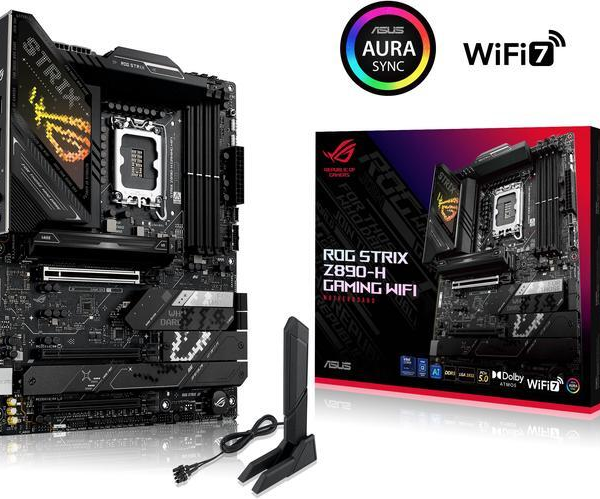

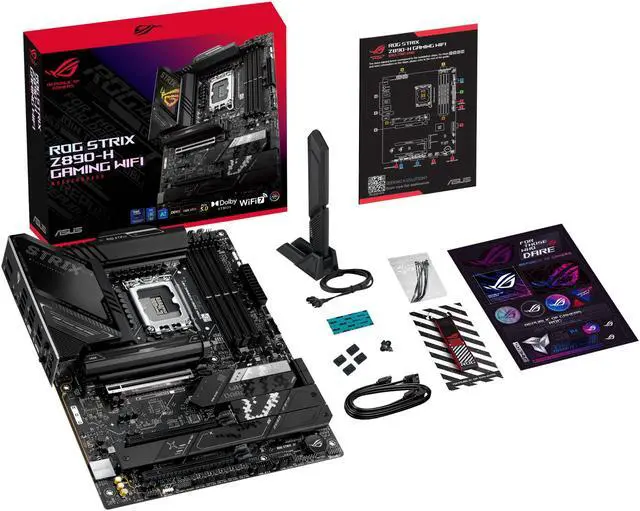

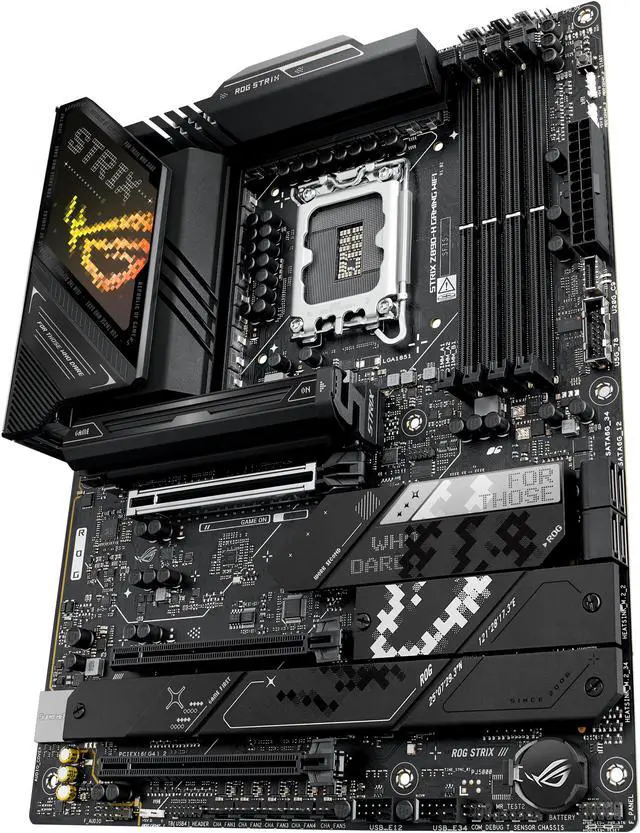

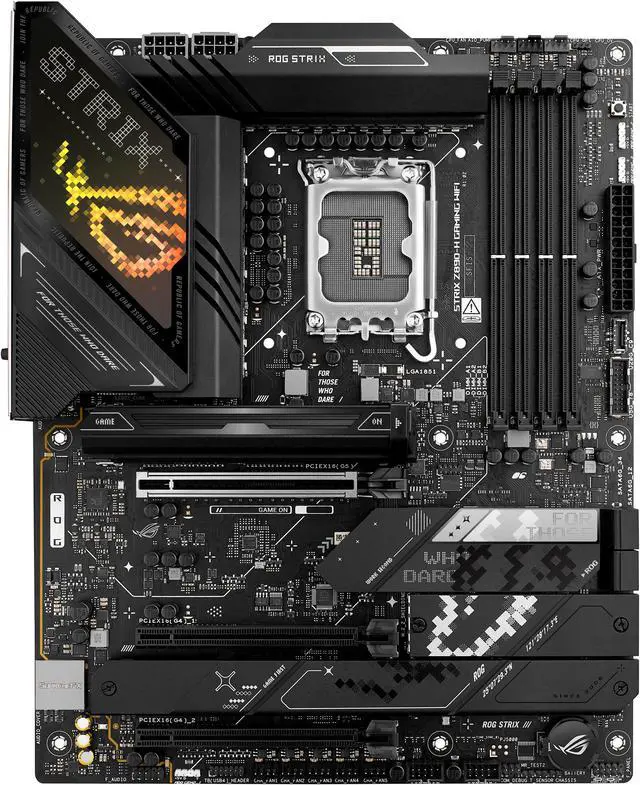

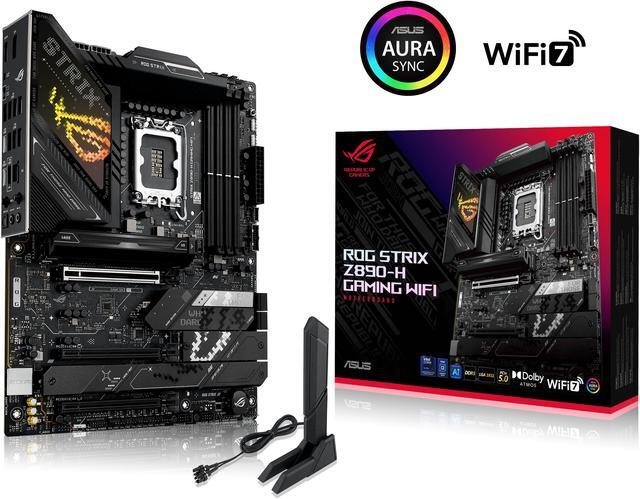

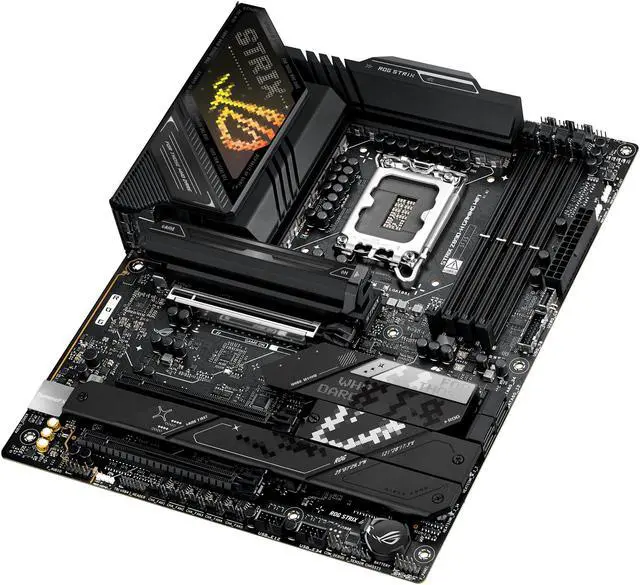

ASUS ROG STRIX Z890-H GAMING WIFI Z890 LGA 1851 ATX motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-ready, 16+2+1+2 stages, DDR5, 5Gb – Pappy Mall
$407.56
15
People watching this product now!
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Additional information
| best-seller-ranking |
#11 in Intel Motherboards |
|---|---|
| brand |
ASUS |
| series |
ROG |
| model |
ROG STRIX Z890-H GAMING WIFI |
| part-number |
90MB1K20-M0AAY0 |
| cpu-socket-type |
LGA 1851 |
| cpu-type |
Support Intel® Core™ Ultra Processors (Series 2) ,LGA1851*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to http://www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| chipset |
Intel Z890 |
| number-of-memory-slots |
4x288pin (DDR5) |
| memory-standard |
4 x DIMM slots ,max. 192GB ,DDR5Support up to 8800+MT/s (OC) ,Non-ECC ,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*Dual channel memory architectureSupports Intel® Extreme Memory Profile (XMP) memory moduleSupports DIMM FlexNitroPath DRAM TechnologyDIMM FITASUS Enhanced Memory Profile III (AEMP III)* Supported memory types ,data rate (speed) ,and number of DRAM modules vary depending on the CPU and memory configuration ,for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.* Non-ECC ,un-buffered DDR5 memory supports On-Die ECC function. |
| maximum-memory-supported |
192GB |
| channel-supported |
Dual Channel |
| pci-express-5-0-x16 |
Intel® Core™ Ultra Processors (Series 2)*1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)**Intel® Z890 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x1 slot* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).** When M.2_3 or M.2_4 is enabled ,PCIEX16(G5) will run x8 only. – To ensure compatibility of the device installed ,please refer to https://www.asus.com/support ,for the list of supported peripherals. |
| pci-express-4-0-x16 |
1 x PCI Express 4.0 x16 |
| serial-ata-sata |
4 x SATA 6Gb/s |
| m-2 |
Supports 6 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® Core™ Ultra Processors (Series 2) *M.2_1 slot (Key M) ,type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M) ,type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M) ,type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**M.2_4 slot (Key M) ,type 2242/2260/2280 (supports PCIe 5.0 x4 mode)Intel® Z890 ChipsetM.2_5 slot (Key M) ,type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_6 slot (Key M) ,type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports SlimSAS slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately. * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10 ,SATA RAID 0/1/5/10 ,M.2 slot from CPU only supports RAID 0/1/5** When M.2_3 or M.2_4 is enabled ,PCIEX16(G5) will run x8 only. |
| sata-raid |
0/1/5/10 |
| audio-channels |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*- Impedance sense for front and rear headphone outputs- Supports: Jack-detection ,Multi-streaming ,Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panelAudio Features – SupremeFX Shielding Technology- ESS® ES9219 QUAD DAC- Gold-plated audio jacks- Rear optical S/PDIF out port- Premium audio capacitors* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio ,make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
| max-lan-speed |
1 x Intel® 2.5Gb Ethernet1 x Realtek 5Gb EthernetASUS LANGuard |
| wireless-lan |
Wi-Fi 7*2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band**Supports Wi-Fi 7 320MHz bandwidth ,up to 5.8Gbps transfer rate.Bluetooth® v5.4****Wi-Fi features may vary depending on the operating systemFor Windows 11 ,Wi-Fi 7 will require 24H2 or later version for full functions ,Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.For Windows 10 ,only Wi-Fi 6 is supported.** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.*** The Bluetooth® version may vary ,please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| bluetooth |
Yes |
| back-i-o-ports |

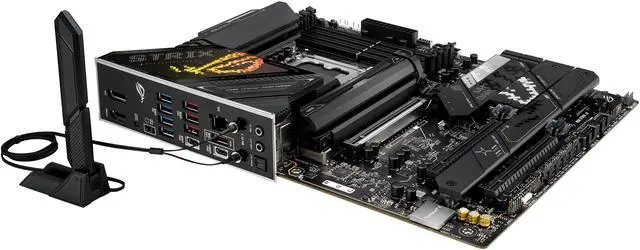

2 x Thunderbolt™ 4 USB Type-C® ports5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A)1 x HDMI™ port1 x Wi-Fi module1 x Intel® 2.5Gb Ethernet port1 x Realtek 5Gb Ethernet port2 x Gold-plated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| other-connectors |
Fan and Cooling Related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headers1 x W_PUMP+ headersPower Related 1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectors1 x 8-pin PCIe Power connectorStorage Related 6 x M.2 slots (Key M) 4 x SATA 6Gb/s ports1 x SlimSAS connector USB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 10Gps connector (supports USB Type-C® ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Alteration PCIe mode switch1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO)1 x ReTry button1 x Start button1 x 10-1 pin System Panel header1 x Thermal Sensor header1 x Thunderbolt™ (USB4®) header |
| windows-11 |
Windows 11 (22H2 & later) |
| form-factor |
ATX |
| dimensions-w-x-l |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| features |
Extreme OC Kit- FlexKey button- ReTry button- Start buttonExtreme Engine Digi+- 10K Black metallic capacitors- MicroFine alloy choke ASUS Q-Design – M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Code- Q-Connector- Q-Dashboard- Q-LED (CPU [red] ,DRAM [yellow] ,VGA [white] ,Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsink- Metal backplate- VRM heatsink designASUS EZ DIY- Backplate- BIOS FlashBack™ button- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen 2 header(s)ROG M.2 PowerBoostFront Panel USB 20Gbps with Quick Charge 4+ Support- Support: up to 60W fast charging and USB Wattage Watcher*- Output: 5/9/15/20V max. 3A ,PPS:3.3–21V max. 3A- Compatible with PD3.0 and PPS* To support 60W ,please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported. |
| first-listed-on-newegg |
January 30 ,2025 |
