Athena Power AP-U1ATX40P8 1U EPS 80 PLUS Server Power Supply – Pappy Mall

Name: Athena Power AP-U1ATX40P8 1U EPS 80 PLUS Server Power Supply - Pappy Mall
SKU: 9A0B0BB0
Availability: InStock

SKU: 9A0B0BB0

$149.18

16 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Track or off orders

Additional information

best-seller-ranking	#4 in Server Power Supplies
brand	Athena Power
model	AP-U1ATX40P8
single-redundant	Single
maximum-power	400W
main-connector	20+4Pin

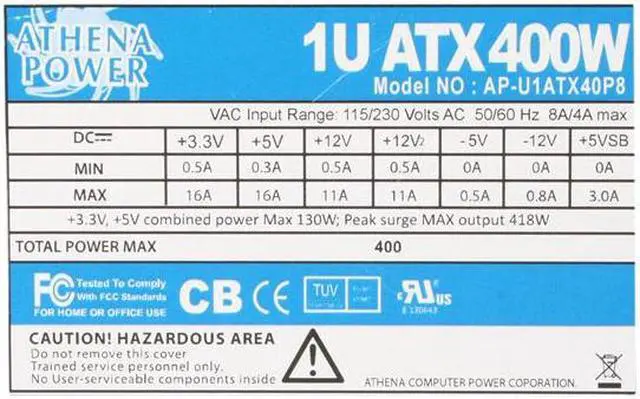

output-current	+3.3V@16A , +5V@16A , +12V1@11A , +12V2@11A , -12V@0.8A , +5VSB@3.0A
input-voltage	88 -264 Volts Ac
input-frequency-range	47 – 63 Hz
fans	2
mtbf	100,000 Hours on Maximum Load at +25°C
hold-up-time	17ms Minimum at Nominal Input Voltage
protection	Over voltage and circuit protection

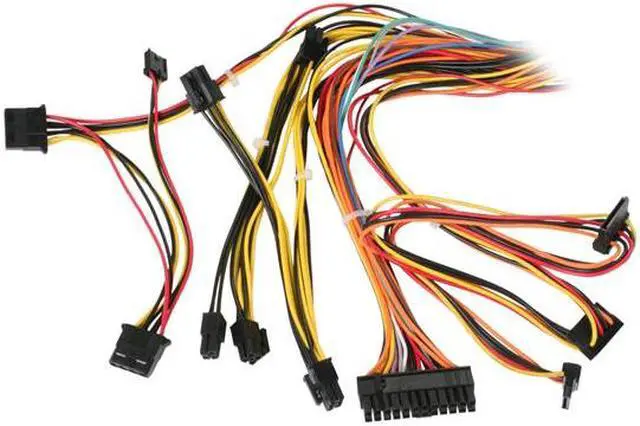

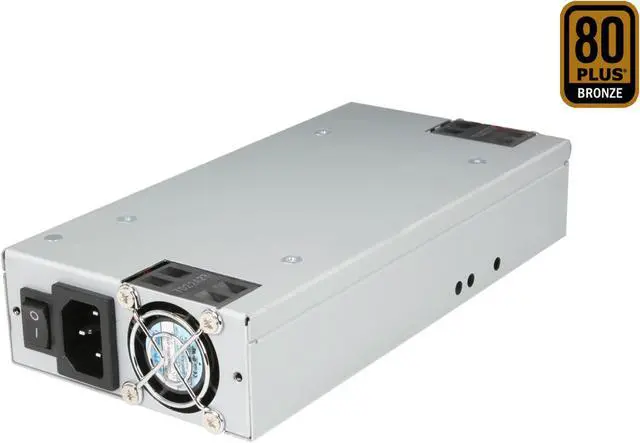

features	80PLUS Bronze CertificationActive PFC (Power Factor Correction) meets EN61000-3-2Full Range Input: 90~264 Volts ACSmart Auto Fan Speed Controller100% Hi-pot , ATE and Burn-in TestedOutput Over Voltage , Short Circuit and Overload Protection.Low Noise and RippleRoHS ComplianceConnectorsATX 24(20+4) Pin x 1P4-12V 4 Pin x 2EPS-12V 8 Pin x 1PCIE 6 Pin x 2SATA 15 Pin x 3Molex 4 Pin x 2Floppy 4 Pin x 1

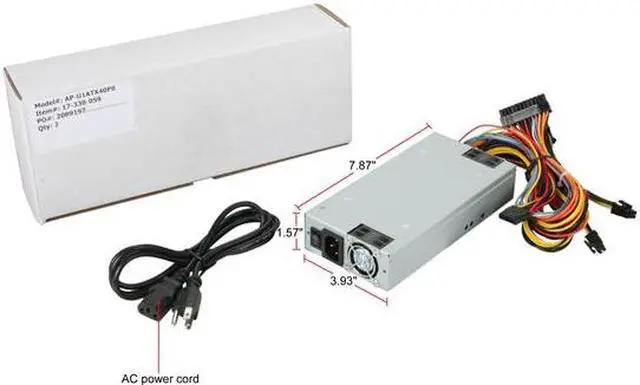

dimensions	3.93" x 1.57" x 7.87"
weight	3.0lbs.
humidity	5 ~ 90% on Operating , 5 ~ 95% on Storage
temperature	Operating: 0°C ~ +50°C on Full Load
package-contents	1 x AP-U1ATX40P81 x Power Cord
first-listed-on-newegg	July 23 , 2021
