GIGABYTE servers and Intel Xeon Scalable Processors deliver incredible 1P/2P performance from edge to data center with incredible gains in I/O throughput and workload demands that need high performing CPUs with large, yet optimized, memory configurations.
-16%

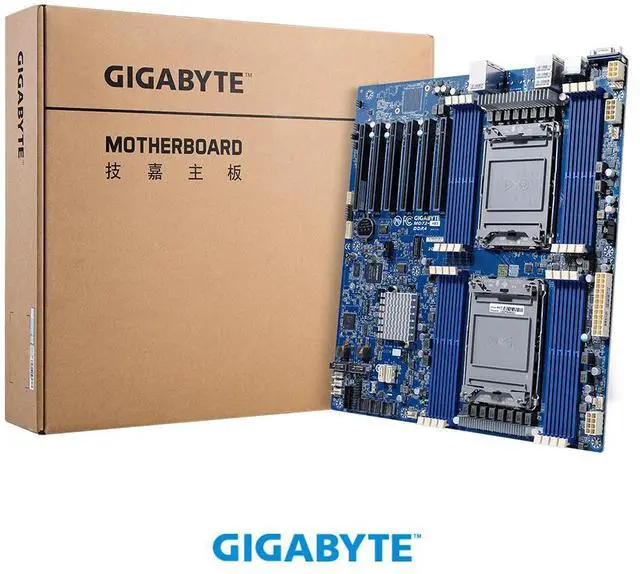

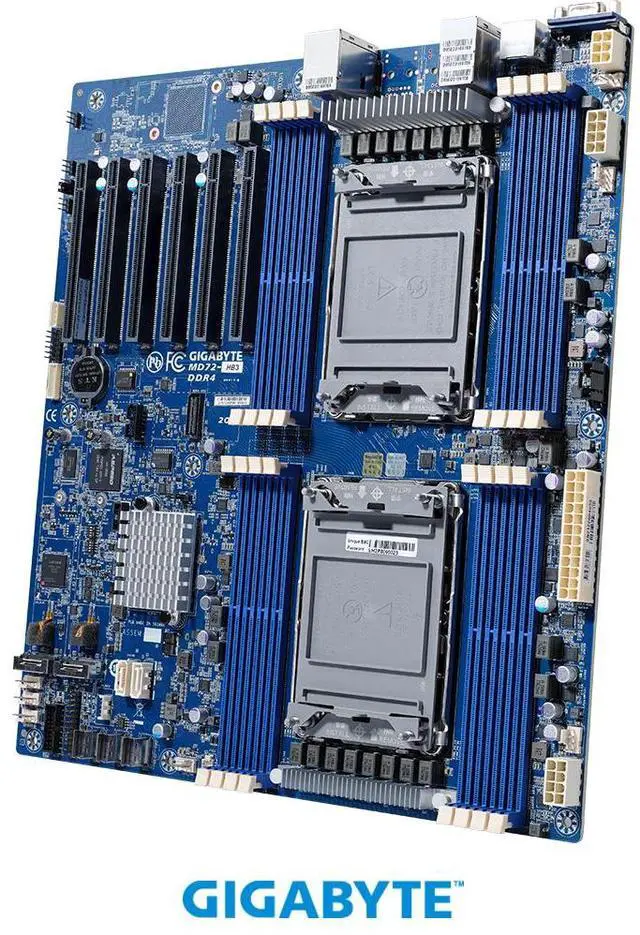

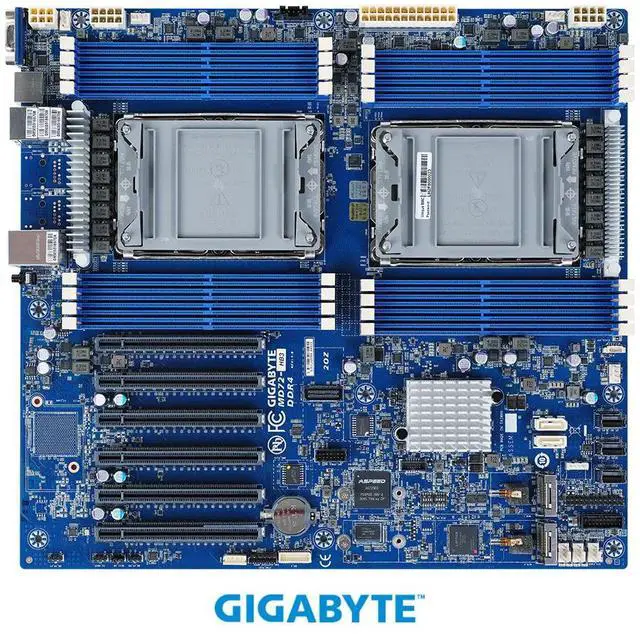

GIGABYTE MD72-HB3 Extended ATX Server Motherboard – Pappy Mall
Original price was: $943.14.$792.74Current price is: $792.74.
16
People watching this product now!
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Additional information
| best-seller-ranking |
#65 in Server Motherboards |
|---|---|
| brand |
GIGABYTE |
| model |
MD72-HB3 |
| cpu-socket-type |
Dual Socket P+ |
| cpu-type |
Supports 3rd Generation Intel Xeon Scalable Processors |
| north-bridge |
Intel C621A |
| number-of-ddr4-slots |
16 x 288-pin |
| ddr4-standard |
DDR4 3200 |
| maximum-memory-supported |
256GB |
| pci-express-4-0-x16 |
Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot ,from CPU_0Slot_5: 1 x PCIe x16 (Gen4 x16 bus) slot ,from CPU_1Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot ,from CPU_1Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot ,from CPU_0Slot_2: 1 x PCIe x16 (Gen4 x16 bus) slot ,from CPU_0Slot_1: 1 x PCIe x16 (Gen4 x16 bus) slot ,from CPU_1 |
| sata |
2 x 7-pin SATA 6Gb/s ports |
| sata-raid |
0/1/10/5 |
| sas |
3 x SlimSAS with 12 x SATA 6Gb/s ports |
| m-2 |
2 x M.2 slots:- M-key- PCIe Gen4 x4 per slot- Supports NGFF-22110/2280 cards- From CPU |
| onboard-video-chipset |
Aspeed AST2600 |
| lan-chipset |
Intel I210-AT |
| lan-speed |
10/100/1000Mbps |
| max-lan-speed |
1Gbps |

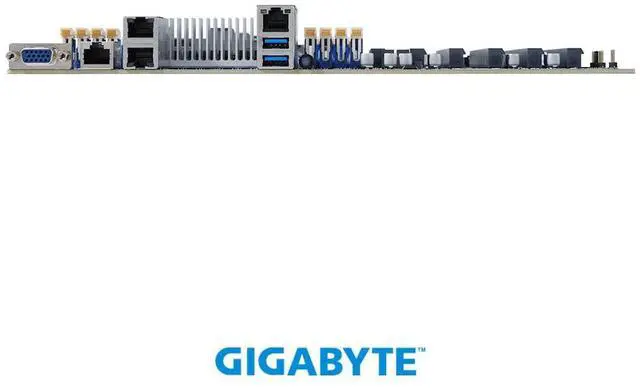

| back-i-o-ports |
2 x USB 3.01 x VGA1 x COM (RJ45 type)2 x RJ451 x MLAN1 x ID button with LED |
| other-connectors |
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x 6-pin PCIe power connectors3 x SlimSAS connectors2 x 7-pin SATA connectors2 x M.2 slots1 x HDD back plane board header2 x CPU fan headers5 x System fan headers1 x USB 3.0 header1 x TPM header1 x VROC connector1 x Front panel header1 x PMBus connector1 x IPMB connector1 x Clear CMOS jumper1 x BIOS recovery jumper1 x Case open header |
| form-factor |
Extended ATX |
| dimensions-w-x-l |
12" x 13" |
| package-contents |
1 x MD72-HB11 x I/O shield1 x Quick start guide1 x SlimSAS for 4 x SATAIII 6Gb/s cables |
| first-listed-on-newegg |
April 22 ,2025 |
