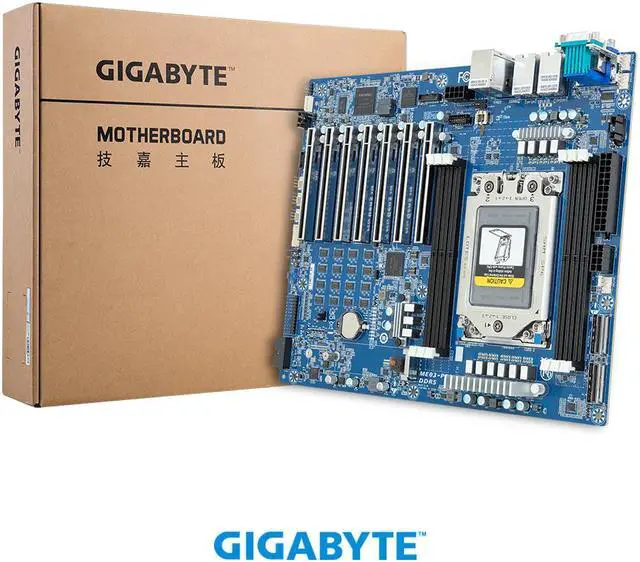

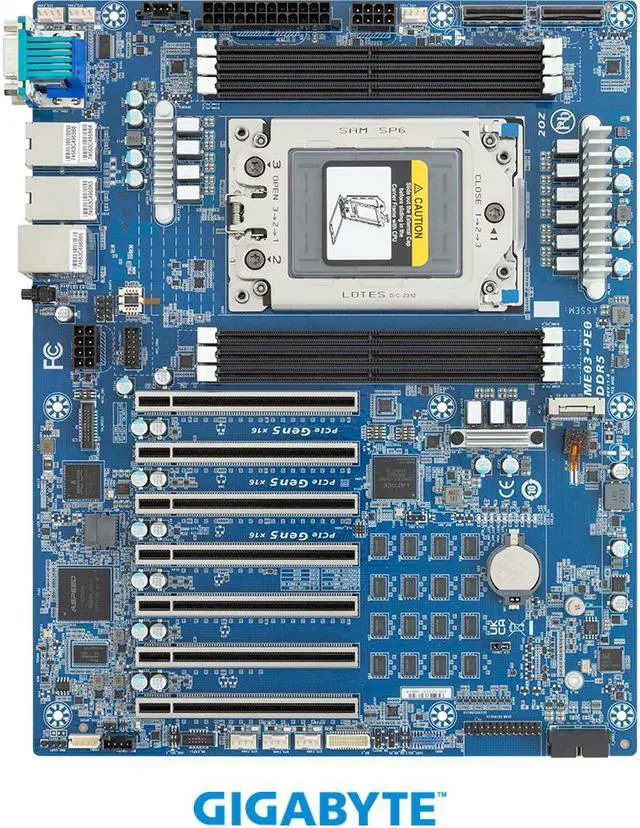

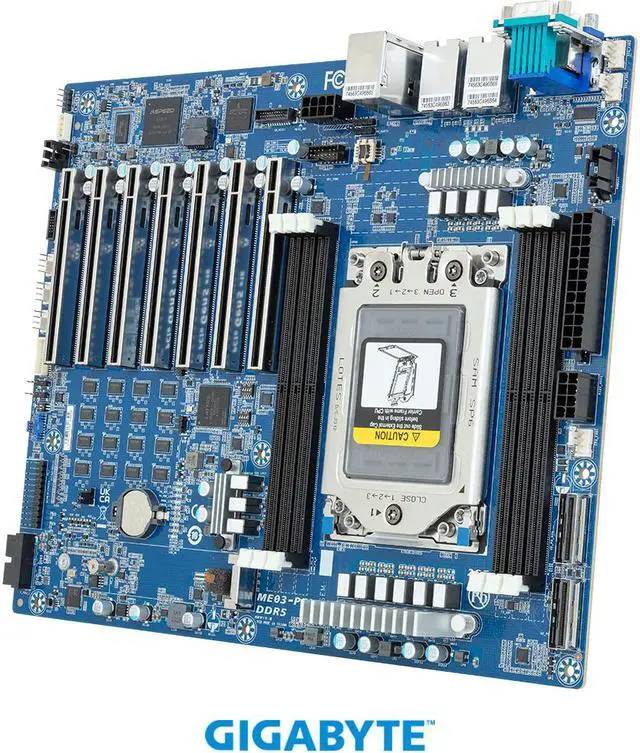

GIGABYTE ME03-PE0 Motherboard – AMD EPYC™ 8004 – ATX UP – Newegg.com – Pappy Mall
$623.23
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| best-seller-ranking |
#80 in Server Motherboards |
|---|---|
| brand |
GIGABYTE |
| model |
ME03-PE0 |
| cpu-socket-type |
Socket SP6 |
| cpu-type |
AMD EPYC 8004 Series |
| number-of-processor-support |
1 |
| cpu-features |
Single processor ,cTDP up to 225W |
| memory-slots |
6 x DDR5 288-pin |
| memory-standard |
DDR5 4800 |
| channel-supported |
Six Channel |
| registered |
Yes |
| pci-express-5-0-x16 |
Slot_7: PCIe x16 (Gen5 x16)Slot_6: PCIe x16 (Gen5 x16)Slot_5: PCIe x16 (Gen5 x16)Slot_4: PCIe x16 (Gen4 x8)Slot_3: PCIe x16 (Gen4 x16 or x8) ,shared with Slot_4Slot_2: PCIe x16 (Gen4 x8)Slot_1: PCIe x16 (Gen4 x16 or x8) ,shared with Slot_2 |
| other-slots |
2 x MCIO 8i (PCIe Gen5 x8 or SATA) |
| m-2 |
1 x M.2 (2280/22110) ,PCIe Gen3 x4 |
| onboard-video-chipset |
Aspeed AST2600 |
| lan-chipset |
Broadcom BCM5720 |
| lan-speed |
10/100/1000Mbps |
| max-lan-speed |
2 x 1Gbps |
| back-i-o-ports |

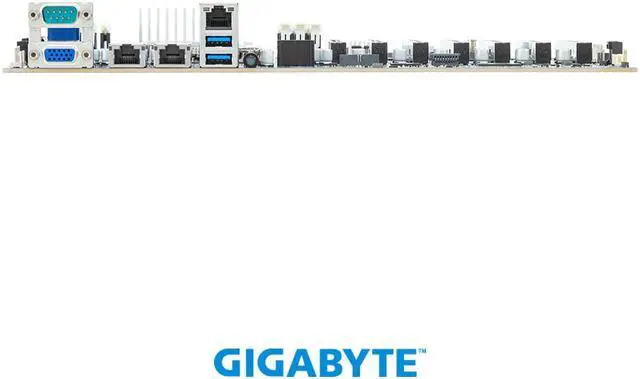

2 x USB 3.2 Gen1 ports (Type-A)1 x VGA port1 x COM port2 x RJ45 ports1 x MLAN port1 x ID button with LED |
| onboard-usb |
1 x USB 3.2 Gen1 x2 header |
| other-connectors |
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header5 x System fan headers1 x M.2 slot2 x MCIO 8i connectors1 x Front panel header1 x Backplane board header1 x PMBus connector1 x IPMB connector1 x TPM header |
| form-factor |
ATX |
| dimensions-w-x-l |
12" x 10" |
| package-contents |
1 x ME03-PE01 x I/O shield1 x Quick start guide1 x MCIO 8i to 8 x SATA 6Gb/s cable (600mm) |
| first-listed-on-newegg |
October 28 ,2024 |
