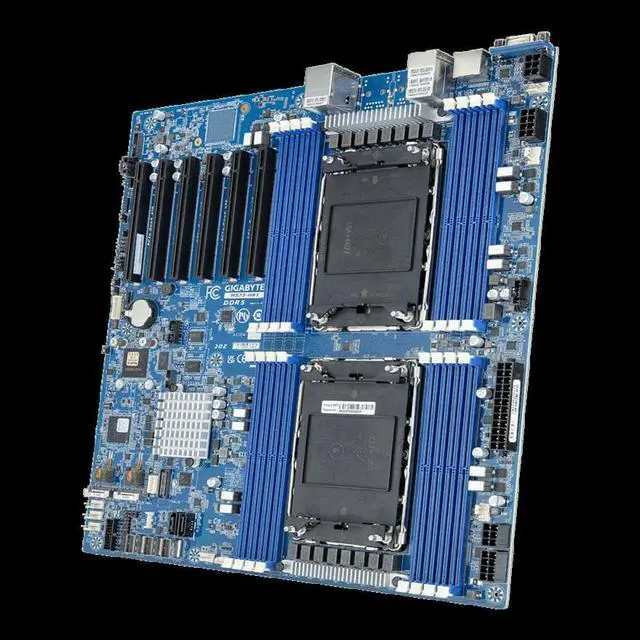

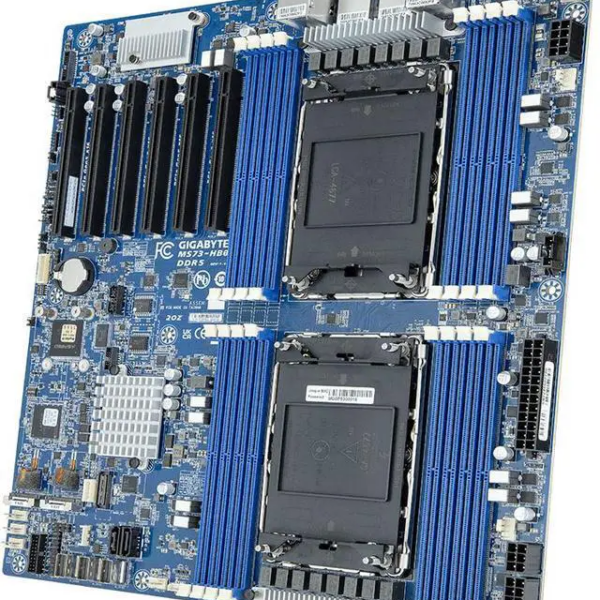

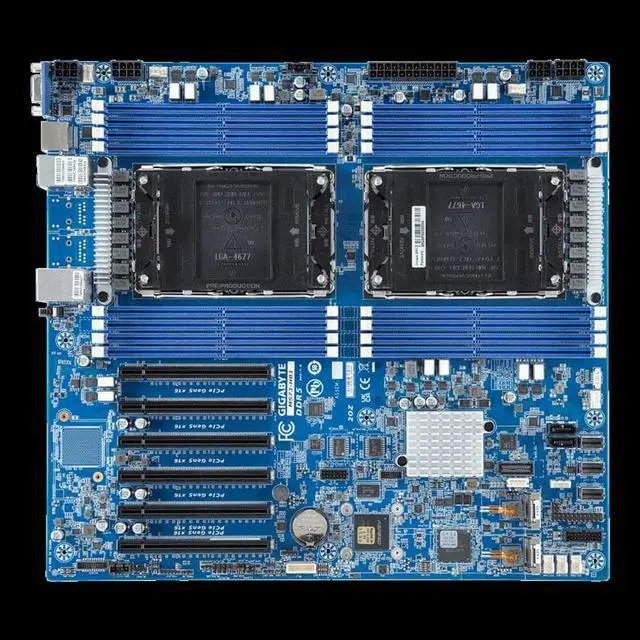

GIGABYTE MS73-HB1 Server Motherboard Socket E LGA 4677 4th Gen. Intel® Xeon® Scalable DP Motherboard – Pappy Mall
$769.32
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| brand |
GIGABYTE |
|---|---|
| model |
MS73-HB1 |
| cpu-socket-type |
LGA 4677 |
| cpu-type |
4th Gen Intel Xeon Scalable ,5th Gen Intel Xeon Scalable |
| number-of-processor-support |
2 |
| cpu-features |
Dual processor ,TDP up to 270WNote: If only 1 CPU is installed ,some PCIe or memory functions might be unavailable. |
| north-bridge |
Intel C741 |
| memory-slots |
16 x DDR5 288-pin |
| memory-standard |
DDR5 5600 |
| maximum-memory-supported |
4TB |
| channel-supported |
Eight Channel |
| registered |
Yes |
| pci-express-5-0-x16 |
Slot_6: PCIe x16 (Gen5 x16) slot ,from CPU_0Slot_5: PCIe x16 (Gen5 x16) slot ,from CPU_1Slot_4: PCIe x16 (Gen5 x16) slot ,from CPU_1Slot_3: PCIe x16 (Gen5 x16) slot ,from CPU_0Slot_2: PCIe x16 (Gen5 x16) slot ,from CPU_0Slot_1: PCIe x16 (Gen5 x16) slot ,from CPU_1 |
| sata |
2 x SATA 6.0Gb/s |
| sata-raid |
0/1/5/10 |
| sas |
3 x SlimSAS connectors for 12 x SATA 6Gb/s |
| m-2 |
2 x M.2 slots:- M-key- PCIe Gen4 x4 ,from CPU_0- Support 2280/22110 cards |
| onboard-video-chipset |
Aspeed AST2600 |
| lan-chipset |
Intel I210-AT |
| lan-speed |
10/100/1000Mbps |
| second-lan-chipset |
Intel I210-AT |
| second-lan-speed |
10/100/1000Mbps |
| max-lan-speed |
2 x 1Gbps |

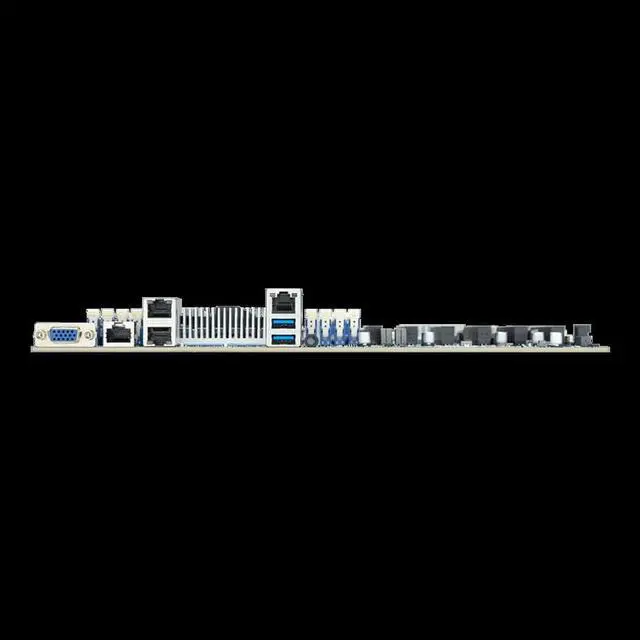

| back-i-o-ports |
2 x USB 3.2 Gen11 x VGA1 x RJ45 serial port2 x RJ451 x MLAN1 x ID button with LED |
| onboard-usb |
1 x USB 3.2 Gen1 header |
| other-connectors |
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors2 x 6-pin ATX 12V power connectors2 x CPU fan headers4 x System fan headers2 x M.2 slots3 x SlimSAS connectors2 x SATA connectors1 x VROC connector1 x Front panel header1 x Backplane board header1 x PMBus header1 x IPMB header1 x TPM header |
| form-factor |
Extended ATX |
| dimensions-w-x-l |
12" x 13" |

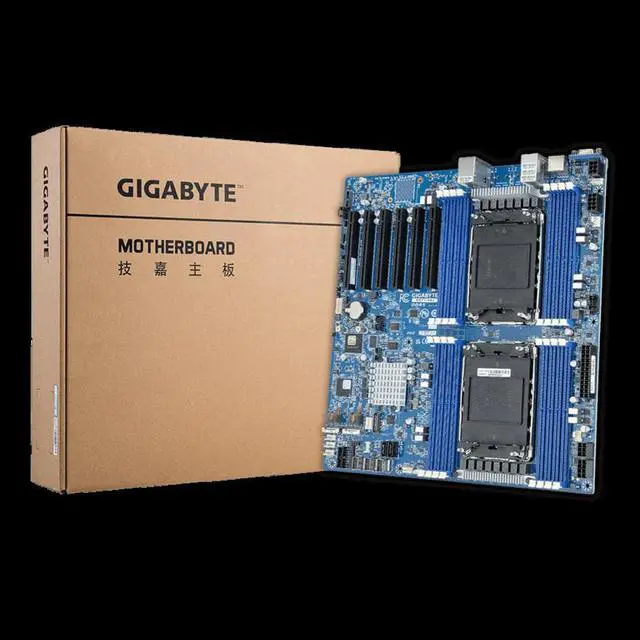

| package-contents |
1 x MS73-HB11 x I/O shield1 x Quick start guide6 x Carriers1 x SlimSAS to 4 x SATA 6Gb/s cable (600mm) |
| first-listed-on-newegg |
April 25 ,2025 |
