GIGABYTE servers and Intel Xeon Scalable Processors deliver incredible 1P/2P performance from edge to data center with incredible gains in I/O throughput and workload demands that need high performing CPUs with large, yet optimized, memory configurations.

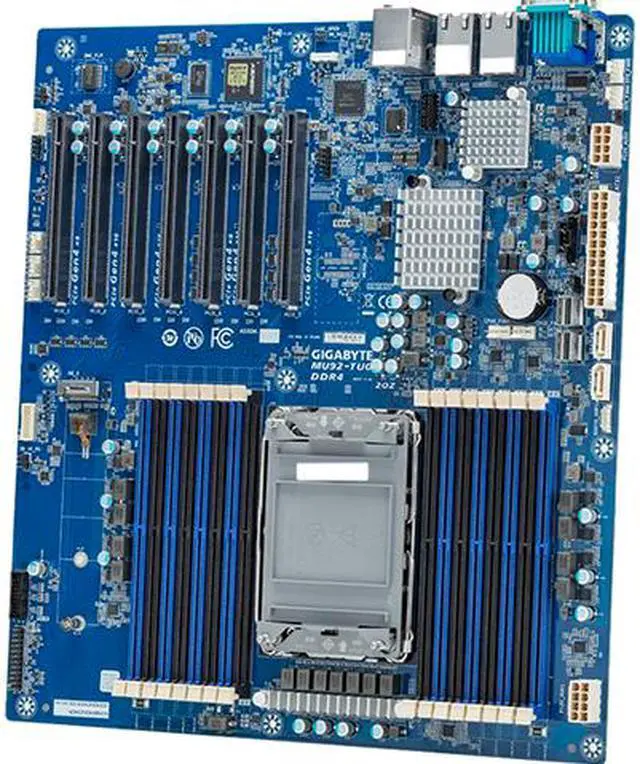

GIGABYTE MU92-TU1 Extended ATX Server Motherboard – Pappy Mall
$663.99
19
People watching this product now!
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Additional information
| brand |
GIGABYTE |
|---|---|
| model |
MU92-TU1 |
| cpu-socket-type |
Socket P+ |
| cpu-type |
Supports 3rd Gen Intel Xeon Scalable ProcessorsSupports Intel Xeon Platinum ,Xeon Gold ,Xeon Silver Processors |
| north-bridge |
Intel C621A |
| number-of-ddr4-slots |
16 x 288-pin |
| ddr4-standard |
DDR4 3200 |
| maximum-memory-supported |
256GB |
| pci-express-4-0-x16 |
Slot_7: 1 x PCIe x16 (Gen4 x16 bus) slotSlot_6: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot ,shared with Slot_5Slot_5: 1 x PCIe x16 (Gen4 x0 or x8 bus) slotSlot_4: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot ,shared with Slot_3Slot_3: 1 x PCIe x16 (Gen4 x0 or x8 bus) slotSlot_2: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot ,shared with Slot_1Slot_1: 1 x PCIe x16 (Gen4 x0 or x8 bus) slot |
| sata |
2 x 7-pin SATA 6Gb/s ports |
| sata-raid |
0/1/10/5 |
| sas |
2 x SlimSAS with 8 x SATA 6Gb/s ports |
| m-2 |
1 x M.2 slot:- M-key- PCIe Gen3 x4 per slot- Supports NGFF-22110/2280 cards |
| onboard-video-chipset |
Aspeed AST2600 |
| lan-chipset |
Intel X710-AT2 |
| lan-speed |
10Gbps |
| max-lan-speed |
10Gbps |
| back-i-o-ports |
2 x USB 3.01 x VGA1 x COM2 x RJ451 x MLAN1 x ID button with LED |
| other-connectors |
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors2 x SlimSAS connectors2 x 7-pin SATA connectors1 x M.2 slot2 x CPU fan headers5 x System fan headers1 x USB 3.0 header1 x TPM header1 x VROC connector1 x Front panel header1 x PMBus connector1 x IPMB connector1 x Clear CMOS jumper1 x BIOS recovery jumper1 x Case open header1 x Buzzer |
| form-factor |
Extended ATX |
| dimensions-w-x-l |
12" x 13" |
| package-contents |
1 x MU92-TU11 x I/O shield1 x Quick start guide1 x SlimSAS for 4 x SATAIII 6Gb/s cable |
| first-listed-on-newegg |
May 09 ,2022 |
