Compute heavy workloads rely on the best and latest CPU technology to deliver excellent performance while the new Xeon line of processors with Intel spans from high-end to more affordable chips. Intel’s new workstation processors bring many important technological advancements that greatly benefit a wide range of disciplines from Engineering to Data Science to Media & Entertainment. PCIe 5.0 provides the highest possible throughput between CPU and GPU or SSD, including support for CXL devices. Couple that with higher CPU performance across all workloads, these new Xeon workstation CPUs can also crunch memory intensive workloads faster with DDR5 memory and AI/DL workloads have more floating point formats to choose from.
Back to products
Gigabyte MW83-RP0 Intel® Xeon® W Workstation Board, Single processor, LGA 4677, Intel® W790 Chipset, 8-Channel DDR5 RDIMM/3DS-RDIMM, 8 x DIMMs, - Pappy Mall
Original price was: $1,025.74.$950.55Current price is: $950.55.

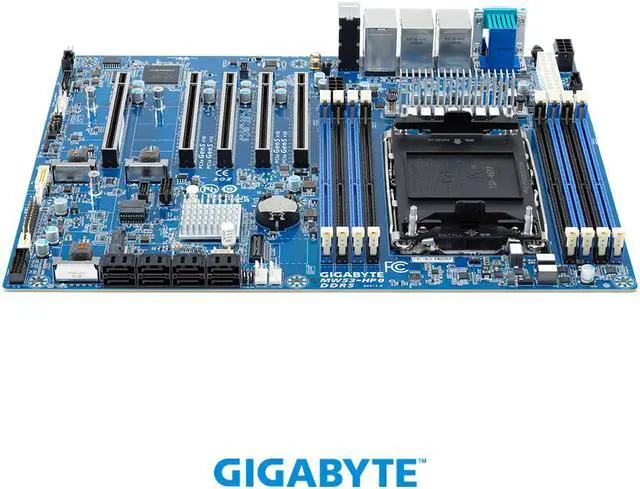

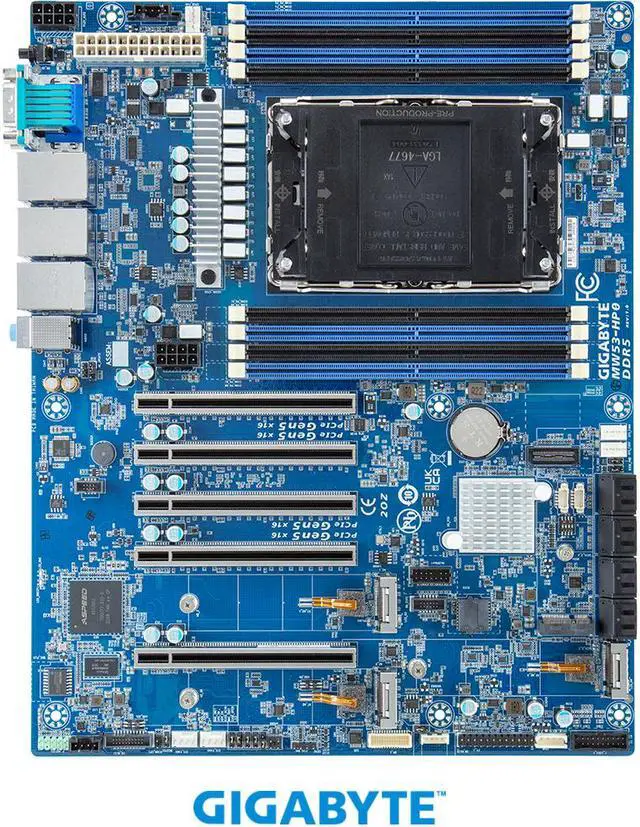

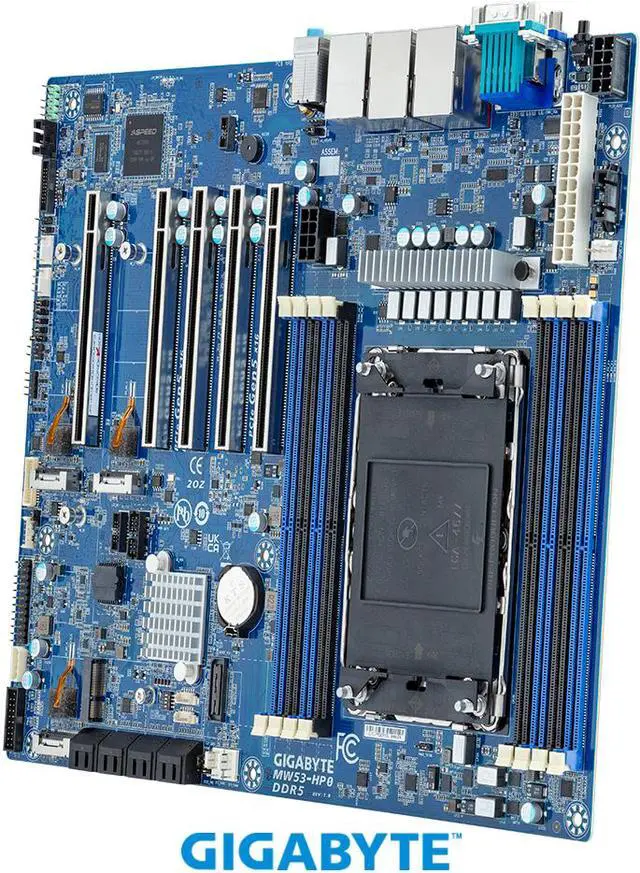

GIGABYTE MW53-HP0 Intel® Xeon® W Workstation Motherboard Board, Single processor, LGA 4677, Intel® W790 Chipset. – Pappy Mall
$756.99
10
People watching this product now!
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Additional information
| best-seller-ranking |
#55 in Server Motherboards |
|---|---|
| brand |
GIGABYTE |
| model |
MW53-HP0 |
| cpu-socket-type |
LGA 4677 |
| cpu-type |
Intel Xeon W-3500* ,W-2500 ,W-3400* ,W-2400 Processors |
| number-of-processor-support |
1 |
| cpu-features |
Single processor ,TDP up to 385W |
| north-bridge |
Intel W790 |
| memory-slots |
8 x DDR5 288-pin |
| memory-standard |
DDR5 4800 |
| maximum-memory-supported |
2TB |
| channel-supported |
Quad Channel |
| registered |
Yes |
| pci-express-5-0-x16 |
Slot_7: PCIe x16 (Gen5 x16) slot ,from CPUSlot_6: PCIe x16 (Gen5 x16) slot ,from CPUSlot_5: PCIe x16 (Gen5 x16) slot ,from CPUSlot_4: PCIe x16 (Gen5 x16) slot ,from CPUSlot_2: PCIe x16 (Gen3 x4) slot ,from PCH |
| sata |
8 x SATA 6.0Gb/s |
| sata-raid |
0/1/10/5 |
| m-2 |
3 x M.2 slots for storage:- M-key- PCIe Gen4 x4 ,from PCH- Support 2280 cards |
| onboard-video-chipset |
Aspeed AST2600 |
| audio-chipset |
Realtek ALC897 |
| audio-channels |
7.1 Channels |
| lan-chipset |
Intel I226-LM |
| lan-speed |
2.5Gbps |
| max-lan-speed |
2 x 2.5Gbps |
| back-i-o-ports |

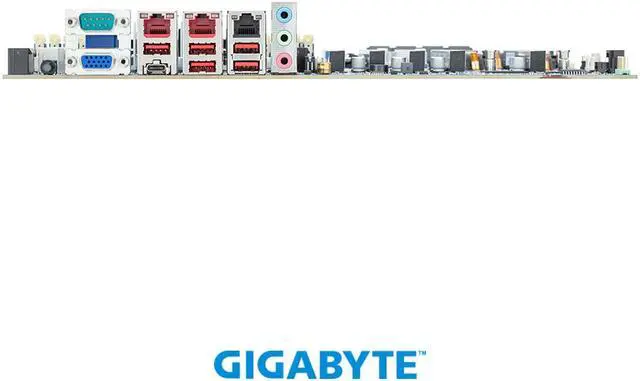

1 x USB 3.2 Gen2x2 (Type-C)5 x USB 3.2 Gen2x1 (Type-A)1 x VGA1 x COM2 x RJ451 x MLAN3 x Audio jacks1 x ID button with LED |
| onboard-usb |
2 x USB 3.2 Gen1 headers |
| other-connectors |
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header4 x System fan headers1 x Front audio header3 x M.2 slots for storage1 x M.2 slot for Wi-Fi8 x SATA connectors1 x VROC connector1 x Front panel header1 x Backplane board header1 x PMBus header1 x IPMB header1 x TPM header |
| form-factor |
ATX |
| dimensions-w-x-l |
12.0" x 9.6" |
| package-contents |

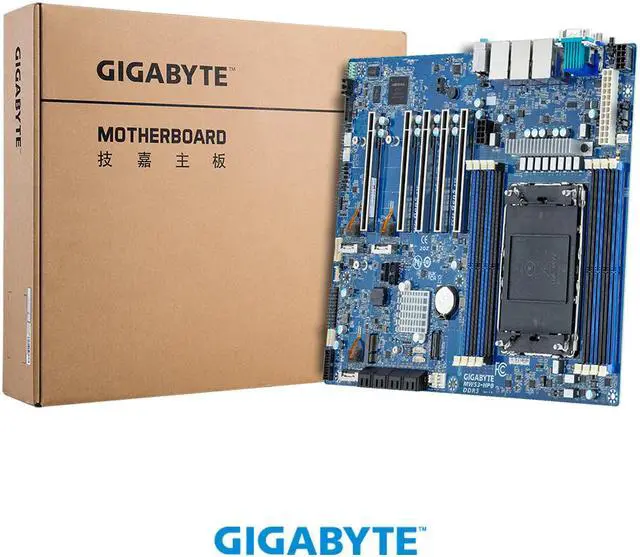

1 x MW53-HP01 x I/O shield1 x Quick start guide*1 x W-2500/2400 (E1B) carrier3 x M.2 heatsinks4 x SATA 6Gb/s cables (500mm)*Carriers for Intel Xeon W-3500/3400 Processors are not included. |
| first-listed-on-newegg |
August 07 ,2023 |
