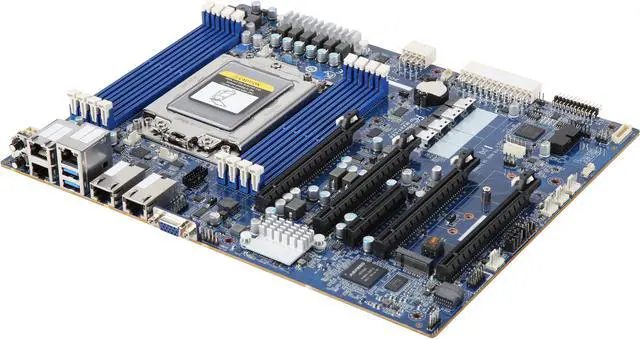

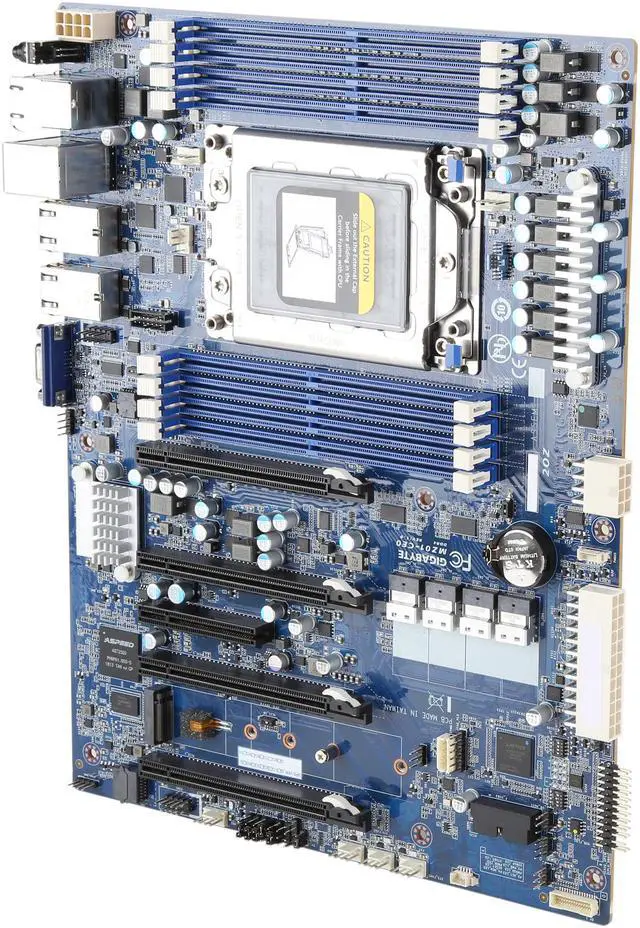

GIGABYTE MZ01-CE0 Motherboard – AMD EPYC™ 7003/7002 – ATX UP – Newegg.com – Pappy Mall
$507.32
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| best-seller-ranking |
#45 in Server Motherboards |
|---|---|
| brand |
GIGABYTE |
| model |
MZ01-CE0 |

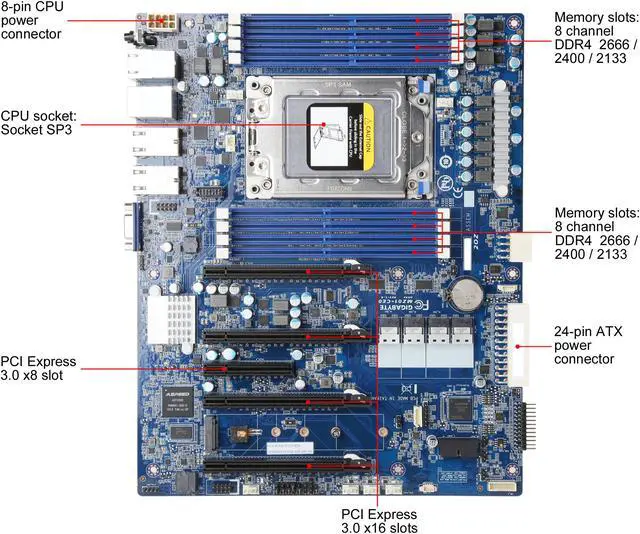

| cpu-socket-type |
Socket SP3 |
| cpu-type |
AMD EPYC 7000 series processor familySingle processor ,14nmUp to 32-core ,64 threadsTDP up to 180W |
| ddr4-standard |
DDR4 2666 ,2400 ,2133 MHz |
| maximum-memory-supported |
RDIMM modules up to 64GB supportedLRDIMM modules up to 128GB supported |
| channel-supported |
8-Channel |
| pci-express-3-0-x16 |
Slot_7 (PCIe_7): 1 x PCIe x16 (Gen3 x16 bus)Slot_5 (PCIe_5): 1 x PCIe x16 (Gen3 x16 bus)Slot_3 (PCIe_3): 1 x PCIe x16 (Gen3 x16 bus)Slot_1 (PCIe_1): 1 x PCIe x16 (Gen3 x16 bus) |
| pci-express-x8 |
Slot_4 (PCIe_4): 1 x PCIe x8 (Gen3 x8 bus) |
| other-slots |
1 x M.2 slot:M-keyPCIe Gen3 x4Supports NGFF-2242/2260/2280/22110 cards |
| sata |
4 x SlimSAS for 16 x SATA III 6Gb/s ports |
| onboard-video-chipset |
Aspeed AST2500 |

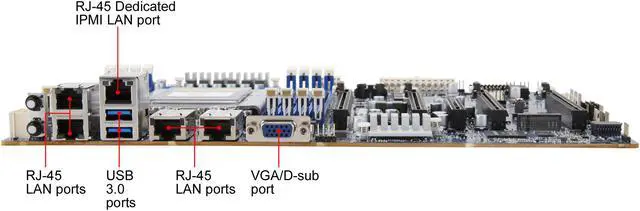

| lan-chipset |
2 x 10Gb/s BASE-T LAN ports (Intel X550-AT2)2 x 1Gb/s LAN ports (Intel I210-AT)1 x 10/100/1000 management LAN |
| video-ports |
1 x VGA port |
| rj45 |
4 x RJ45 |
| usb-3-0 |
2 x USB 3.0 |
| features |
AMD EPYC 7000 series processor family8-Channel RDIMM ,LRDIMM DDR4 ,8 x DIMMs2 x 10Gb/s BASE-T LAN ports (Intel X550-AT2)2 x 1Gb/s LAN ports (Intel I210-AT)1 x dedicated management port4 x SlimSAS (for 16 x SATA 6Gb/s) portsUltra-Fast M.2 with PCIe Gen3 x4 interfaceUp to 5 x PCIe Gen3 expansion slotsAspeed AST2500 remote management controller |
| form-factor |
ATX |
| dimensions-w-x-l |
12.0" x 9.6" |

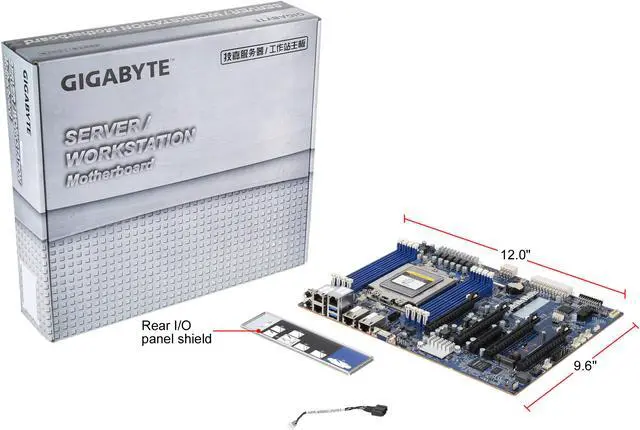

| package-contents |
1 x MZ01-CE01 x I/O shield1 x Quick start guide2 x SlimSAS for 8 x SATAIII 6Gb/s cables |
| first-listed-on-newegg |
March 19 ,2019 |
