AMD EPYC™ 4004 Series Processors are a welcome addition to the 4th Gen AMD EPYC™ processor family, lowering the threshold for businesses and hosting services that have been wanting to move to a platform with a server OS and other enterprise features, yet at an optimal price point in GIGABYTE solutions. SMB and hosting services rely on server-grade reliability so they can continue running 24×7. At the same time, they need to have a higher degree of manageability. On top of validating, GIGABYTE provides GIGABYTE Management Console (GMC) for system management and GIGABYTE Server Management (GSM) software for monitoring multiple servers.

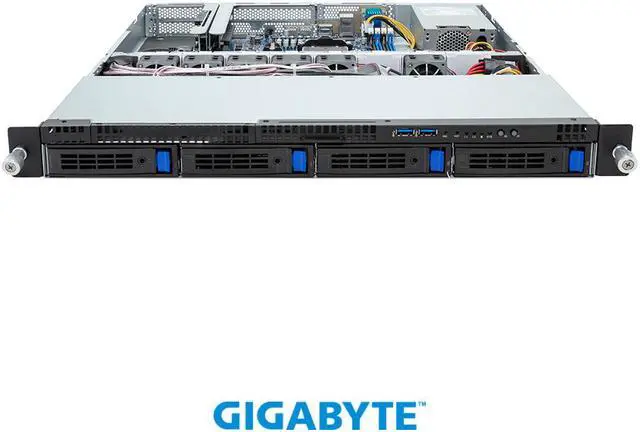

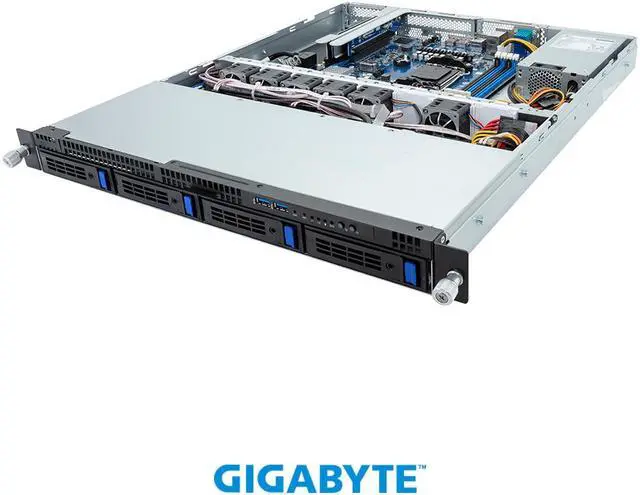

GIGABYTE R123-C00 (rev. AA01) Rack Server – AMD EPYC™ 4005/4004 & Ryzen™ 9000/7000 – 1U UP 4-Bay SATA – Pappy Mall
$1,145.34
18
People watching this product now!
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Additional information
| best-seller-ranking |
#5 in Server Barebones |
|---|---|
| brand |
GIGABYTE |
| model |
R123-C00-AA01 |
| form-factor |
1U |
| workload |
General Purpose Server |
| cpu-type |
AMD Ryzen 7000 Series |
| cpu-socket |
AM5 |
| installed-cpu |
No CPU Installed |
| max-processors |
1 |
| cpu-features |
Single processor ,5nm technologyTDP up to 105W*Overclocking not supported due to thermal limitation. |
| north-bridge |
AMD B650E |
| memory-slots |
4 x 288Pin |
| installed-memory-size |
No Memory Installed |
| memory-type-supported |
DDR5 memory supported onlyDual Channel memory architectureDIMM modules up to 32GB supportedECC Unbuffered DIMM 1Rx8/2Rx8 modules supportedNon-ECC Unbuffered DIMM 1Rx8/2Rx8/1Rx16 modules supportedMemory speed: up to 5200 MHz (1DPC) ,3600 MHz (2DPC) |
| channel-supported |
Dual Channel |
| ecc-supported |
Yes |
| installed-hdd |
No Storage Installed |
| sata-raid |
RAID 0/1/10 |
| m-2 |
1 x M.2 slot:- M-key- PCIe Gen4 x4 ,from CPU- Supports 2242/2280 cards |
| gpu-vpu |
Integrated in Aspeed AST26002D Video Graphic Adapter with PCIe bus interface1920x1200@60Hz 32bpp ,DDR4 SDRAM |
| pci-express |
Riser Card CRC1014:- *1 x PCIe x16 (Gen5 x16) FHHL slot ,from CPURiser Card CRC1021:- 1 x PCIe x4 (Gen4 x4) low-profile slot ,from CPU- 1 x PCIe x4 (Gen4 x4) low-profile slot ,from FCH*Please select 500W power supply for 75W GPU support. |
| first-lan |
2 x 1Gb/s LAN ports (2 x Broadcom BCM5720)Support NCSI function1 x 10/100/1000 management LAN |
| max-lan-speed |
1 Gigabit |
| hot-swap-bays |
4 x 3.5"/2.5" SATA hot-swappable bays |
| buttons |
1 x NMI button1 x Reset button |
| leds |
1 x Power button with LED1 x ID button with LED2 x LAN activity LEDs1 x HDD activity LED1 x System status LED |
| front-usb |
2 x USB 3.2 Gen1 |
| com |
1 |
| ps-2 |
1 |

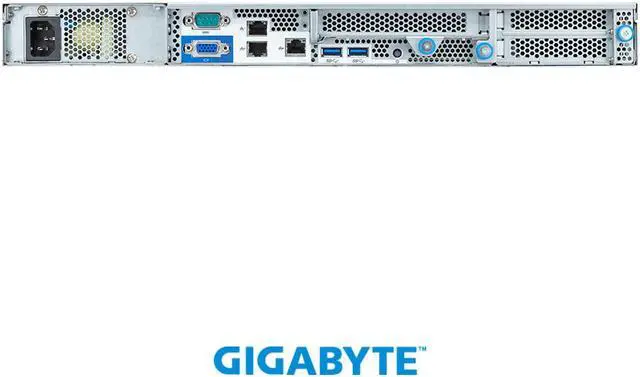

| rear-usb |
2 x USB 3.2 Gen1 |
| rj45 |
2 |
| other-ports |
Internal I/O2 x USB 3.2 Gen12 x USB 2.01 x Front panel header1 x Back panel header5 x Fan headers (4 pin)1 x M.2 slot1 x TPM header1 x PMBus header |
| max-power |
Single 400W 80 PLUS Gold power supplyAC Input:- 100-240V~ ,6-3A ,50-60HzDC Output:- Max 400W ,100-240V~+ 12V ,33A+ 5V ,16A+ 3.3V ,14A+ 5Vsb ,3A |
| system-compatibility |
Windows 10 21H2 (x64)Windows 11 (x64) |
| fans |
6 x 40x40x28mm (25,000rpm) |
| temperature |
Operating temperature: 10°C to 35°CNon-operating temperature: -40°C to 60°C |
| humidity |
Operating humidity: 8%-80% (non-condensing)Non-operating humidity: 20%-95% (non-condensing) |
| dimensions |
430 x 43.5 x 536 mm |
| weight |
Net Weight: 13.87 kg |
| package-contents |
AC Input:- 100-240V~ ,8-4A ,50-60HzDC Output:- Max 500W ,100-240V~+ 12V ,41A+ 5V ,16A+ 3.3V ,14A+ 5Vsb ,3ASystem ManagementAspeed® AST2600 management controllerGIGABYTE Management Console (AMI MegaRAC SP-X) web interfaceDashboardHTML5 KVMSensor Monitor (Voltage ,RPM ,Temperature ,CPU Status …etc.)Sensor Reading History DataFRU InformationSEL Log in Linear Storage ,Circular Storage PolicyHardware InventoryFan ProfileSystem FirewallPower ConsumptionPower ControlAdvanced power cappingLDAP ,AD ,RADIUS SupportBackup & Restore ConfigurationRemote BIOS/BMC/CPLD UpdateEvent Log FilterUser ManagementMedia Redirection SettingsPAM Order SettingsSSL SettingsSMTP SettingsOS CompatibilityWindows 10 21H2 (x64)Windows 11 (x64)System Fans6 x 40x40x28mm (25,000rpm)Operating PropertiesOperating temperature: 10°C to 35°COperating humidity: 8%-80% (non-condensing)Non-operating temperature: -40°C to 60°CNon-operating humidity: 20%-95% (non-condensing)WeightNet Weight: 13.87 kgGross Weight: 15.87 kgPackaging Dimensions815 x 588 x 227 mmPackaging Content1 x R123-C001 x CPU heatsink1 x 2-Section Rail kit |
| first-listed-on-newegg |
April 19 ,2024 |
