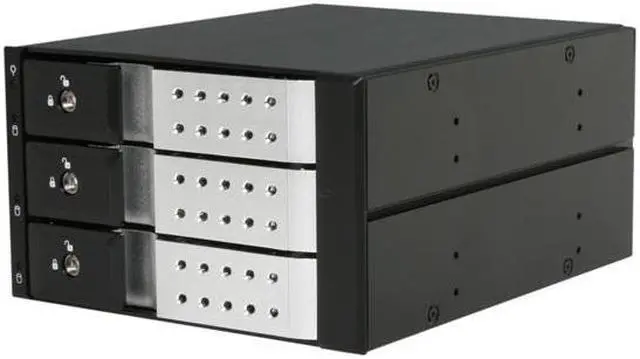

iStarUSA BPN-DE230SS-SILVER 2×5.25″ to 3×3.5″ SAS/SATA 6.0 Gb/s Trayless Hot-Swap Cage – OEM – Pappy Mall

  iStarUSA BPN-DE230SS Two 5.25in. to Three 3.5in. SAS/SATA Tray-less Hot-Swap Cage Create more space for hard drives with hot-swap capability – the BPU-230SATA series supports RAID 1 / 0 / 1+0 / 5 configurations for high performance or redundancy data applications. Aluminum construction provides light weight but strong stability, and an extra 70mm fan keeps hard drives working at maximum performance. High density multi-disk storage backplane allows multiple 3.5in. SAS/SATA hard drives to be mounted into two standard 5.25in. slots. Aluminum construction provides great heat dissipation required for high performance SAS/SATA drives, and is designed with excellent front to back vent airflow. Applications: Digital Audio Editing, Video Editing (SD or HD), Security System, SOHO SMEs With Limited HDD Tray, and Data Protection or Disk-to-Disk Backup. Features Aluminum Frame, designed for heavy-duty purposes Supports SAS I/II, SATA I/II/III Hard Drives Data Transfer Rate up to 6Gbps Integrative shaping and aluminum design for quickest heat sink Aluminum front bezel with metal key lock mechanism for double safety Removable fan cover for easy maintenance Multi-functional LED Indication Support Hot-Swap and RAID Configuration (needs an additional RAID controller) Low-noise Design with Fan-speed Control 4TB Hard Drive Compatible   Specifications Model Number BPN-DE230SS RoHS Compliance Version Yes Standard Drive Bays 5.25in. Drives: Two Hotswap 3.5in.: Three Hotswap HDD Type: 3.5in. SAS I/II and SATA I/II/III Indicators Blue for Power on / Purple for HDD Access Security Key Lock Material of Front Bezel Aluminum Material of Handle Aluminum Material of Main Chassis Aluminum Color of Front Bezel Black / Blue / Red / Silver Color of Main Chassis Black Cooling Fan 1 x 70mm Ordering Information (Part Number) Black Handle:BPN-DE230SS-BLACK Blue Handle:BPN-DE230SS-BLUE Red Handle:BPN-DE230SS-RED Silver Handle:BPN-DE230SS-SILVER Dimensions (W x H x D) 5.71in. x 3.35in. x 7.64in. 145mm x 85.1mm x 194.1mm What’s in the Box
