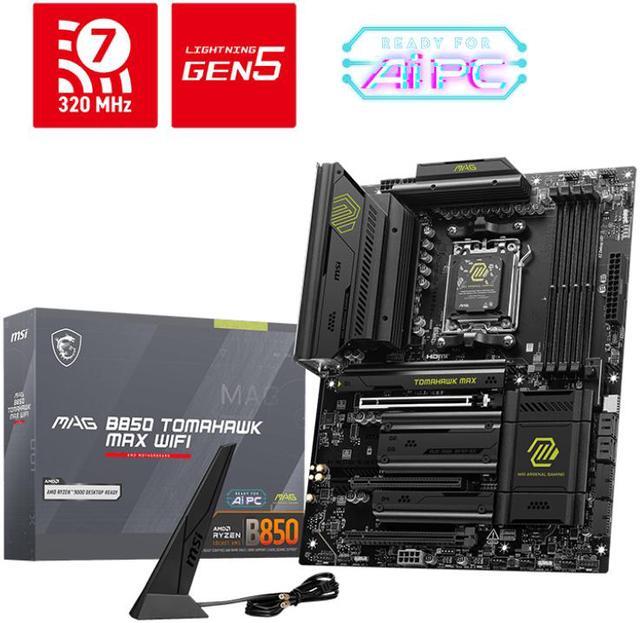

MSI MAG B850 TOMAHAWK MAX WIFI AM5 AMD B850 SATA 6Gb/s 5G Network Wi-Fi7 DDR5 Motherboard – Pappy Mall
$257.67
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| best-seller-ranking |
#10 in AMD Motherboards |
|---|---|
| brand |
MSI |
| model |
MAG B850 TOMAHAWK MAX WIFI |
| cpu-socket-type |
AM5 |
| cpu-type |
Ryzen 7000 Series ,Ryzen 8000 Series ,Ryzen 9000 Series |
| chipset |
AMD B850 |
| number-of-memory-slots |
4x288pin (DDR5) |
| memory-standard |
Up to DDR5 8400+ MT/s (OC) |
| maximum-memory-supported |
256GB |
| channel-supported |
Dual Channel |
| ecc-supported |
Non-ECC |
| memory-feature |
Memory Support DDR5 8400 – 5600 (OC) MT/s ,5600 – 4800 (JEDEC) MT/sRyzen 9000 Series Processors max. overclocking frequency:- 1DPC 1R Max speed up to 8400+ MT/s- 1DPC 2R Max speed up to 6400+ MT/s- 2DPC 1R Max speed up to 6400+ MT/s- 2DPC 2R Max speed up to 4800+ MT/sSupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOSupports Dual-Channel modeSupports Non-ECC ,Un-buffered memorySupports CUDIMM ,Clock Driver bypass mode only |
| pci-express-5-0-x16 |
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| pci-express-x4 |
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)*PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS ,but this will disable the M2_3 slot |
| pci-express-x1 |
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| serial-ata-sata |
4 x SATA 6Gb/s |
| m-2 |
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,supports 22110/2280 devicesM.2_2 Source (From CPU) supports up to PCIe 5.0 x4 ,supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 ,supports 2280/2260 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 ,supports 2280/2260 devices*PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS ,but this will disable the M2_3 slot.** Please refer to the manual for M.2 SSD heatsink restrictions |
| sata-raid |
Supports RAID 0 ,RAID 1 and RAID 10 for M.2 NVMe storage devices |
| audio-chipset |
Realtek ALC4080 |
| audio-channels |
7.1 Channels |
| lan-chipset |
Realtek 8126VB |
| max-lan-speed |
5Gbps |
| wireless-lan |
Wi-Fi 802.11 be |
| bluetooth |
Bluetooth 5.4 |
| back-i-o-ports |
1 x Clear CMOS Button ,1 x Flash BIOS Button ,1 x LAN (RJ45) ,2 x Antenna Bracket ,2 x Audio Jacks ,2 x USB 3.2 Gen 2 Type-A ,3 x USB 3.2 Gen 2 Type-C ,4 x USB 2.0/1.1 |
| onboard-usb |
4 x USB 2.0 ports4 x USB 5Gbps Type A ports1 x USB 20Gbps Type C ports |
| other-connectors |
1 x CPU Fan1 x Combo Fan (Pump_Sys Fan)6 x System Fan1 x EZ Conn-header (JAF_2)2 x Front Panel (JFP)1 x Chassis Intrusion (JCI)1 x Front Audio (JAUD)3 x Addressable V2 RGB LED connector (JARGB_V2)1 x RGB LED connector(JRGB)1 x TPM pin header(Support TPM 2.0) |
| form-factor |
ATX |
| led-lighting |
4 x EZ Debug LED1 x EZ Memory Detection LED |
| dimensions-w-x-l |
12.0" x 9.6" |
| power-pin |
1 x Power Connector(ATX_PWR)2 x Power Connector(CPU_PWR)1 x Power Connector(PCIE_PWR 8pin) |
| windows-11 |
Windows 11 64-bit |
| first-listed-on-newegg |
January 10 ,2025 |
