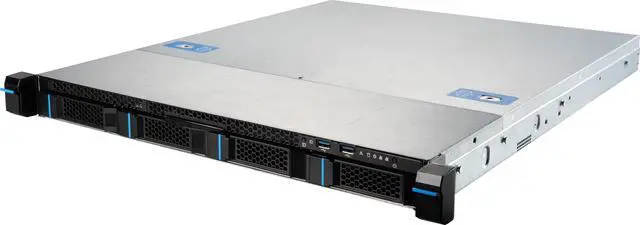

MSI S1102-01 1U Server Barebone (1) AMD Socket 4004/4005 Series Procesor AM5 AMD B650 – Pappy Mall
Original price was: $1,149.27.$650.87Current price is: $650.87.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| best-seller-ranking |
#19 in Server Barebones |
|---|---|
| brand |
MSI |
| model |
S1102-01 |
| form-factor |
1U |
| workload |
General Purpose Server |
| cpu-type |
Single AMD Ryzen 7000 Series Processor ,up to TDP 105W |
| cpu-socket |
(1) AMD Socket AM5 |
| installed-cpu |
No CPU Installed |
| max-processors |
1 |
| north-bridge |
AMD B650 |
| memory-slots |
(4) DDR5 DIMM slots ,2DPC ,ECC/non-ECC UDIMM |
| installed-memory-size |
No Memory Installed |
| max-memory-supported |
Max. Capacity per DIMM: 48GB |
| memory-type-supported |
Max. Frequency 5200MT/s(1DPC) and 3600MT/s(2DPC) |
| ecc-supported |
Yes |
| installed-hdd |
No Storage Installed |
| m-2 |
(2) M.2 2280/22110 PCIe4.0 x4 ports |
| pci-express |
(1) PCIe 4.0 x16 slot from CPU support FHHL PCIe card |
| first-lan |
(2) 10GBase-T Ethernet Ports (Intel X710AT2)*JLAN1,2 supports NCSI |
| max-lan-speed |
10 Gigabit |
| 2-5-bays |
(2) Internal 2.5" drive bays support SATA 2.0 |
| hot-swap-bays |
(4) Hot-swap 3.5”/2.5" drive bays support SATA 3.0 |
| front-usb |
(2) USB3.2 Gen1 Type-A Ports |
| com |
(1) COM DB9 Port |
| vga |
(1) VGA D-Sub Port |
| rear-usb |
(4) USB3.2 Gen1 Type-A Ports |
| rj45 |
(2) 10GBase-T Ethernet Ports(1) 1000Base-T Dedicated Server Management Port |
| other-ports |
Front(1) System Power Button(1) UID Button(1) UID LED(5) Status LEDs: Power/Fault/HDD/(2)LANRear(1) UID LED Button |
| max-power |
(1+1) 450W Redundant PSU 80+ Platinum |
| fans |
(1) Vapor chamber air cooling module for max. 105W CPU(4) 4028 system FANs |
| temperature |
System Operating Temperature : 0°C ~ 35°CNon-operating Temperature : -20°C ~ 70°C |
| humidity |
Non-operating Relative Humidity : 5% ~ 85% (non-condensing) |
| dimensions |
438.5mm(17.26") Wx 43.5mm(1.71")H x 547.6mm(21.56")D |
| package-contents |
(1) 1U Barebone S1102-01(1) Quick guide(1) Slide rail Kits(1) Vapor chamber air cooling module(4) Power cables |
| first-listed-on-newegg |
May 16 ,2024 |
