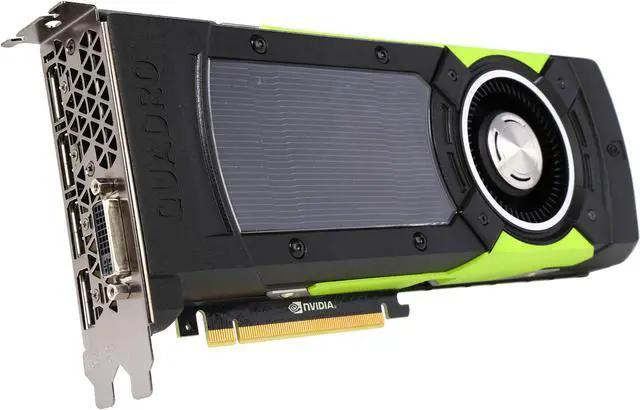

PNY Quadro M6000 VCQM6000-PB 12GB 384-bit GDDR5 PCI Express 3.0 x16 10.5″ x 4.4″, Dual Slot Graphics Card – Pappy Mall

3D Graphics Architecture- Scalable geometry architecture- Hardware tessellation engine- NVIDIA GigaThread engine with dual copy engines- Shader Model 5.0 (OpenGL 4.5 and DirectX 12)- Up to 16K x 16K texture and render processing- Transparent multisampling and super sampling- 16x angle independent anisotropic filtering- 128-bit floating point performance- 32-bit per component floating point texture filtering and blending- 64X full scene antialiasing- FXAA and TXAA full scene antialiasing- Decode acceleration for MPEG-2

MPEG-4 Part 2 Advanced Simple Profile

H.264

MVC

VC1

DivX (version 3.11 and later)

and Flash (10.1 and later)- Dedicated H.264 encoder- Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback)- NVIDIA GPU Boost automatically adjusts the GPU engine throughput to maximize application performance.Parallel Computing Capabilities- SMX architecture (streaming multi-processor design that delivers greater processing and efficiency)- HyperQ (allows multiple CPU cores to simultaneously utilize a single M6000 GPU to execute independent compute kernels)- Dynamic Parallelism (GPU dynamically spans new threads without going back to the CPU)- API support including: CUDA C

CUDA C++

DirectCompute 5.0

OpenCL

Java

Python

and Fortran- NVIDIA Parallel Data Cache hierarchy (per SM L1 and unified L2 caches)- Error-Correction Code (ECC) memory on graphics memory- 96KB of RAM (dedicated shard memory per SM)Advanced Display Features- 30-bit color (10-bit per each red

green and blue channel)- Support for any combination of four connected displays- DisplayPort 1.2 (supporting resolutions such as 4096 x 2160 at 60 Hz)- DVI-I Dual-Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz)- DVI-D Dual-Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz)- Internal 400MHz DAC DVI-I output (analog display up to 2048 x 1536 at 85Hz)
