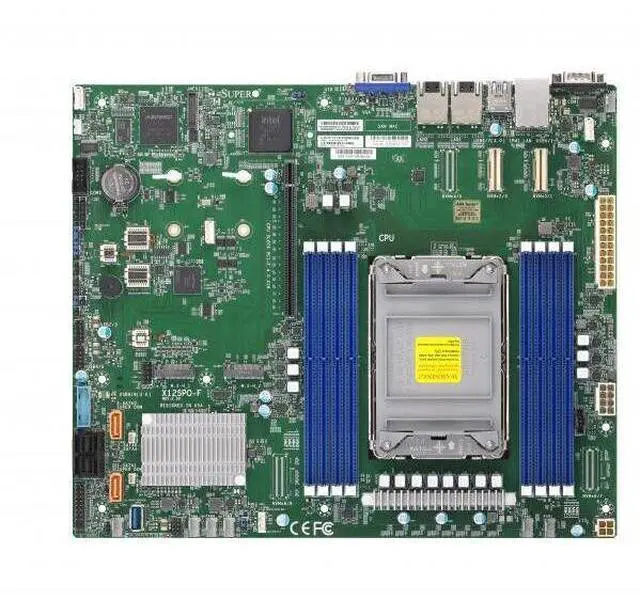

SUPERMICRO MBD-X12SPO-F ATX Server Motherboard – Newegg.com – Pappy Mall
$480.57
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| brand |
SUPERMICRO |
|---|---|
| model |
MBD-X12SPO-F |
| cpu-socket-type |
Single Socket LGA-4189 (Socket P+) supported |
| cpu-type |
Supports 3rd Gen Intel Xeon Scalable processors |
| north-bridge |
Intel C621A |
| number-of-ddr4-slots |
8 x 288-pin |
| ddr4-standard |
DDR4 3200 |
| maximum-memory-supported |
Up to 2TB 3DS ECC RDIMM ,DDR4-3200MHz ,Up to 2TB 3DS ECC LRDIMM ,DDR4-3200MHzUp to 2TB Intel Optane Persistent Memory ,in 8 DIMM slots |
| ecc-supported |
Yes |
| pci-express-4-0-x16 |
1 |
| sata |
Intel C621A controller for 10 SATA3 (6 Gbps) ports |
| sata-raid |
0/1/5/10 |
| m-2 |
M.2 Interface: 2 SATA/PCI-E 3.0 x4Form Factor: 2280 ,22110Key: M-Key |
| onboard-video-chipset |
ASPEED AST2600 BMC |
| lan-chipset |
Intel I350 |
| lan-speed |
10/100/1000Mbps |
| max-lan-speed |
2 x 1Gbps |
| back-i-o-ports |
2 x RJ45 Ethernet LAN ports3 x USB 3.2 Gen1 ports2 x USB 2.01 x COM Port1 x VGA port |
| onboard-usb |
2 x USB 3.0 + 4 x USB 2.0 |
| other-connectors |
1 x COM PortTPM Header |
| features |
BIOS Type: AMI UEFIBIOS Features:ACPI 6.2SMBIOS 3.0 or laterUEFI 2.7Software : Intel Node Manager ,IPMI2.0 ,KVM with dedicated LAN ,SPM ,SSM ,SUM ,SuperDoctor 5 ,WatchdogPower Configurations:ACPI Power ManagementCPU thermal trip support for processor protectionPower-on mode for AC power recoveryVoltage: +1.8V ,+12V ,+3.3V ,+5V ,+5V standby ,3.3V standby ,7-fan status ,Chassis intrusion header ,HT ,Monitors CPU voltages ,System temperature ,VBATTemperature: PECI ,CPU thermal trip supportLED: CPU ,System Overheat LED ,UID/Remote UID ,Suspend static indicator LEDOther Features: ACPI power management ,ATX Power connector ,Chassis intrusion detection ,Chassis intrusion header ,RoHS ,RoT ,UID ,WOL |
| form-factor |
ATX |
| dimensions-w-x-l |
12.00" x 10.00" |
| package-contents |
1 x Motherboard (X12SPO-F Motherboard)1 x QRG (Motherboard Quick Reference Guide)2 x I/O Cables (57.5 cm SATA FLAT S-S PBF)1 x I/O Shield (STD I/O Shield for X12SPO-F with EMI Gasket) |
| first-listed-on-newegg |
March 11 ,2025 |
