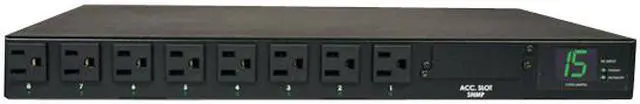

Tripp Lite Metered PDU with ATS, 15A, 8 Outlets (5-15R), 120V, 2 5-15P, 100 – 127 V Input, 2 12 ft. Cords, 1U Rack-Mount Power, TAA (PDUMH15AT) – Pappy Mall
$746.80
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| best-seller-ranking |
#63 in Power Distribution Unit |
|---|---|
| brand |
Tripp Lite |
| model |
PDUMH15AT |
| type |
Metered |
| rack-size |
1U |
| style |
Rackmount |
| front-panel-leds |
8 front panel LEDs display power on ,off status for each outlet ,plus 2 additional LEDs to indicate input power status for primary and secondary inputs |
| certifications |
Tested to UL 60950-1 (USA) ,CSA (Canada) ,Class A (Emissions) ,NOM (Mexico) ,RoHS compliant ,TAA compliant |
| rohs |
Yes |
| input-voltage |
100 ,120 ,127V |
| maximum-input-current |
15A |
| input-connectors |
2 x NEMA 5-15P |
| cord-length |
12 ft |
| output-voltage |
100 ,120 ,127V |
| output-frequency |
60 Hz |
| output-connectors |
8 x 5-15R |
| operating-relative-humidity |
Up to 95% (non-condensing) |
| features |
120V 15A metered PDU system with Automatic Transfer Switch (ATS)Dual input cords ,one attached (primary) and one optional-use detachable cord (secondary)Included cordsets support 5-15P plug-in connectionFront panel digital ammeter displays power consumption in amps8 built-in NEMA 5-15R output receptaclesOptional ATS function enables setup for hot-swappable UPS maintenance bypass ,dual UPS protection or dual AC input redundancy for critical single-corded network hardware (ATS function requires the use of a full time sine wave online UPS ,like Tripp Lite's SmartOnline series)ATS functionality is supported by any two 120V AC power sources ,regardless of phase angle ,to offer support for a variety of unique redundant power applicationsSuper-fast switchover between primary and secondary power sources occurs within 2-7 millisecondsBuilt-in card slot supports optional SNMPWEBCARD for permanent upgrade to a switched & monitored PDU systemSNMPWEBCARD can also be used as a configuration tool to custom program PDU power-on and power-off sequences with user-specified time delays in response to loss and restoration of primary input powerSmall 1U rackmount format installs in only one rack space with a maximum installed depth of 14.50" |
| dimensions |
1.75" x 17.50" x 14.50" |
| weight |
11.00 lbs. |
| first-listed-on-newegg |
July 10 ,2021 |
