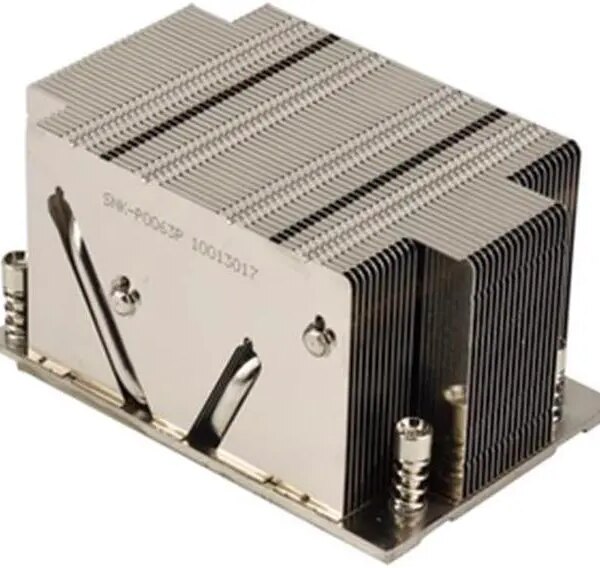

Supermicro FN SNK-P0063P H11 AMD EPYC 7000 Series CPU Heat Sink Socket SP3 – Pappy Mall
In stock

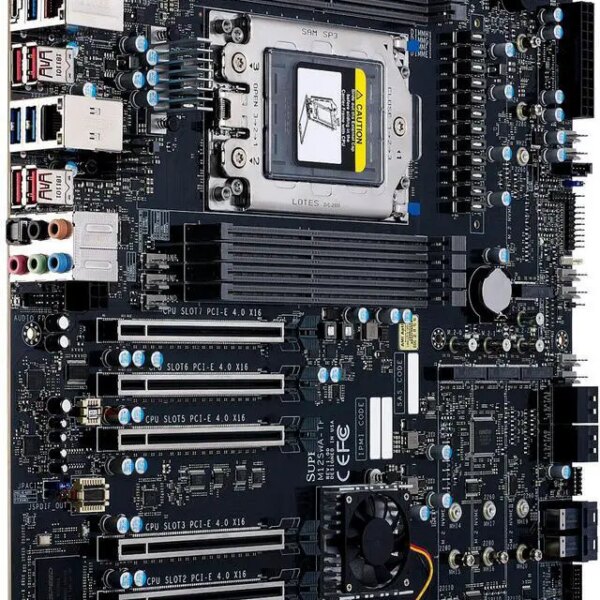

SUPERMICRO M12SWA-TF Extended ATX Server Motherboard – Pappy Mall
In stock
| best-seller-ranking |
#16 in Server Motherboards |
|---|---|
| brand |
SUPERMICRO |
| model |
M12SWA-TF |
| cpu-socket-type |
Socket sWRX8 |
| cpu-type |
Supports AMD Ryzen Threadripper PRO 5000WX/3000WX Series Processor |
| north-bridge |
AMD WRX80 |
| number-of-ddr4-slots |
8 x 288-pin |
| ddr4-standard |
DDR4 3200 |
| maximum-memory-supported |
Supports up to 256GB Unbuffered non-ECC UDIMM or 2TB Registered ECC DDR 3200MHz SDRAM |
| channel-supported |
Eight Channel |
| ecc-supported |
Yes |
| registered |
Yes |
| pci-express-4-0-x16 |
6 |
| other-slots |
Interface: 2 U.2 SocketsSoftware RAID 0,1 support |
| sata |
4 x SATA 6.0Gb/s |
| sata-raid |
0/1/5/10 |
| m-2 |
Interface: 4 PCI-E 4.0 x4Form factor: 2280 ,22110Key: M-keySoftware RAID 0,1,5,10 support |
| onboard-video-chipset |
ASPEED AST2600 BMC |
| audio-chipset |
ALC4050H + ALC1220 |
| audio-channels |
7.1 Channels |
| lan-chipset |
Marvell AQC113C 10Gb controller |
| lan-speed |
10Gbps |
| second-lan-chipset |
Intel I210-AT |
| second-lan-speed |
10Gbps |
| max-lan-speed |
10Gbps |
| com |
1 |
| video-ports |
D-Sub |
| rj45 |
1 x RJ45 10GBase-T LAN port1 x RJ45 GbE LAN port (shared with IPMI) |
| usb-3-0 |
3 x USB 3.0 |
| usb-3-1 |
5 x USB 3.1 (Front Panel 1 Type-C) |
| usb-3-2 |
1 x USB 3.2 Type-C |
| form-factor |
Extended ATX |
| dimensions-w-x-l |
12" x 13" |
| first-listed-on-newegg |
March 02 ,2021 |
Supermicro MB MBDH12SSLiB AMD EPYC 7002 SP3 2T DDR4 PXIE SATA ATX Bulk Packaging – Newegg.com – Pappy Mall
In stock
Supermicro MB MBDH12SSLNTB Socket SP3 AMD EPYC7002 Max2TB DDR4 PCIE ATX – Bulk packaging – OEM – Pappy Mall
In stock
SUPERMICRO MBD-H12DSi-N6-O Extended ATX Server Motherboard – Pappy Mall
In stock
| best-seller-ranking |
#17 in Server Motherboards |
|---|---|
| brand |
SUPERMICRO |
| model |
MBD-H12DSi-N6-O |
| cpu-socket-type |
Socket SP3 |
| cpu-type |
Supports AMD EPYC 7003/7002 Series Processors(The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache Technology requires BIOS version 2.3 or newer) |
| number-of-processor-support |
2 |
| number-of-ddr4-slots |
16 x 288-pin |
| ddr4-standard |
DDR4 3300 |
| maximum-memory-supported |
4TB |
| channel-supported |
Eight Channel |
| ecc-supported |
Yes |
| pci-express-4-0-x16 |
3 x PCI-E 4.0 x16 slots |
| pci-express-x8 |
3 x PCI-E 4.0 x8 slots |
| m-2 |
Interface: 1 PCI-E 4.0 x4Form Factor: 2280 ,22110Key: M-key |
| onboard-video-chipset |
ASPEED AST2600 BMC |
| lan-chipset |
Broadcom BCM5720L |
| lan-speed |
10/100/1000Mbps |
| max-lan-speed |
1Gbps |
| back-i-o-ports |
2 x USB 2.0 ports (rear)4 x USB 3.0 ports (2 rear ,2 headers)1 x VGA port2 x 10GBase-T LAN ports1 x RJ45 Dedicated IPMI LAN port |
| form-factor |
Extended ATX |
| dimensions-w-x-l |
12" x 13.05" |
| first-listed-on-newegg |
December 08 ,2021 |

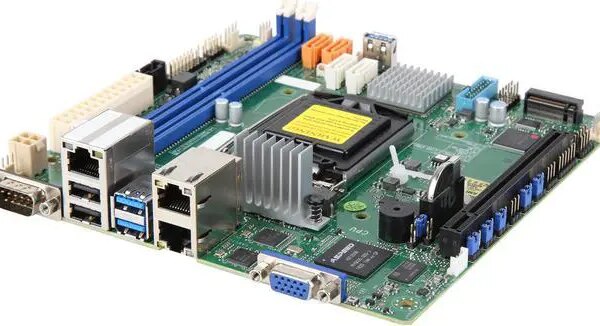

SUPERMICRO MBD-X11SCL-IF-O Mini ITX Server Motherboard – Pappy Mall
In stock
| best-seller-ranking |
#79 in Server Motherboards |
|---|---|
| brand |
SUPERMICRO |
| model |
MBD-X11SCL-IF-O |
| cpu-socket-type |
LGA 1151 |
| cpu-type |
Supports:Intel Xeon E-2100 ProcessorIntel Xeon E-2200 Processor8th/9th Generation Intel Core i3 ,Pentium ,Celeron Processor |
| north-bridge |
Intel C242 |
| ddr4-standard |
DDR4 2667 ,2400 ,2133 MHz ECC SDRAM 72-bit |
| maximum-memory-supported |
Up to 64GB Unbuffered ECC UDIMM ,DDR4-2666 MHz ,in 2 DIMM slots |
| pci-express-3-0-x16 |
1 x PCI-E 3.0 x16 (in x16 slot) |
| sata |
4 x SATA 6.0Gb/s |
| sata-raid |
0/1/5/10 |
| onboard-video-chipset |
Aspeed AST2500 BMC |
| lan-chipset |
Intel I210 |
| lan-speed |
10/100/1000Mbps |
| second-lan-chipset |
Intel I210 |
| second-lan-speed |
10/100/1000Mbps |
| max-lan-speed |
2 x 1Gbps |
| com |
1 |
| rj45 |
2 x RJ451 x IPMI |
| usb-1-1-2-0 |
2 x USB 2.0 |
| usb-3-1 |
2 x USB 3.1 |
| features |
Single socket H4 (LGA 1151) supports Intel Xeon processor E-2100 ,Intel 8th Gen. Core i3 series ,Intel Celeron and Intel PentiumIntel C242 chipsetUp to 64GB DDR4 2666 MHz ECC UDIMM ,2 x DIMM slotsDual GbE LAN with Intel i210-AT4 x SATA3 (6 Gbps) ,RAID 0 ,1 ,5 ,10M.2 NGFF connectorM.2 Interface: 1 x PCI-E 3.0 x4Form Factor: 2280Key: M-Key Double Height Connector |
| form-factor |
Mini ITX |
| dimensions-w-x-l |
6.7" x 6.7" |
| first-listed-on-newegg |
February 19 ,2019 |

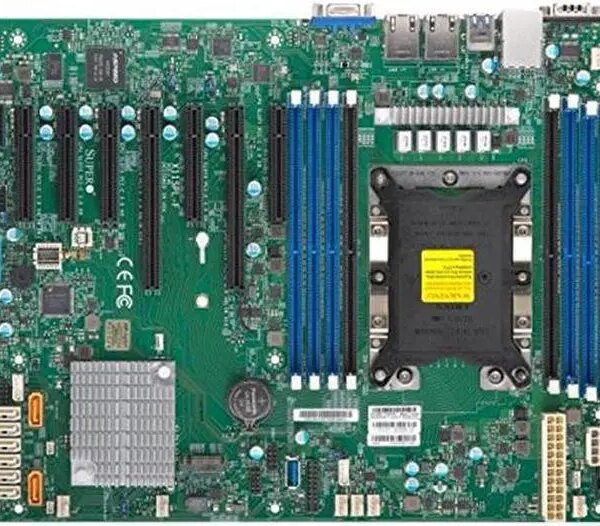

SUPERMICRO MBD-X11SPL-F-O ATX Server Motherboard – Pappy Mall
In stock
| brand |
SUPERMICRO |
|---|---|
| model |
MBD-X11SPL-F-O |
| cpu-socket-type |
LGA 3647 |
| cpu-type |
Supports 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors |
| north-bridge |
Intel C621 |
| ddr4-standard |
DDR4 2666 MHz |
| maximum-memory-supported |
Up to 256GB RDIMM ,512GB LRDIMM ,1TB LRDIMM 3DS. Support APE |
| ecc-supported |
Yes |
| pci-express-3-0-x16 |
7 x PCIe 3.0 slots: 4 x8 ,2 x8 (in x16) ,1 x4 (in x8) |
| other-slots |
1 x M.2 in 2280 ,22110 (PCIe 3.0 x4 & SATA3) |
| sata |
8 x SATA 6.0Gb/s |
| sata-raid |
0/1/10/5 |
| lan-chipset |
Intel I210 |
| lan-speed |
10/100/1000Mbps |
| second-lan-chipset |
Intel I210 |
| second-lan-speed |
10/100/1000Mbps |
| max-lan-speed |
2 x 1Gbps |
| com |
1 |
| usb-1-1-2-0 |
2 x USB 3.0 + 2 x USB 2.0 |
| usb-3-0 |
2 x USB 3.0 |
| form-factor |
ATX |
| dimensions-w-x-l |
12.0" x 9.6" |
| first-listed-on-newegg |
December 08 ,2020 |

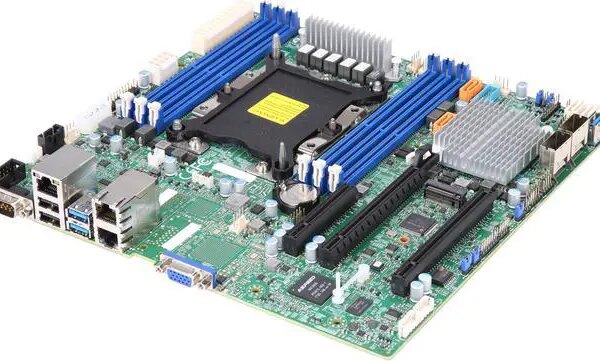

SUPERMICRO MBD-X11SPM-F-O Micro ATX Server Motherboard – Pappy Mall
In stock
| best-seller-ranking |
#71 in Server Motherboards |
|---|---|
| brand |
SUPERMICRO |
| model |
MBD-X11SPM-F-O |
| cpu-socket-type |
LGA 3647 |
| cpu-type |
Supports 1st ,2nd Gen Intel Xeon Scalable Processors |
| north-bridge |
Intel C621 |
| number-of-ddr4-slots |
6 x 288-pin |
| ddr4-standard |
DDR4 2666 ,2400 ,2133 ,1866 ,1600 MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM ,LRDIMM |
| maximum-memory-supported |
Up to 768GB ECC 3DS LRDIMMUp to 384GB ECC LRDIMMUp to 192GB ECC RDIMM |
| ecc-supported |
Yes |
| pci-express-3-0-x16 |
2 |
| pci-express-x8 |
1 x PCI-E 3.0 x8 |
| other-slots |
1 x PCI-E 3.0 x8 |
| sata |
12 x SATA 6.0Gb/s |
| sata-raid |
0/1/5/10 |
| onboard-video-chipset |
Aspeed AST2500 BMC |
| lan-chipset |
Marvel 88E1512 |
| lan-speed |
10/100/1000Mbps |
| second-lan-chipset |
Marvel 88E1512 |
| second-lan-speed |
10/100/1000Mbps |
| max-lan-speed |
2 x 1Gbps |
| com |
1 |
| video-ports |
1 x VGA port |
| rj45 |
2 x 1 GbE LAN ports |
| usb-1-1-2-0 |
2 x USB 2.0 |
| usb-3-0 |
2 x USB 3.0 |
| features |
Intel Xeon Scalable Processors ,Single Socket P (LGA 3647) supported ,CPU TDP support 165WIntel C621 chipsetUp to 768GB ECC 3DS LRDIMM ,up to DDR4-2666 MHz ,6 x DIMM slotsExpansion slots: 2 x PCI-E 3.0 x16 ,1 x PCI-E 3.0 x8 (in x8)2 x GbE LAN ports12 x SATA3 (6 Gbps) via C621Supports 12V DC power input4-pin Internal power connector5 x USB 3.0 (2 rear ,1 Type-A ,2 via header) ,6 x USB 2.0 (2 rear ,4 via headers)I/O: 1 x VGA ,2 x COM ,TPM header |
| form-factor |
Micro ATX |
| dimensions-w-x-l |
9.6" x 9.6" |
| first-listed-on-newegg |
January 30 ,2018 |

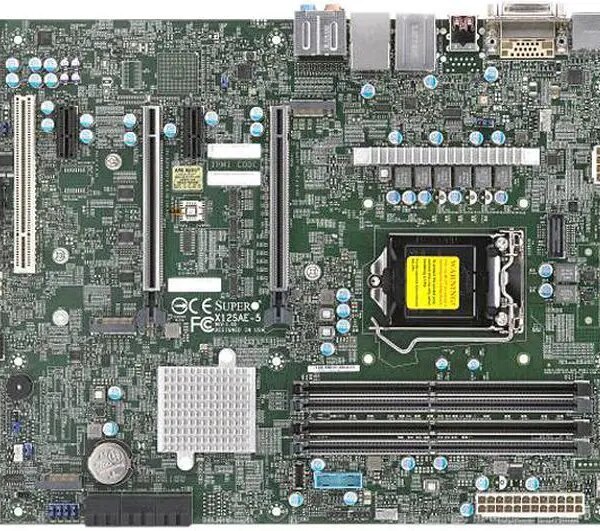

SUPERMICRO MBD-X12SAE-5-O ATX Server Motherboard – Pappy Mall
In stock
| brand |
SUPERMICRO |
|---|---|
| model |
MBD-X12SAE-5-O |
| cpu-socket-type |
LGA 1200 |
| cpu-type |
Supports 11th Generation Intel Core i5/i7/i9 Processors ,Intel Xeon W-1300 Processors |
| north-bridge |
Intel W580 |
| number-of-ddr4-slots |
4 x 288-pin |
| ddr4-standard |
DDR4 3200 |
| maximum-memory-supported |
128GB Unbuffered ECC/non-ECC UDIMM ,DDR4-3200MHz ,in 4 DIMM slots |
| ecc-supported |
Yes |
| pci-express-4-0-x16 |
2 x PCI Express 4.0 x16 (16/NA or 8/8) |
| pci-express-x1 |
2 x PCI Express 3.0 x1 |
| sata |
4 x SATA 6.0Gb/s |
| sata-raid |
0/1/5/10 |
| m-2 |
M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4 ,RAID 0 & 1Form Factor: 2280/22110Key: M-KeyRAID 5 only applied for INTEL Storage Device |
| audio-chipset |
Realtek ALC888S |
| lan-chipset |
Intel I225-V |
| lan-speed |
2.5Gbps |
| second-lan-chipset |
Intel I219-LM |
| second-lan-speed |
10/100/1000Mbps |
| back-i-o-ports |
1 x RJ45 2.5 Gigabit Ethernet LAN port1 x RJ45 Gigabit Ethernet LAN ports2 x USB 2.0 ports (2 via headers)2 x USB 3.2 Gen1 ports (2 via headers)4 x USB 3.2 Gen2 ports (4 Rear Type A)2 x USB 3.2 Gen2x2 ports (1 Type C)1 x DP 1.4a port ,1 HDMI 2.0b port ,1 DVI – D port1 x COM Port (1 header)1 x TPM Header |
| form-factor |
ATX |
| dimensions-w-x-l |
12.0" x 9.6" |
| first-listed-on-newegg |
September 14 ,2021 |

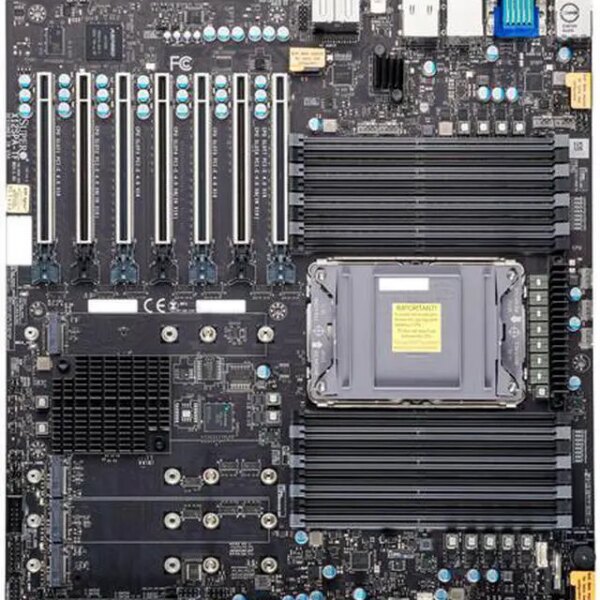

SUPERMICRO MBD-X12SPA-TF-O Extended ATX Server Motherboard – Pappy Mall
In stock
| brand |
SUPERMICRO |
|---|---|
| model |
MBD-X12SPA-TF-O |
| cpu-socket-type |
LGA 4189 |
| cpu-type |
Supports 3rd Gen Intel Xeon Scalable processors ,Intel Xeon W-3300 Processor |
| north-bridge |
Intel C621A |
| number-of-ddr4-slots |
16 x 288-pin |
| ddr4-standard |
DDR4 3200 |
| maximum-memory-supported |
4TB |
| ecc-supported |
Yes |
| pci-express-4-0-x16 |
4 |
| pci-express-x8 |
3 x PCI Express 4.0 x8 (in x16 slot) |
| sata |
8 x SATA 6.0Gb/s |
| sata-raid |
0/1/5/10 |
| m-2 |
M.2 Interface: 4 PCI-E 4.0 x4Form Factor: 2260/2280/22110Key: M-KeyM.2 support to RAID 0,1 ,5 ,10 ,VROC key is required for RAID. |
| onboard-video-chipset |
Aspeed AST2500 |
| lan-chipset |
Intel I210-AT |
| second-lan-chipset |
Marvell AQC113 |
| third-lan-chipset |
Realtek RTL8211F PHY (dedicated IPMI) |
| max-lan-speed |
10Gbps + 1Gbps |
| rj45 |
1 x RJ45 Gigabit Ethernet LAN ports1 x RJ45 10GBase-T ports1 x RJ45 Dedicated IPMI LAN port |
| usb-1-1-2-0 |
2 x USB 2.0 |
| usb-3-0 |
4 x USB 3.2 Gen1 |
| usb-3-1 |
2 x USB 3.2 Gen2 (1 Type A ,1 Type C) |
| usb-3-2 |
1 x USB 3.2 Gen2x2 (1 Type C) |
| onboard-usb |
2 x USB 2.0 (via headers)2 x USB 3.2 Gen 1 (via headers) |
| form-factor |
Extended ATX |
| dimensions-w-x-l |
12" x 13" |
| first-listed-on-newegg |
May 20 ,2021 |

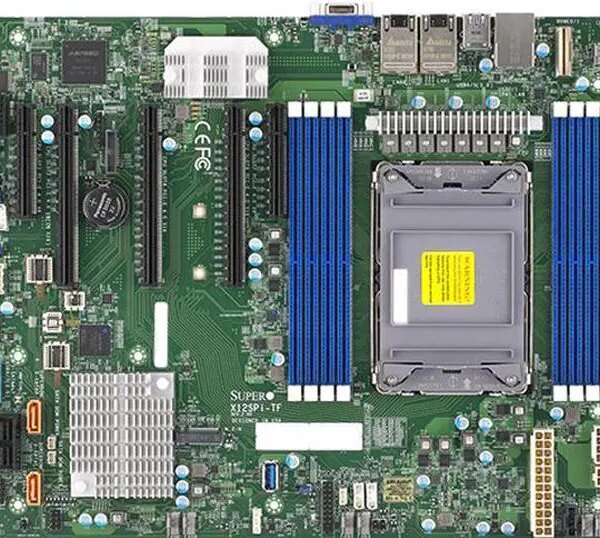

SUPERMICRO MBD-X12SPI-TF-O ATX Server Motherboard – Pappy Mall
In stock
| best-seller-ranking |
#87 in Server Motherboards |
|---|---|
| brand |
SUPERMICRO |
| model |
MBD-X12SPI-TF-O |
| cpu-socket-type |
LGA 4189 |
| cpu-type |
Supports 3rd Gen Intel Xeon Scalable processors |
| north-bridge |
Intel C621A |
| number-of-ddr4-slots |
8 x 288-pin |
| ddr4-standard |
DDR4 3200 |
| maximum-memory-supported |
2TB |
| pci-express-4-0-x16 |
2 |
| pci-express-x8 |
2 x PCI Express 4.0 x81 x PCI Express 4.0 x8 (in x16 slot) |
| sata |
10 x SATA 6.0Gb/s |
| sata-raid |
0/1/5/10 |
| m-2 |
M.2 Interface: 1 SATA/PCI-E 3.0 x4Form Factor: 2280/22110Key: M-Key |
| onboard-video-chipset |
Aspeed AST2600 |
| lan-chipset |
Intel X550 |
| lan-speed |
10Gbps |
| second-lan-chipset |
Intel X550 |
| second-lan-speed |
10Gbps |
| max-lan-speed |
2 x 10Gbps |
| rj45 |
2 x RJ45 |
| usb-1-1-2-0 |
2 x USB 2.0 |
| usb-3-0 |
3 x USB 3.2 Gen 1 ports (2 rear + 1 Type A) |
| onboard-usb |
2 x USB 2.0 via headers2 x USB 3.2 Gen 1 via headers |
| form-factor |
ATX |
| dimensions-w-x-l |
12.1" x 10" |
| first-listed-on-newegg |
June 01 ,2021 |

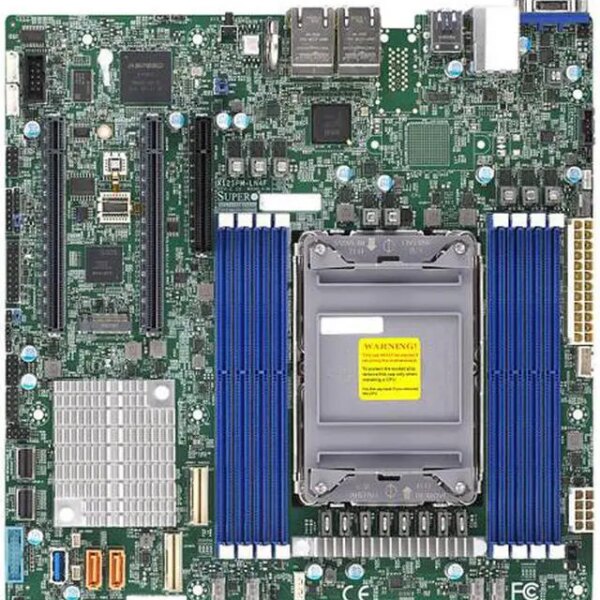

SUPERMICRO MBD-X12SPM-LN4F-O Micro ATX Server Motherboard – Pappy Mall
In stock
| brand |
SUPERMICRO |
|---|---|
| model |
MBD-X12SPM-LN4F-O |
| cpu-socket-type |
Socket P+ |
| cpu-type |
Supports 3rd Gen Intel Xeon Scalable processors |
| north-bridge |
Intel C621A |
| number-of-ddr4-slots |
8 x 288-pin |
| ddr4-standard |
DDR4 3200 |
| maximum-memory-supported |
Up to 2TB 3DS ECC RDIMM ,DDR4-3200MHz ,Up to 2TB 3DS ECC LRDIMM ,DDR4-3200MHzUp to 2TB Intel Optane Persistent Memory 200 Series ,in 8 DIMM slots |
| ecc-supported |
Yes |
| pci-express-4-0-x16 |
2 |
| pci-express-x8 |
1 x PCI Express 4.0 x8 |
| sata |
10 x SATA 6.0Gb/s |
| sata-raid |
0/1/5/10 |
| m-2 |
M.2 Interface: 1 SATA/PCI-E 3.0 x4Form Factor: 2280 ,22110Key: M-Key |
| onboard-video-chipset |
Aspeed AST2600 |
| lan-chipset |
Intel I350-AM4 |
| lan-speed |
10/100/1000Mbps |
| back-i-o-ports |
4 x RJ45 Gigabit Ethernet LAN ports6 x USB 2.0 ports (2 rear + 4 via headers)5 x USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)1 x VGA port1 x COM Port (1 header)TPM Header |
| form-factor |
Micro ATX |
| dimensions-w-x-l |
9.6" x 9.6" |
| first-listed-on-newegg |
September 08 ,2021 |
SUPERMICRO MBD-X12SPO-F ATX Server Motherboard – Newegg.com – Pappy Mall
In stock
| brand |
SUPERMICRO |
|---|---|
| model |
MBD-X12SPO-F |
| cpu-socket-type |
Single Socket LGA-4189 (Socket P+) supported |
| cpu-type |
Supports 3rd Gen Intel Xeon Scalable processors |
| north-bridge |
Intel C621A |
| number-of-ddr4-slots |
8 x 288-pin |
| ddr4-standard |
DDR4 3200 |
| maximum-memory-supported |
Up to 2TB 3DS ECC RDIMM ,DDR4-3200MHz ,Up to 2TB 3DS ECC LRDIMM ,DDR4-3200MHzUp to 2TB Intel Optane Persistent Memory ,in 8 DIMM slots |
| ecc-supported |
Yes |
| pci-express-4-0-x16 |
1 |
| sata |
Intel C621A controller for 10 SATA3 (6 Gbps) ports |
| sata-raid |
0/1/5/10 |
| m-2 |
M.2 Interface: 2 SATA/PCI-E 3.0 x4Form Factor: 2280 ,22110Key: M-Key |
| onboard-video-chipset |
ASPEED AST2600 BMC |
| lan-chipset |
Intel I350 |
| lan-speed |
10/100/1000Mbps |
| max-lan-speed |
2 x 1Gbps |
| back-i-o-ports |
2 x RJ45 Ethernet LAN ports3 x USB 3.2 Gen1 ports2 x USB 2.01 x COM Port1 x VGA port |
| onboard-usb |
2 x USB 3.0 + 4 x USB 2.0 |
| other-connectors |
1 x COM PortTPM Header |
| features |
BIOS Type: AMI UEFIBIOS Features:ACPI 6.2SMBIOS 3.0 or laterUEFI 2.7Software : Intel Node Manager ,IPMI2.0 ,KVM with dedicated LAN ,SPM ,SSM ,SUM ,SuperDoctor 5 ,WatchdogPower Configurations:ACPI Power ManagementCPU thermal trip support for processor protectionPower-on mode for AC power recoveryVoltage: +1.8V ,+12V ,+3.3V ,+5V ,+5V standby ,3.3V standby ,7-fan status ,Chassis intrusion header ,HT ,Monitors CPU voltages ,System temperature ,VBATTemperature: PECI ,CPU thermal trip supportLED: CPU ,System Overheat LED ,UID/Remote UID ,Suspend static indicator LEDOther Features: ACPI power management ,ATX Power connector ,Chassis intrusion detection ,Chassis intrusion header ,RoHS ,RoT ,UID ,WOL |
| form-factor |
ATX |
| dimensions-w-x-l |
12.00" x 10.00" |
| package-contents |
1 x Motherboard (X12SPO-F Motherboard)1 x QRG (Motherboard Quick Reference Guide)2 x I/O Cables (57.5 cm SATA FLAT S-S PBF)1 x I/O Shield (STD I/O Shield for X12SPO-F with EMI Gasket) |
| first-listed-on-newegg |
March 11 ,2025 |
SUPERMICRO MBD-X12SPO-NTF-O ATX Server Motherboard – Pappy Mall
In stock
| best-seller-ranking |
#99 in Server Motherboards |
|---|---|
| brand |
SUPERMICRO |
| model |
MBD-X12SPO-NTF-O |
| cpu-socket-type |
LGA 4189 |
| cpu-type |
Supports 3rd Gen Intel Xeon Scalable processors |
| north-bridge |
Intel C621A |
| number-of-ddr4-slots |
8 x 288-pin |
| ddr4-standard |
DDR4 3200 |
| maximum-memory-supported |
2TB |
| ecc-supported |
Yes |
| pci-express-4-0-x16 |
1 |
| sata |
10 x SATA 6.0Gb/s |
| sata-raid |
0/1/5/10 |
| m-2 |
M.2 Interface: 2 SATA/PCI-E 3.0 x4Form Factor: 2280/22110Key: M-Key |
| onboard-video-chipset |
Aspeed AST2600 |
| lan-chipset |
Intel X550 |
| lan-speed |
10Gbps |
| second-lan-chipset |
Intel X550 |
| second-lan-speed |
10Gbps |
| max-lan-speed |
2 x 10Gbps |
| usb-1-1-2-0 |
2 x USB 2.0 |
| usb-3-0 |
3 x USB 3.2 Gen1 (2 rear + 1 Type A) |
| onboard-usb |
2 x USB 2.0 (via headers)2 x USB 3.2 Gen 1 (via headers) |
| form-factor |
ATX |
| dimensions-w-x-l |
12" x 10" |
| first-listed-on-newegg |
May 27 ,2021 |
SUPERMICRO MBD-X12STL-F-O Micro ATX Server Motherboard – Newegg.com – Pappy Mall
In stock
| best-seller-ranking |
#59 in Server Motherboards |
|---|---|
| brand |
SUPERMICRO |
| model |
MBD-X12STL-F-O |
| cpu-socket-type |
LGA 1200 |
| cpu-type |
Supports 10th Generation Intel Pentium Processor ,Intel Xeon E-2300 Processor |
| number-of-processor-support |
1 |
| north-bridge |
Intel C252 |
| number-of-ddr4-slots |
4 x 288-pin |
| ddr4-standard |
DDR4 3200 |
| maximum-memory-supported |
128GB |
| ecc-supported |
Yes |
| pci-express-4-0-x16 |
1 |
| pci-express-x8 |
1 x PCI Express 4.0 x81 x PCI Express 4.0 x4 (in x8 Slot) |
| pci-express-x4 |
1 x PCI-E 3.0 x2 (in x4 slot) |
| sata |
6 x SATA 6.0Gb/s |
| m-2 |
M.2 Interface: 1 PCI-E 3.0 x4Form Factor: 2280/22110Key: M-Key |
| onboard-video-chipset |
ASPEED AST2600 BMC |
| lan-chipset |
Intel I210 |
| lan-speed |
10/100/1000Mbps |
| max-lan-speed |
1Gbps |
| back-i-o-ports |
2 1GbE LAN ports4 USB 2.0 port(s) (2 rear ,2 via header)5 USB 3.2 Gen1 port(s) (2 via header ,2 rear ,1 type A) 1 VGA D-Sub Connector port(s)2 COM Port(s) (1 header ,1 rear) |
| form-factor |
Micro ATX |
| dimensions-w-x-l |
9.6" x 9.6" |
| first-listed-on-newegg |
December 12 ,2022 |
Supermicro MBD-X13DEI-T-O, Intel LGA-4677 Dual Socket EATX Server Motherboard – Pappy Mall
In stock
| best-seller-ranking |
#89 in Server Motherboards |
|---|---|
| brand |
SUPERMICRO |
| model |
MBD-X13DEI-T-O |
| cpu-socket-type |
LGA 4677 |
| cpu-type |
4th Gen Intel Xeon Scalable ,5th Gen Intel Xeon Scalable |
| number-of-processor-support |
2 |
| cpu-features |
Up to 350W TDP |
| north-bridge |
Intel C741 |
| memory-slots |
16 x DDR5 288-pin |
| memory-standard |
DDR5 5600 |
| maximum-memory-supported |
4TB |
| ecc-supported |
Yes |
| pci-express-5-0-x16 |
4 x PCIe 5.0 x16 |
| pci-express-x8 |
2 x PCIe 5.0 x8 |
| sata |
10 x SATA 6.0Gb/s |
| sata-raid |
0/1/5/10 |
| m-2 |
M.2 Interface: 2 PCIe 4.0 x2Form Factor: 2280/22110Key: M-Key |
| onboard-video-chipset |
Aspeed AST2600 |
| lan-chipset |
Broadcom BCM57416 |
| lan-speed |
10Gbps |
| max-lan-speed |
2 x 10Gbps |
| back-i-o-ports |
1 x COM (Serial Port) ,1 x D-Sub ,1 x USB 2.0/1.1 ,2 x LAN (RJ45) ,4 x USB 3.0 |
| other-connectors |
3 MCIO PCIe 5.0 x8 |
| bios-feature |
AMI 32MB AMI UEFIACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2 |
| form-factor |
Extended ATX |
| dimensions-w-x-l |
12.1" x 13.05" |
| first-listed-on-newegg |
April 04 ,2025 |
SUPERMICRO MBD-X13SAE-O ATX Server Motherboard – Pappy Mall
In stock
| best-seller-ranking |
#46 in Server Motherboards |
|---|---|
| brand |
SUPERMICRO |
| model |
MBD-X13SAE-O |
| cpu-socket-type |
LGA 1700 |
| cpu-type |
Supports 12th Generation Intel Core i9 ,Core i7 ,Core i5 ,Core i3 Processor |
| number-of-processor-support |
1 |
| north-bridge |
Intel W680 |
| memory-slots |
4 x DDR5 288-pin |
| memory-standard |
DDR5 4400 |
| maximum-memory-supported |
128GB |
| pci-express-5-0-x16 |
2 PCI-E 5.0 x16 slots (16/NA or 8/8) |
| pci-express-x4 |
2 PCI-E 3.0 x4 |
| sata |
8 x SATA 6.0Gb/s |
| m-2 |
M.2 Interface: 3 PCI-E 4.0 x4 ,RAID 0 ,1 ,5Form Factor: 2280Key: M-Key |
| back-i-o-ports |
4 USB 2 port(s) (2 via header ,2 rear)3 USB 3.2 Gen1 port(s) (2 via header ,1 Vertical)3 USB 3.2 Gen2 port(s) (3 rear type A)2 USB 3.2 Gen2x2 port(s) (1 rear type C ,1 via header)1 DVI – D port(s)1 DP 1.4a port(s)1 HDMI 2.1 port(s)1 COM Port(s) (1 header)1 TPM Header |
| form-factor |
ATX |
| dimensions-w-x-l |
12.0" x 9.6" |
| first-listed-on-newegg |
July 25 ,2022 |
